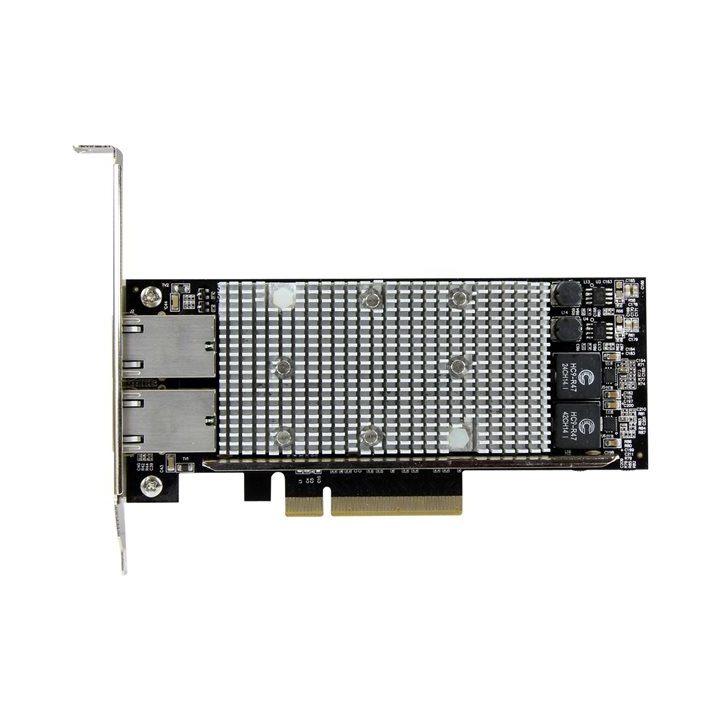

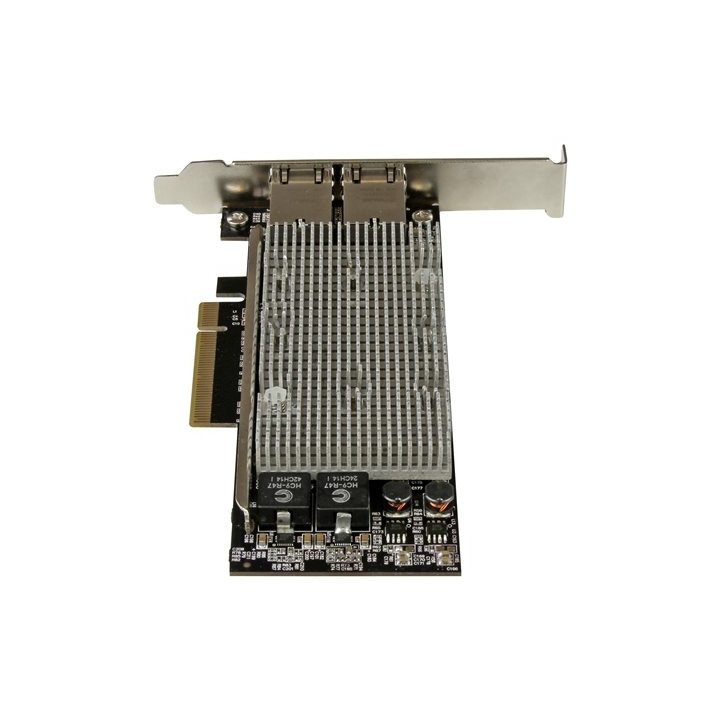

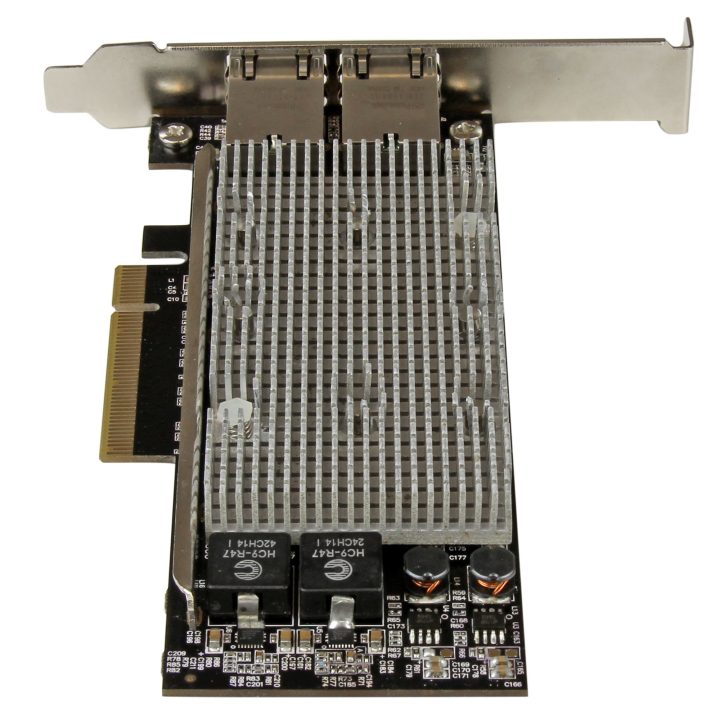

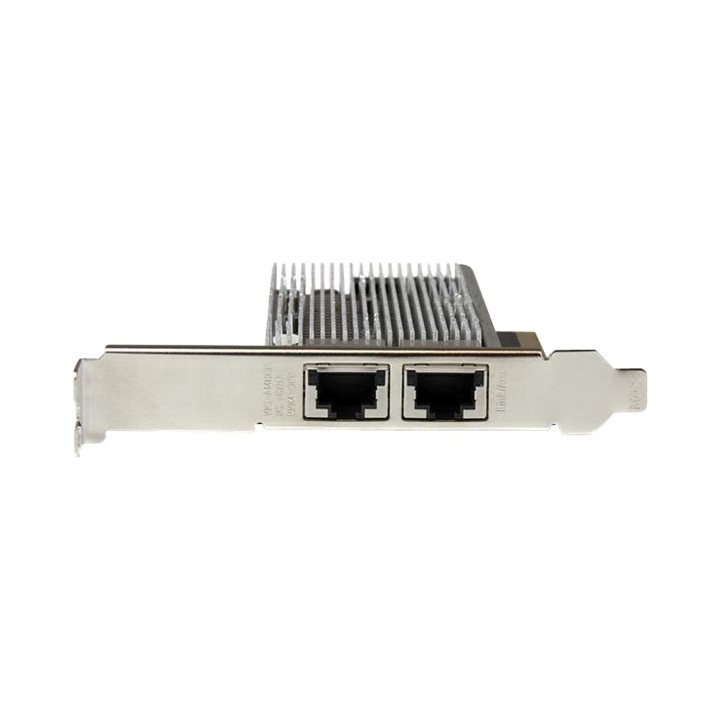

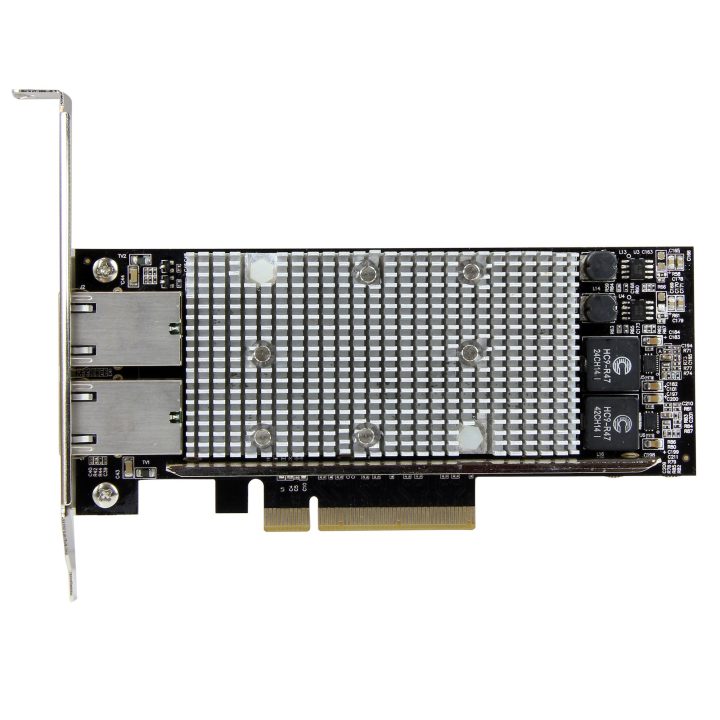

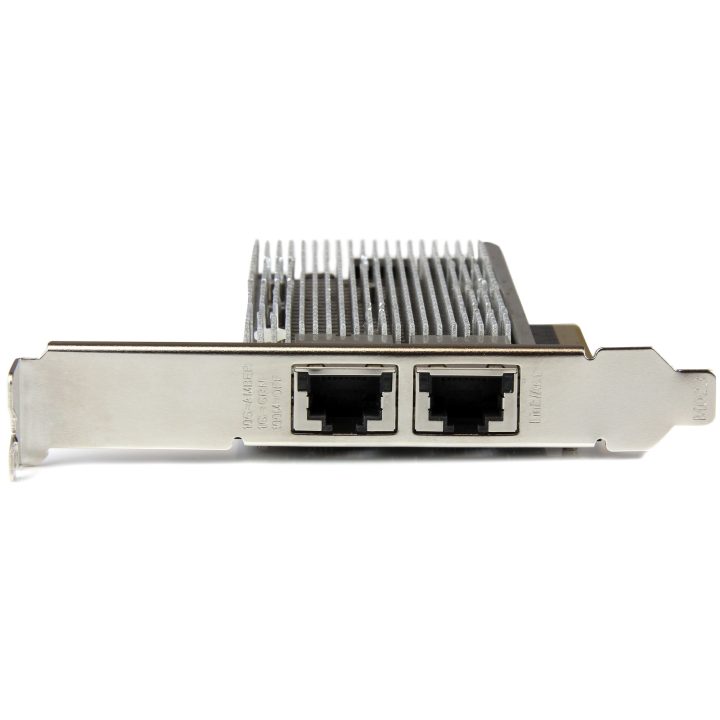

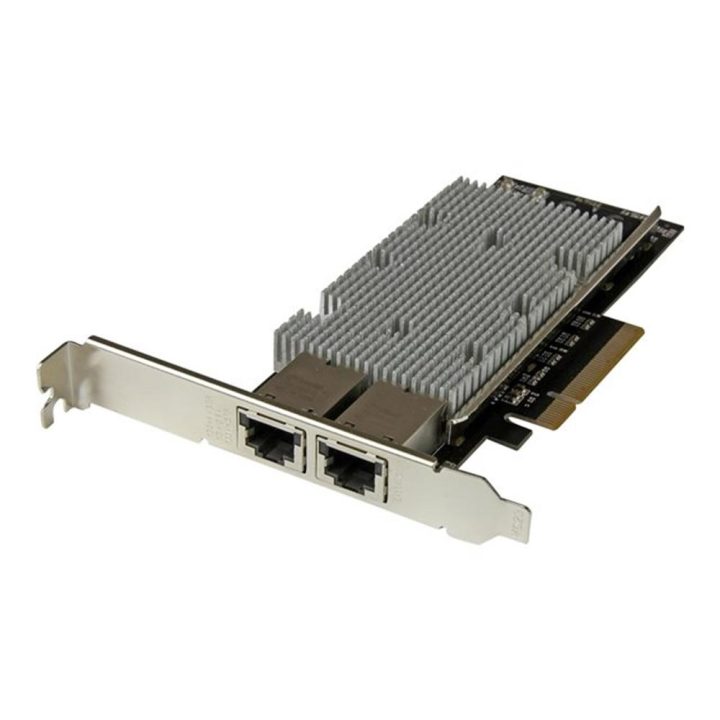

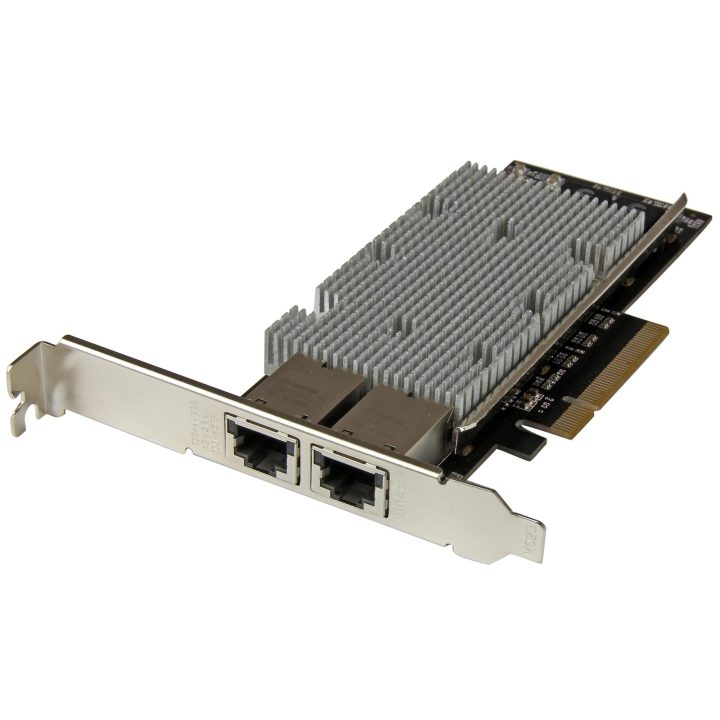

StarTech.com PCI Express Network Adapter Card 10GBase-T Ethernet with 2 RJ45 Ports Intel x540 Chipset

This internal network card installs in a PCI Express slot to add two 10 Gbps RJ45 Ethernet ports to servers or workstations. It uses the Intel X540 chipset to manage high-speed connections, supporting speeds of 100, 1000, and 10G per port. The architecture allows for a total capacity of 20,000 Mbit/s, combining transmission and reception on both ports simultaneously.

The device is compatible with Linux operating systems and meets IEEE 802.3/u/ab standards. Advanced features include VLAN tagging, jumbo frame support, Auto-MDIX, Intel virtualization, and PXE network boot. It requires a four-lane PCI Express slot (x8 or higher) to operate. Its dimensions are 163 mm deep, 120 mm high, and 20 mm wide, with a weight of 0.16 kg and a black and stainless steel finish.

• Two RJ45 ports with 10GBase-T support
• Integrated Intel X540 chipset
• Maximum aggregate speed of 20,000 Mbit/s
• Linux compatibility and IEEE 802.3 standards
• Support for PXE, VLAN, and jumbo frames
• Requires PCI Express x8 or higher slot
