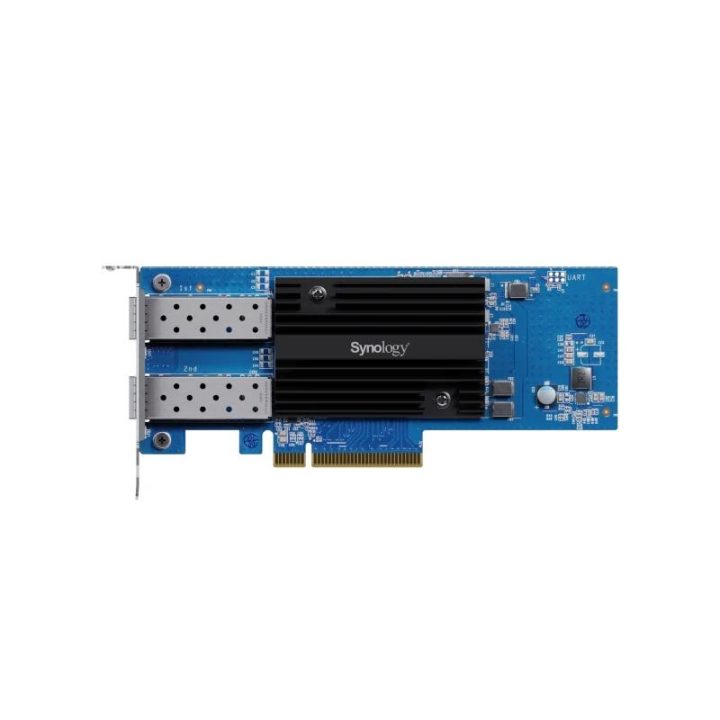

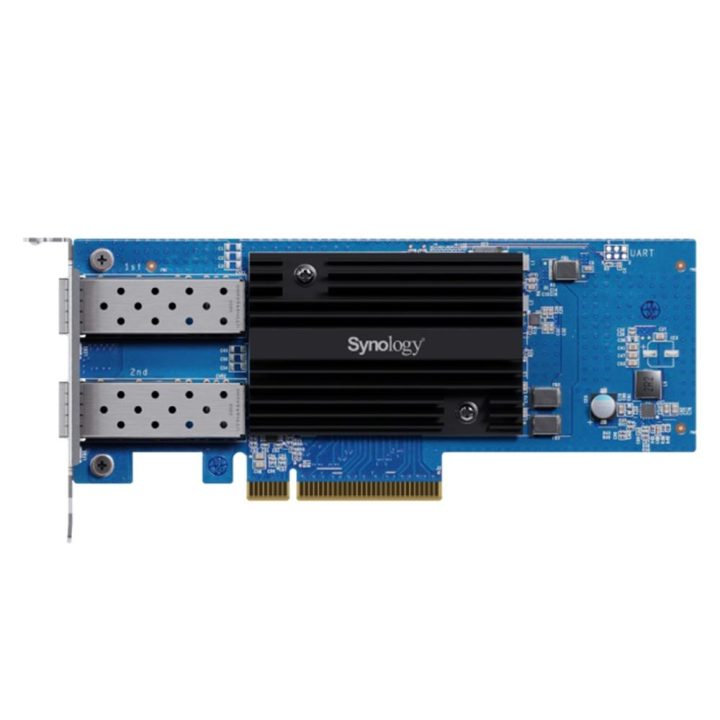

Synology E25G30-F2 25GbE SFP28 PCIe LP Adapter

This Synology network adapter installs in the server's PCIe 3.0 x8 slot to enable high-speed connections via SFP28 ports. It supports data transfer speeds of 25 Gbps and 10 Gbps, complying with IEEE 802.3by, 802.3ae, and 802.3ad specifications for Ethernet link aggregation.

The device includes processing offload features such as TSO, RSS, GSO, TSS, LRO, and SR-IOV, in addition to support for Jumbo frames from 1.5 to 9 KB. Its design allows for low-profile or full-height mounting, with dimensions of 69 mm x 168 mm x 17.3 mm. It operates at temperatures from 0 °C to 40 °C and requires DSM 7.1.1-42962 Update 5 or later, with DSM 7.2.1-69057 or later required for models with AMD Ryzen V1000 CPUs.

• PCIe 3.0 x8 interface with SFP28 connectivity
• Transfer speeds of 25 Gbps and 10 Gbps
• Support for Jumbo frames from 1.5 to 9 KB
• TSO, RSS, GSO, and SR-IOV offload features
• Low-profile or full-height mounting
