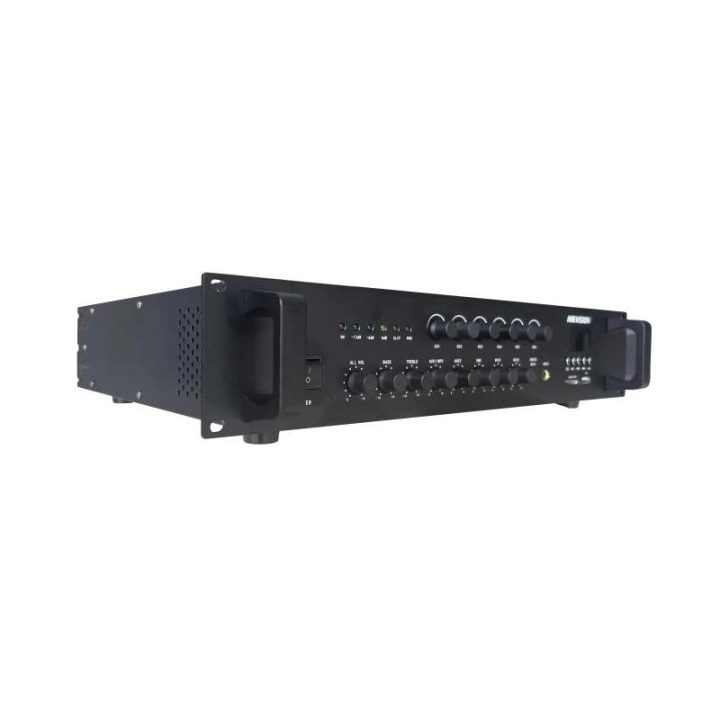

Hikvision DS-QAE0A120G1-VB6/EU 120W Amplifier (347000035)

This audio amplifier is designed for sound systems that require a rated power of 120 W. It features a frequency response of 80 Hz to 18 kHz, with a total harmonic distortion of less than 0.5% and a signal-to-noise ratio of at least 83 dB. Its structure allows for managing multiple sound sources simultaneously, adapting to installations that need audio distribution by zones.

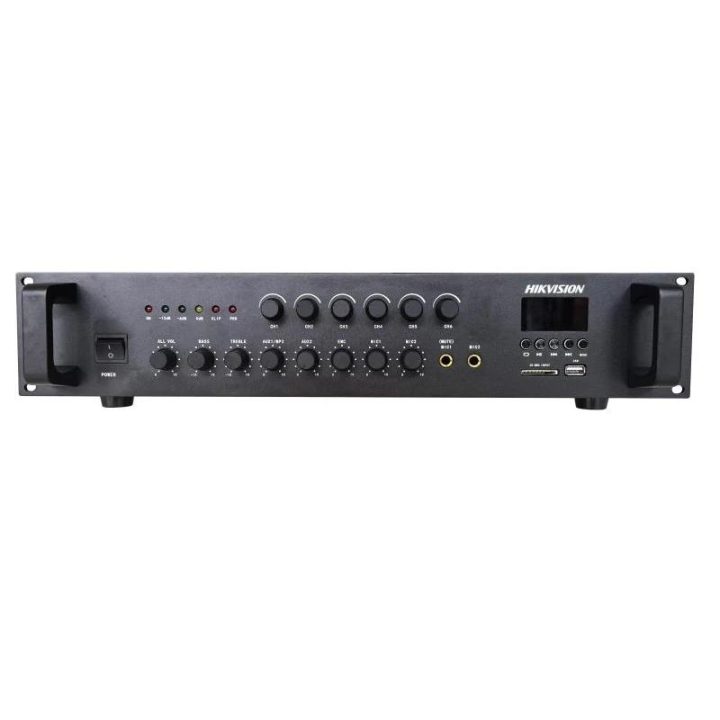

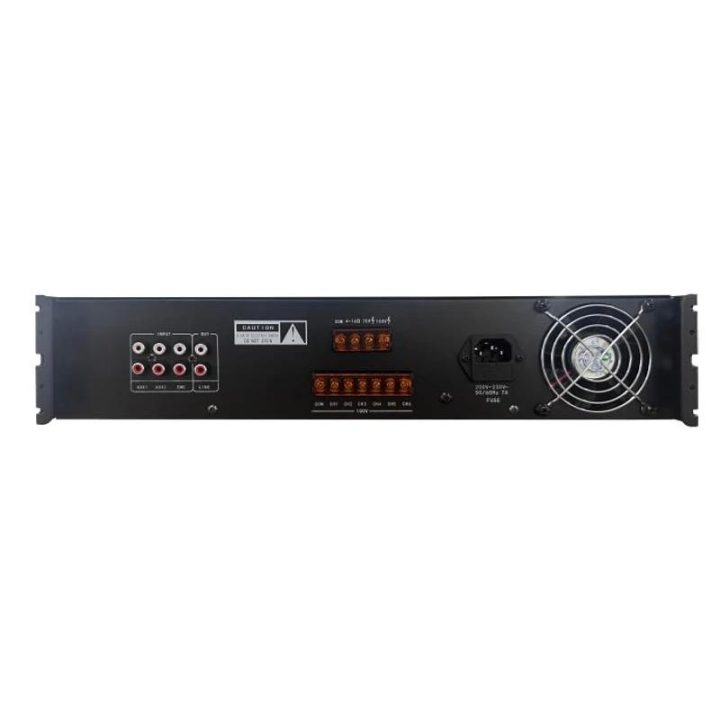

The unit integrates inputs for 6.5 mm microphones, auxiliary line, Bluetooth, USB 2.0, and SD card, in addition to an EMC input. In terms of outputs, it offers constant voltage connections of 110 V and 70 V, an impedance output of 4 to 16 Ω, and six 110 V partition outputs. It includes physical controls for master volume, bass, treble, and individual channels. It operates with a power supply of 200-230 V, 50/60 Hz, and works in temperatures from 10 to 40 °C.

• Rated power of 120 W
• Bluetooth, USB 2.0, and SD card inputs
• Constant voltage outputs of 110 V and 70 V
• Six independent partition outputs
• Frequency response of 80 Hz to 18 kHz
