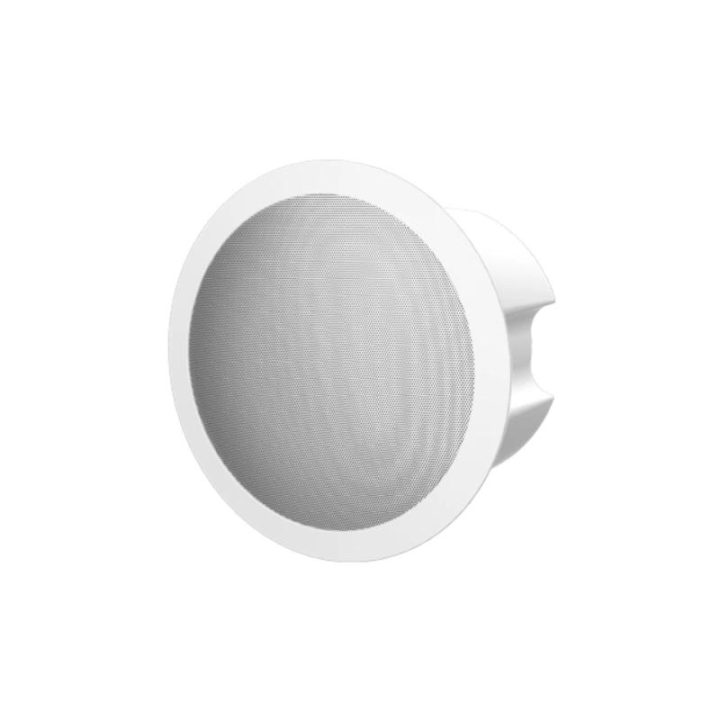

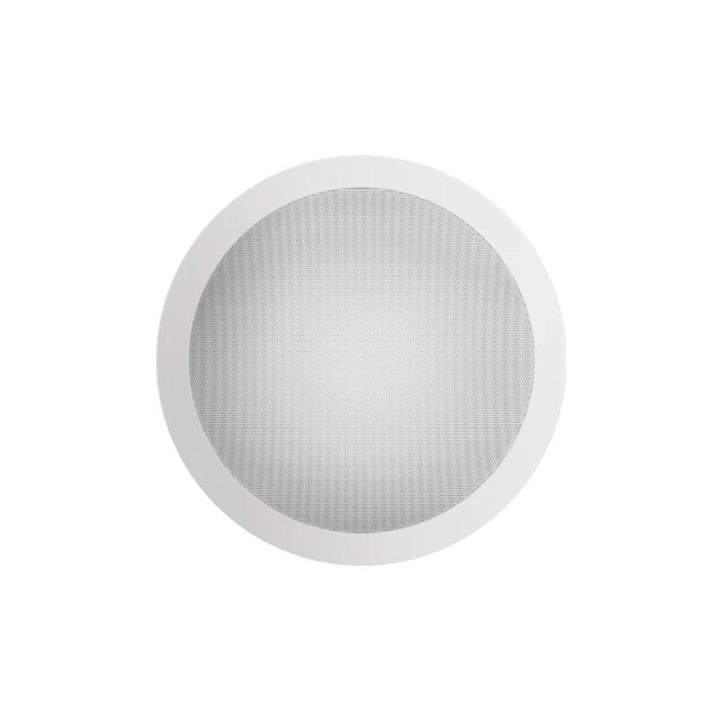

Fanvil FH-S01 SIP PoE Ceiling Speaker 10/100 Mbps

The Fanvil FH-S01 is a ceiling-mounted speaker that operates via the SIP protocol. It features a 20 W output power and allows playback of audio files stored in its 27 MB internal memory. Its connectivity includes one short-circuit input and one short-circuit output, facilitating integration into existing communication systems.

This device operates with a DC power supply between 12 V and 24 V at 2 A, supporting PoE technology. It has a frequency response of 100 Hz to 20 kHz and a sensitivity of 89 dB ±3 dB at 1 meter and 1 W. The maximum sound pressure level reaches 96 dB. Its dimensions are 238.5 × 238.5 × 148.3 mm and it weighs 1.92 kg, with an operating temperature range of -20 °C to 50 °C.

• 20 W speaker power
• 27 MB internal storage for audio
• PoE connectivity and SIP protocol
• Frequency response from 100 Hz to 20 kHz
• Ceiling installation with dimensions of 238.5 × 238.5 × 148.3 mm
