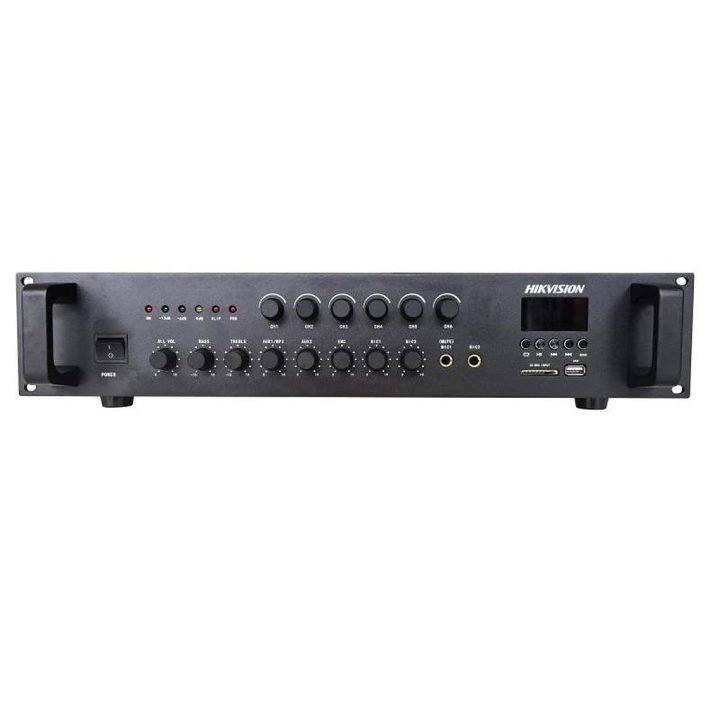

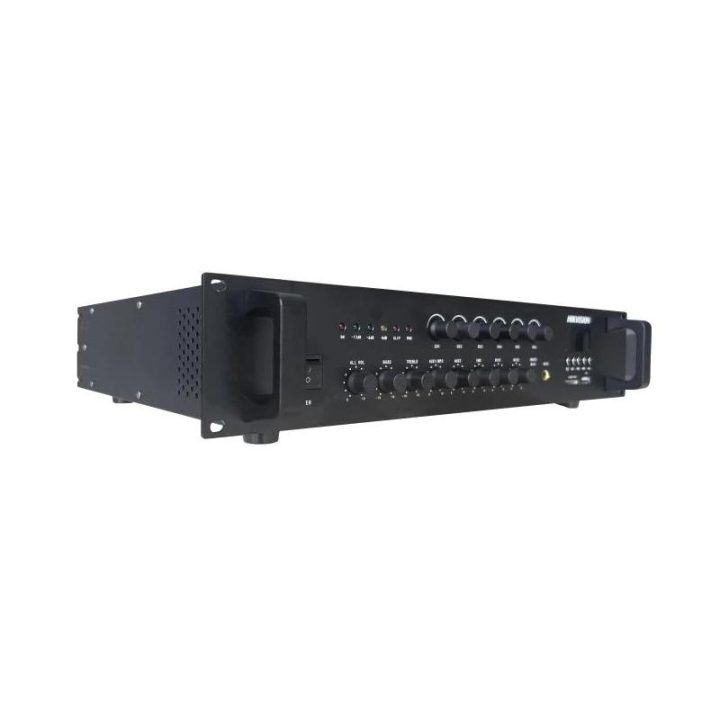

Hikvision DS-QAE0A240G1-VB6/EU 240W Amplifier (347000037)

This Hikvision audio amplifier offers a rated power of 240 W, designed for sound systems that require flexibility in connections. It features inputs for microphone, auxiliary line, Bluetooth, USB, and SD card, allowing playback from various audio sources. Its frequency response ranges from 80 Hz to 18 kHz, with a total harmonic distortion of less than 0.5% and a signal-to-noise ratio greater than 75 dB.

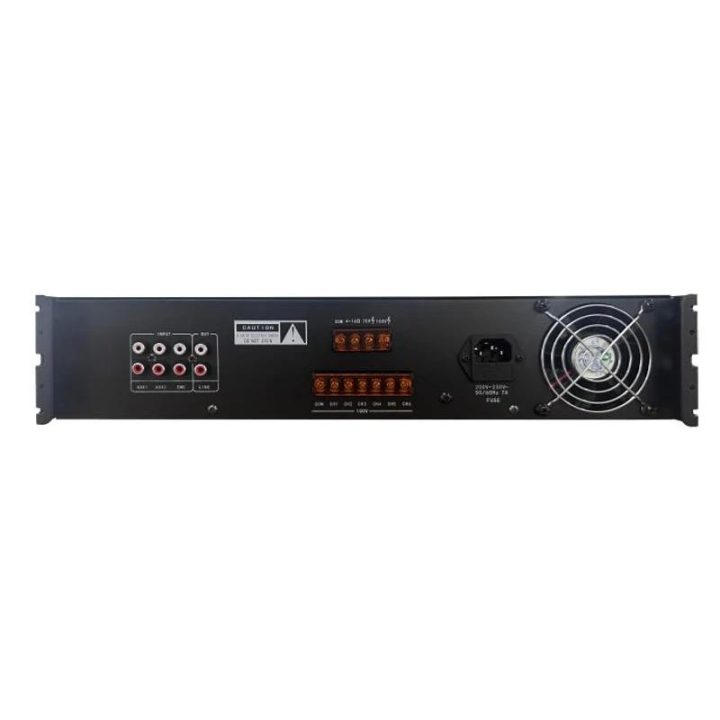

The unit features constant voltage outputs of 70 V and 110 V, as well as an impedance output of 4 to 16 Ω. It includes six independent partition outputs to manage audio zones. Control is performed via physical knobs for master volume, microphones, auxiliary lines, bass, and treble. It operates on 200-230 V power and functions at temperatures from 10 to 40 °C.

• Rated power of 240 W
• Inputs for microphone, Bluetooth, USB, and SD card
• Constant voltage outputs of 70 V and 110 V
• Six independent partition outputs
• Frequency response from 80 Hz to 18 kHz
• Bass and treble control via knobs
