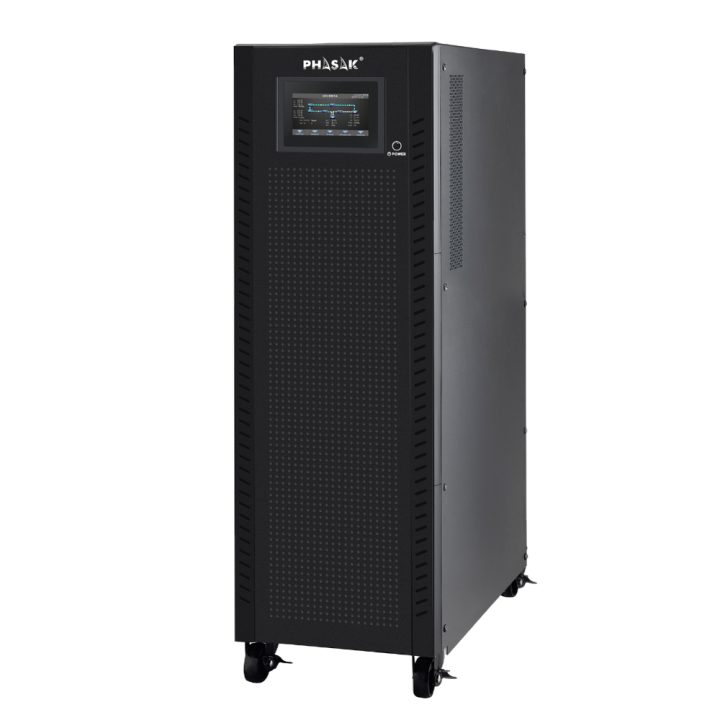

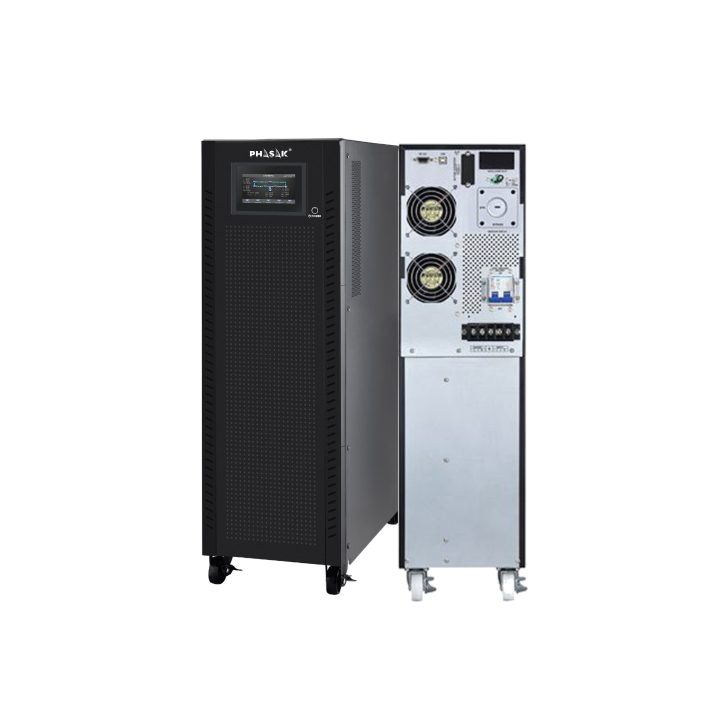

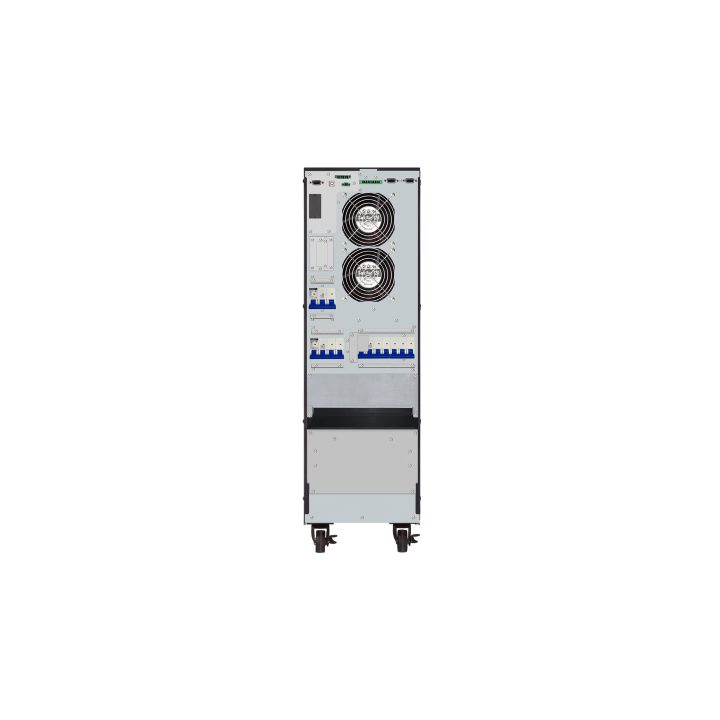

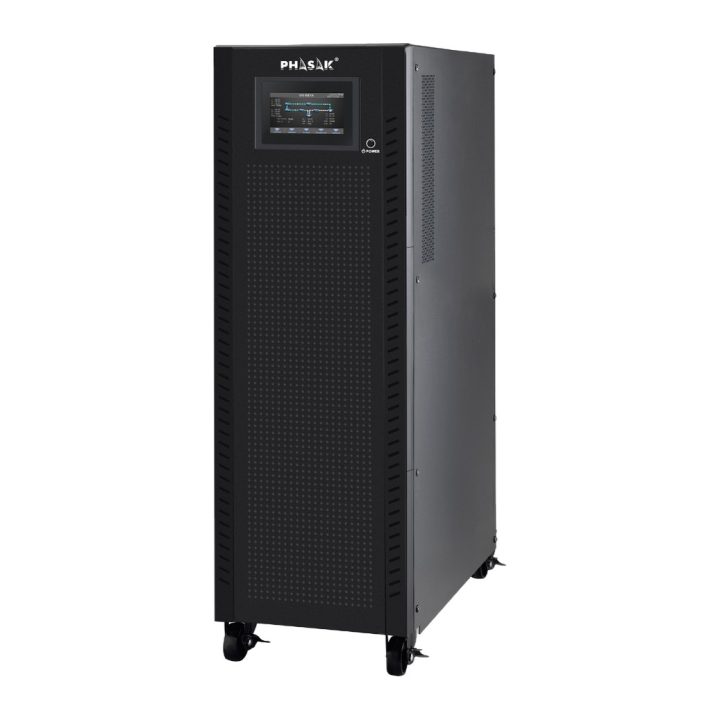

Phasak 40000VA Online UPS PH 9284 40KVA

The Phasak PH 9284 is an online double-conversion uninterruptible power supply system with a rated power of 40,000 VA and 40,000 W. Designed for professional environments, it offers complete isolation between input and output, providing a pure sine wave and precise voltage and frequency regulation. Its three-phase architecture with neutral allows managing critical loads via a terminal block connection.

This tower-format unit integrates a touch LCD screen for local monitoring and performs an automatic battery test at every startup. It uses 64 sealed lead-calcium AGM batteries of 12V and 9Ah, maintenance-free, which require 9 hours to reach 90% of their capacity. Its dimensions are 815 mm high, 300 mm wide, and 1000 mm deep, with a total weight of 250 kg.

• Power of 40,000 VA and 40,000 W with a power factor of 1.00
• Online double-conversion technology with pure sine wave
• Three-phase configuration with neutral and terminal block connection
• Touch LCD screen for local management and monitoring
• 12V and 9Ah AGM batteries with automatic test at startup
• Dimensions of 815 x 300 x 1000 mm and weight of 250 kg
