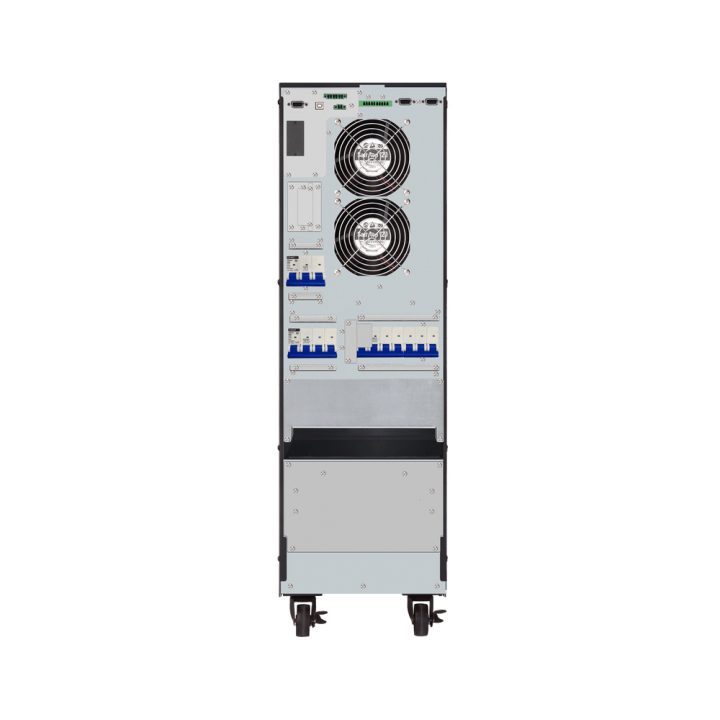

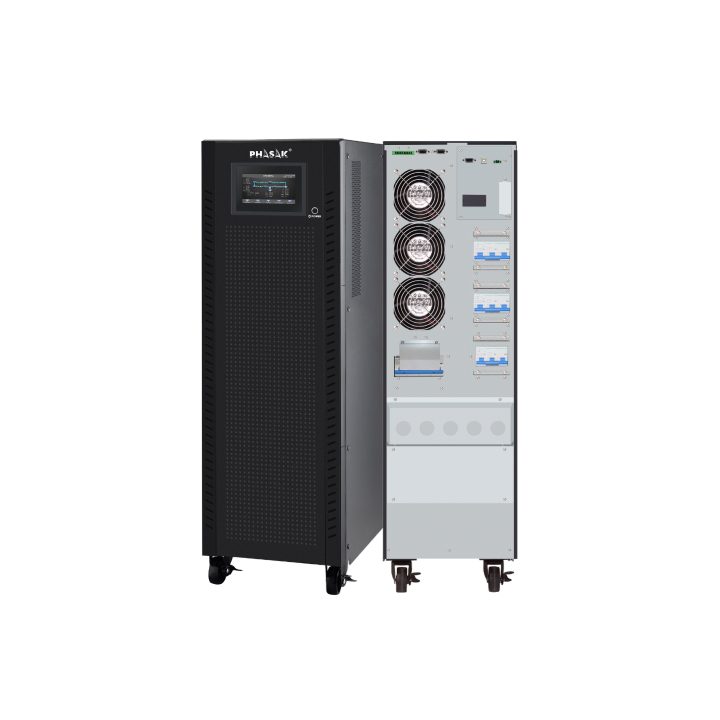

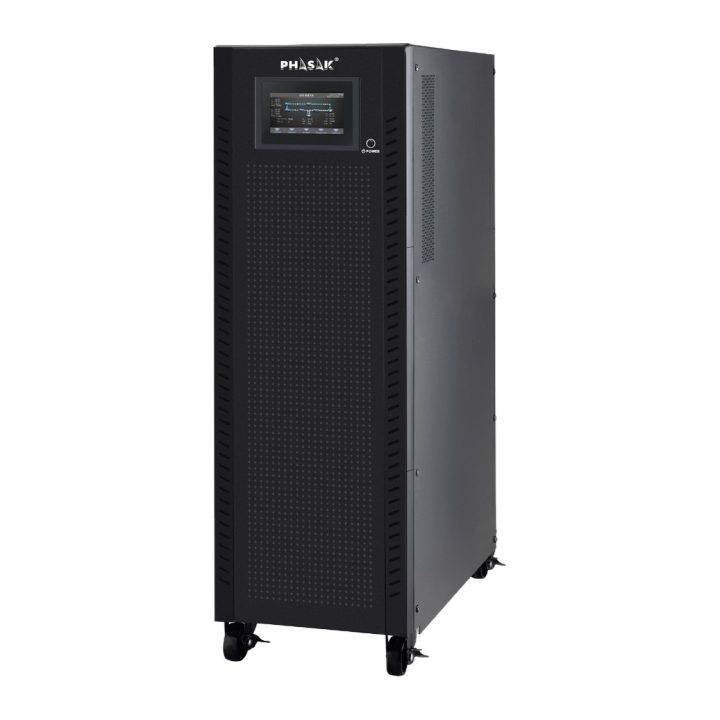

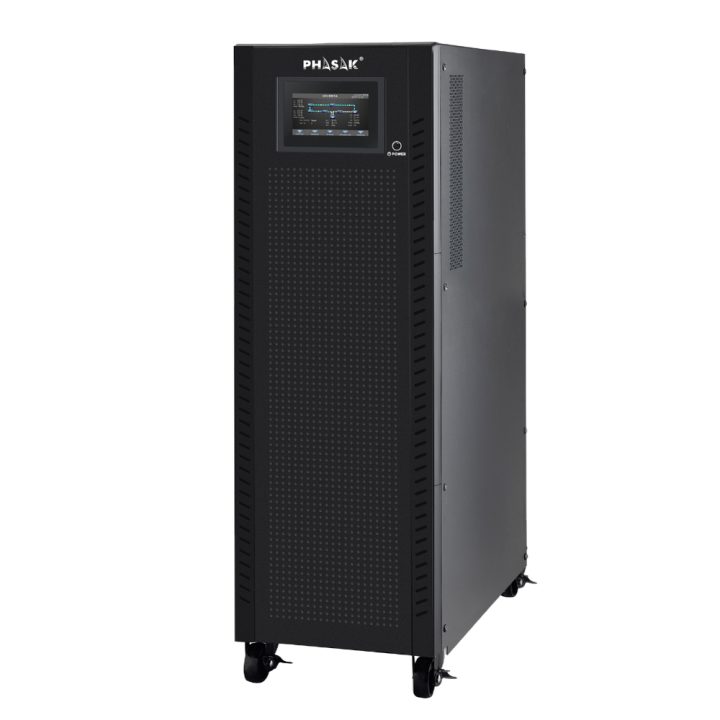

Phasak 20000VA Online UPS PH 9293 20KVA

The Phasak PH 9293 is a true online double-conversion uninterruptible power supply system, designed to isolate the load from electrical grid variations. It offers 20000VA of power with a power factor of 1.00, which translates to 20000W of real capacity. Its convertible three-phase technology with neutral and pure sine wave generation ensure a stable and regulated supply, eliminating fluctuations and micro-outages with zero transfer time.

This unit integrates 32 internal 12V 9Ah batteries, sealed AGM Pb-Ca type maintenance-free, with a 90% charge time of 9 hours. It features cold start capability, automatic recharge, and battery test at every startup. It is compatible with PH 9275 external battery banks to extend runtime. It includes an automatic voltage regulator (AVR) and a touch LCD screen for local management, allowing remote monitoring via optional SNMP card. Its total weight is 250 kg.

• 20000VA power with 1.00 power factor
• True online double-conversion technology
• Pure sine wave and convertible three-phase + neutral
• 32 internal 12V/9Ah maintenance-free AGM batteries
• Touch LCD screen and optional SNMP monitoring
• Weight of 250 kg
