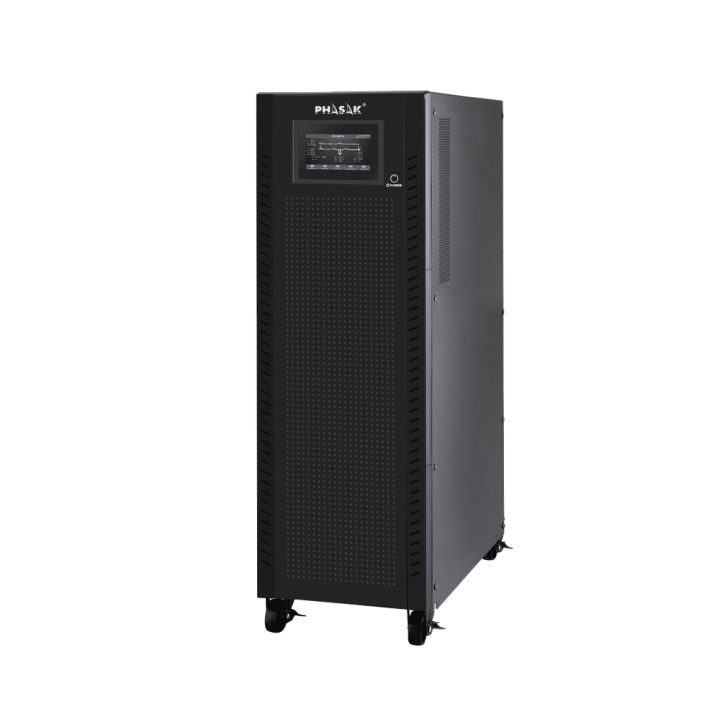

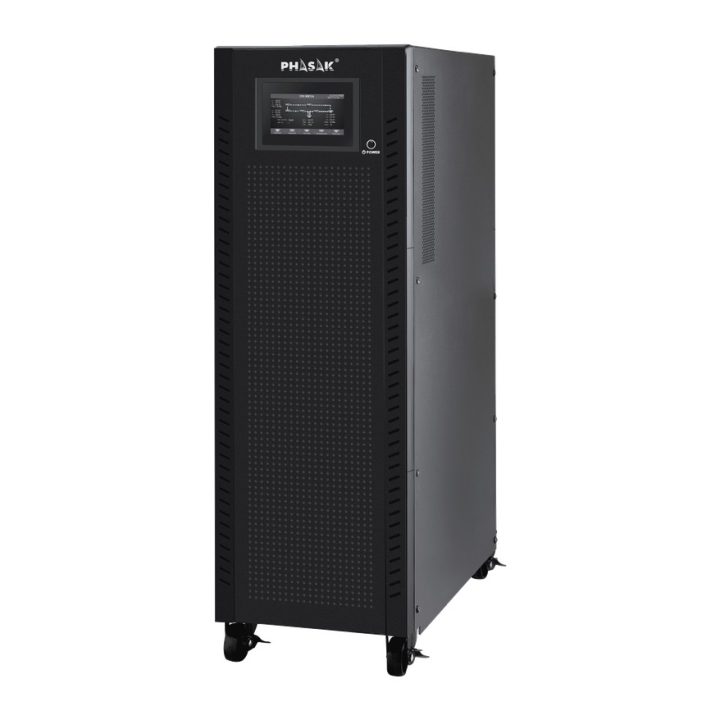

Phasak 10000VA Online UPS 3p-3p ph 9273 10KVA

The Phasak PH 9273 is a true double-conversion online uninterruptible power supply system, designed to provide electrical stability for sensitive loads. With a rated power of 10000 VA and 10000 W, this 3P/3P + neutral three-phase unit provides a pure sine wave and zero transfer time, ensuring supply continuity during grid disturbances.

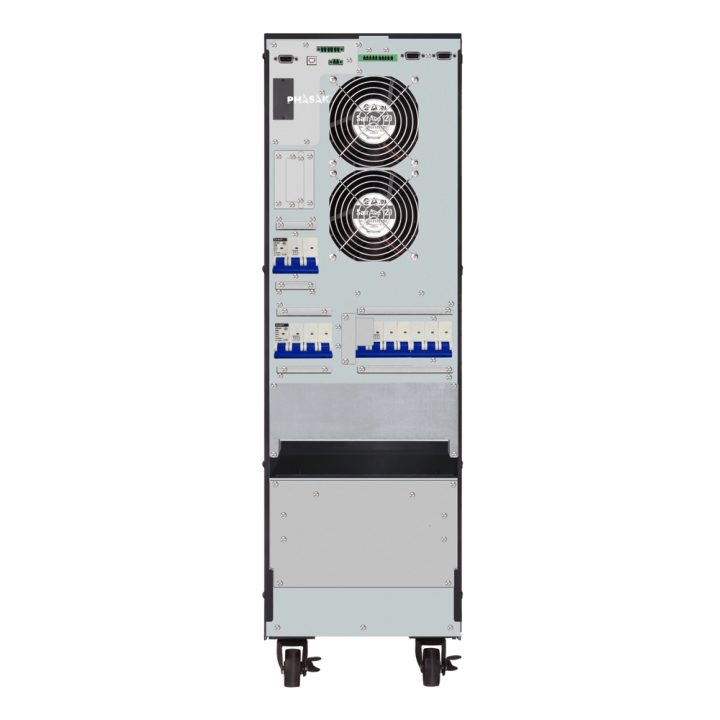

Its architecture includes an automatic voltage regulator (AVR) and a complete isolation system between input and output. The device integrates 20 internal sealed lead-calcium AGM batteries of 12V/9Ah, maintenance-free, and allows for extended runtime via external battery banks. It features a tower format with a terminal block connection, a power factor of 1.00, and generator compatibility, weighing 124 kg.

• 10000 VA / 10000 W power with a power factor of 1.00
• 3P/3P + neutral three-phase architecture in tower format
• Pure sine wave with zero transfer time
• Integration of 20 internal 12V/9Ah AGM batteries
• Generator compatibility and external runtime extension
