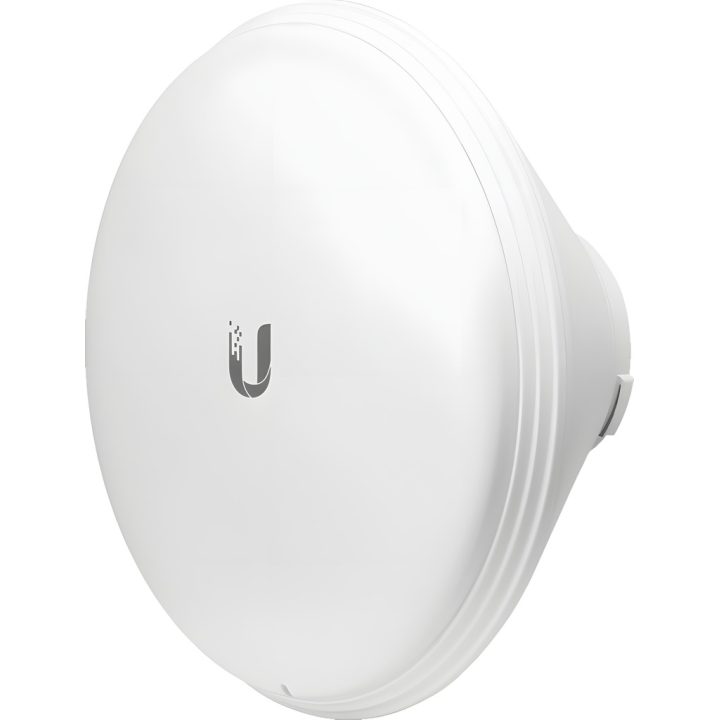

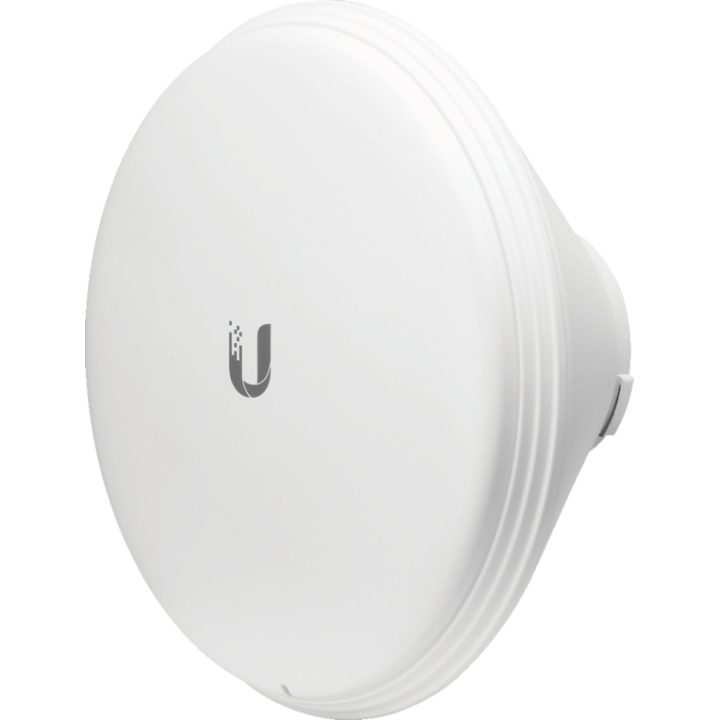

Ubiquiti HORN-5-45 Network Antenna Horn Antenna 15.5 dBi
Ubiquiti HORN-5-45 Network Antenna Horn Antenna 15.5 dBi
  • Height96 mm
  • Weight1.34 kg
  • Antenna typeHorn antenna
  • Antenna Gain15.5 dBi
Ubiquiti Ref. HORN-5-45 · EAN 0817882022712

Ubiquiti HORN-5-45 Network Antenna Horn Antenna 15.5 dBi

Ubiquiti HORN-5-45 horn antenna with 15.5 dBi gain, designed to operate in the 5 GHz band.

€97.99
Tax included

Free shipping to mainland Spain

In stock
Delivery in 24/48 h in mainland Spain · 5–7 days to the Balearic Islands and Portugal
Share

The Ubiquiti HORN-5-45 is a horn antenna designed for network links in the 5 GHz band, with a frequency range of 5.15 to 5.85 GHz. Its dual-polarization design and maximum gain of 15.5 dBi enable efficient directional transmission, suitable for point-to-point connections.

The device features a horizontal beamwidth of 45° and a voltage standing wave ratio (VSWR) of 1.7:1. Its physical dimensions include a height of 96 mm and a diameter of 17.5 cm, with a total weight of 1.34 kg. The package includes one antenna unit.

  • 15.5 dBi antenna gain
  • Frequency operation from 5.15 to 5.85 GHz
  • Dual polarization for greater flexibility
  • Horizontal beamwidth of 45°
  • Voltage standing wave ratio of 1.7:1
  • Weight of 1.34 kg

  • Brand
    Ubiquiti
  • Reference
    HORN-5-45
  • EAN
    0817882022712
  • In stock
    8 Items
  • EAN13
    0817882022712

Data sheet

Height96 mm
Weight1.34 kg
Antenna typeHorn antenna
Antenna Gain15.5 dBi
