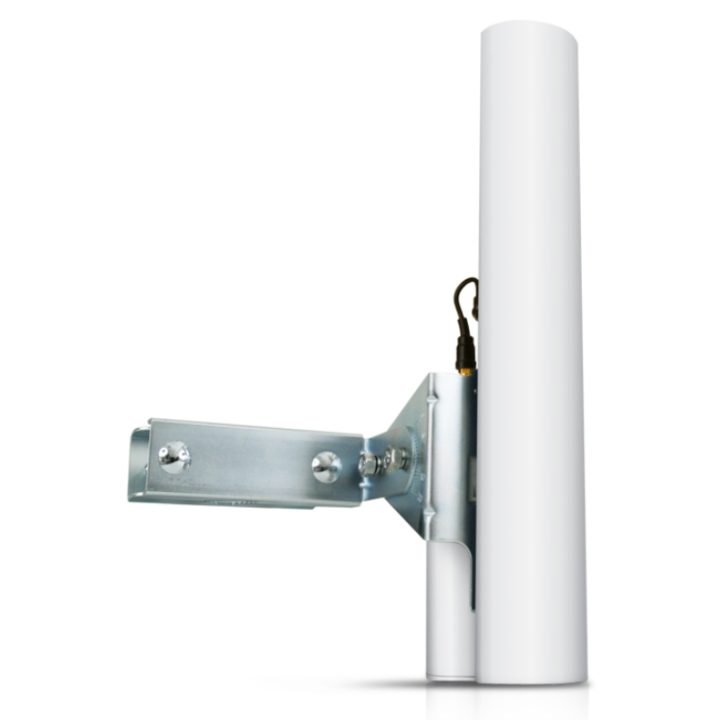

Ubiquiti AM-5G17-90 Network Antenna Sectorial Antenna 17.1 dBi

The Ubiquiti AM-5G17-90 is a sectorial antenna designed for data transmission in the 5 GHz band. This device offers a maximum gain of 17.1 dBi and dual polarization, enabling directional coverage with a horizontal beamwidth of 72 degrees. Its voltage standing wave ratio is 1.5:1, ensuring adequate efficiency in the wireless connection.

Regarding its physical dimensions, the antenna measures 367 mm wide, 41 mm high, and 63 mm deep. It complies with the EN 302 326 DN2 certification, a standard requirement for radio link equipment. The package includes one antenna unit, ready for integration into network infrastructures requiring point-to-multipoint links at higher frequencies.

• 17.1 dBi antenna gain
• Operation in the 5 GHz band
• 72° horizontal beamwidth
• Dual polarization
• Dimensions of 367 x 41 x 63 mm
• EN 302 326 DN2 certification
