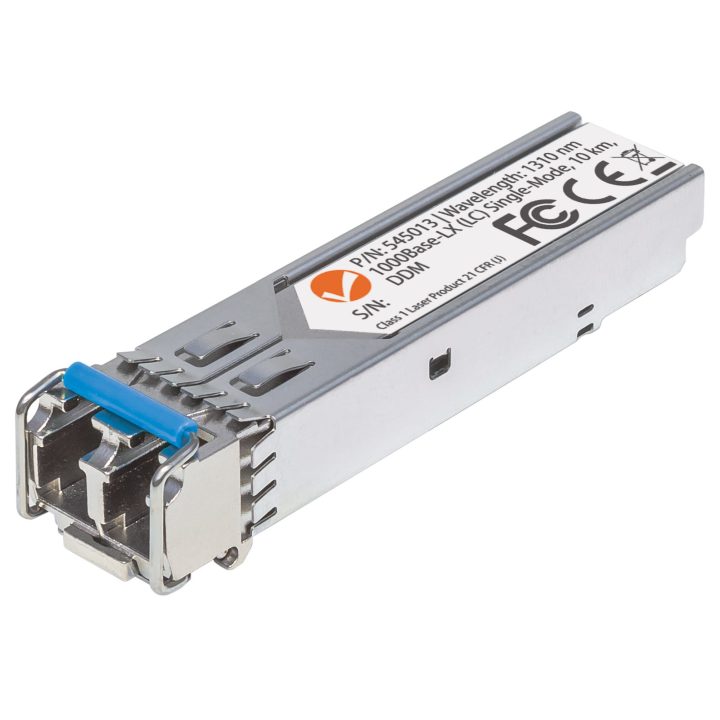

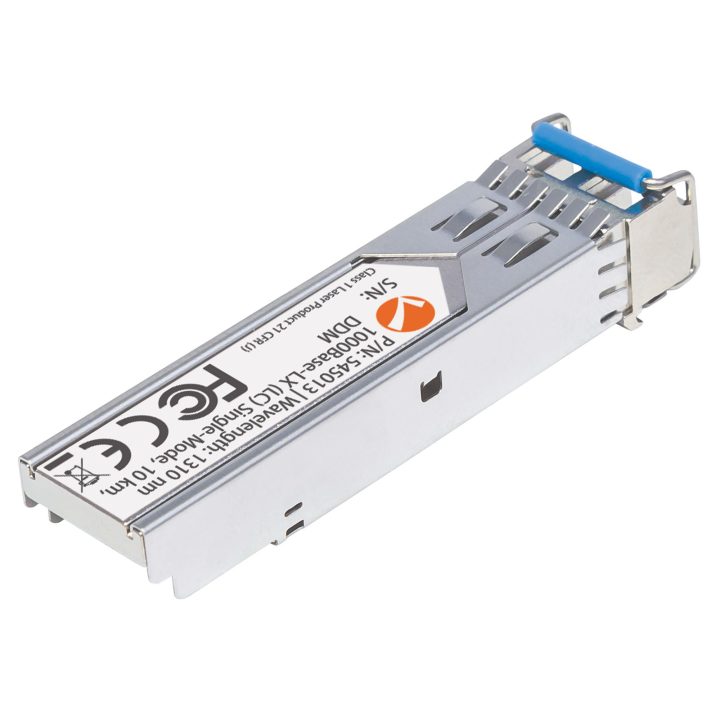

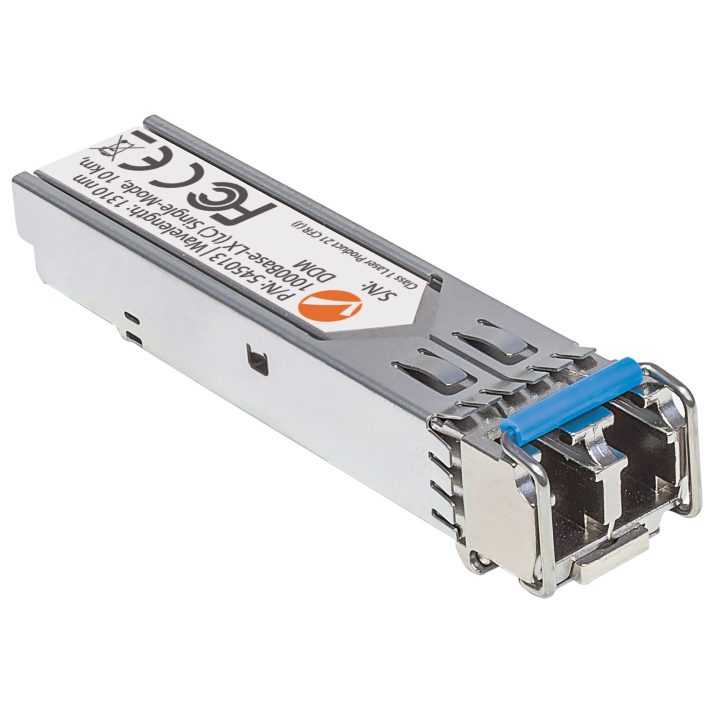

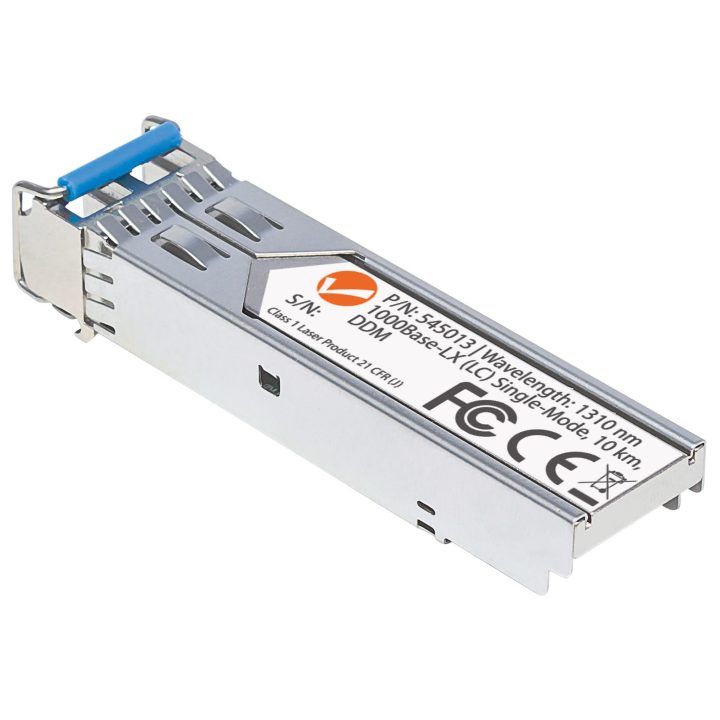

Intellinet Gigabit Fiber SFP Transceiver Module, 1000Base-LX (LC) Single-Mode, 10 km, 1310 nm, MSA Compliant, Equivalent to Cisc

This SFP transceiver module enables Gigabit network connectivity via single-mode fiber optic cable. It operates at a speed of 1000 Mbit/s using a 1310 nm wavelength and an LC-type fiber connector, achieving a maximum transmission distance of 10,000 m. Its design complies with the MSA standard and offers compatibility with equipment requiring the vendor pn GLC-LH-SM.

The device features an aluminum chassis that helps reduce electromagnetic interference. Its compact dimensions of 14 mm wide, 12 mm high, and 57 mm deep, along with a weight of 0.018 kg, facilitate installation in tight spaces. It includes Digital Diagnostic Monitoring (DDM) functions to monitor parameters such as optical power and temperature in real time.

• SFP interface with 1000 Mbit/s speed
• LC fiber connector for single-mode
• Maximum range of 10,000 m at 1310 nm
• MSA standard compliance
• Compatibility with vendor pn GLC-LH-SM
• Digital Diagnostic Monitoring (DDM) support
