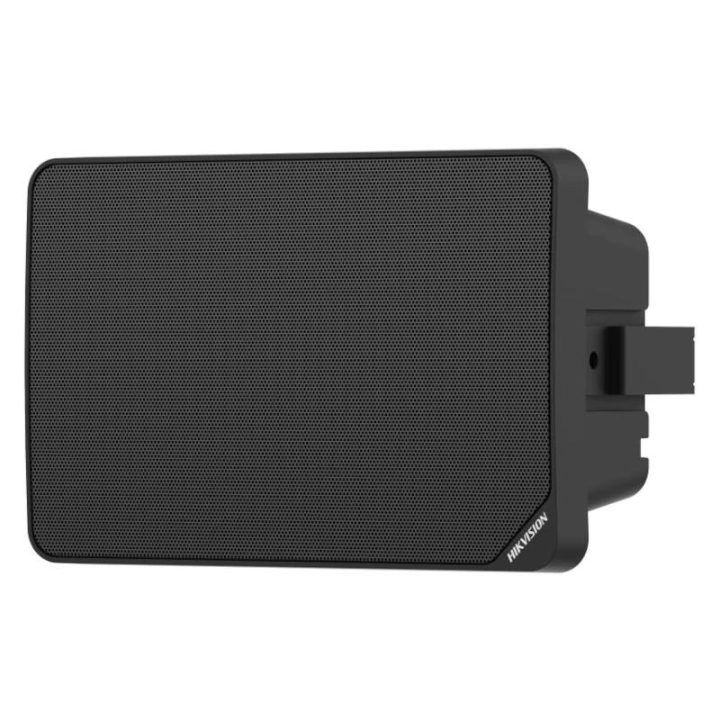

Hikvision DS-QAE0120G1R/BLACK Ceiling Speaker H and V (347000022)

This ceiling speaker is designed for distributed audio installations using constant-voltage lines. It features a 5.25-inch driver with 8 Ω impedance and allows selection of nominal power ratings of 5 W, 10 W, 15 W, or 20 W in both 70 V and 100 V configurations. Its structure combines a main body and front cover made of plastic with a metal bracket, offering a horizontal coverage of 135° and vertical coverage of 130°.

The device operates in a temperature range of -30 °C to 60 °C and supports humidity levels below 90% without condensation. It has a sensitivity of 90 dB ± 3 dB and a maximum sound pressure level of 103 dBSPL, with a frequency response between 130 Hz and 17.5 kHz. The unit dimensions are 268.4 x 180.4 x 125.12 mm and its weight is 1.5 kg. The package includes the speaker, a U-shaped bracket, screws, and an installation label.

• 5.25-inch speaker driver with 8 Ω impedance
• Selectable nominal power from 5 W to 20 W at 70 V and 100 V
• Plastic housing with metal bracket
• Horizontal coverage angle of 135° and vertical of 130°
• Operating temperature range of -30 °C to 60 °C
• Dimensions of 268.4 x 180.4 x 125.12 mm and weight of 1.5 kg
