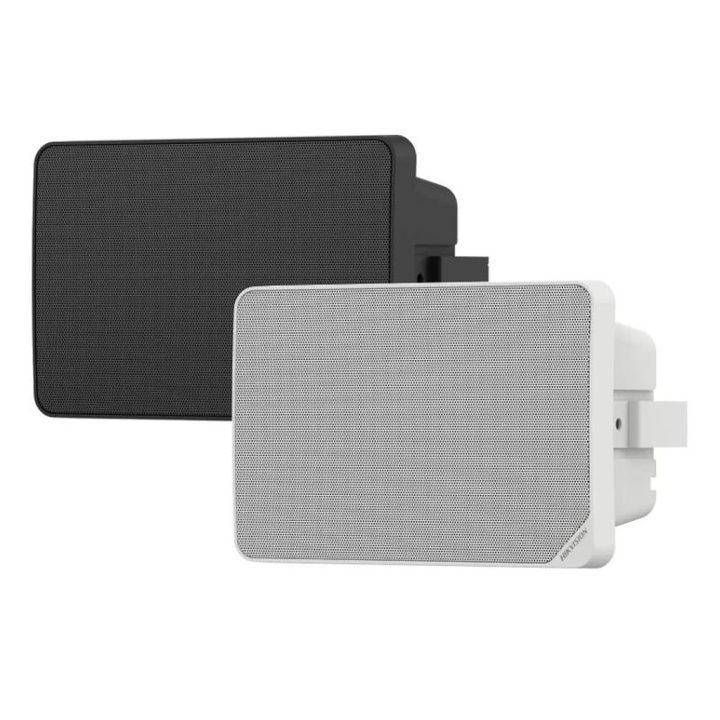

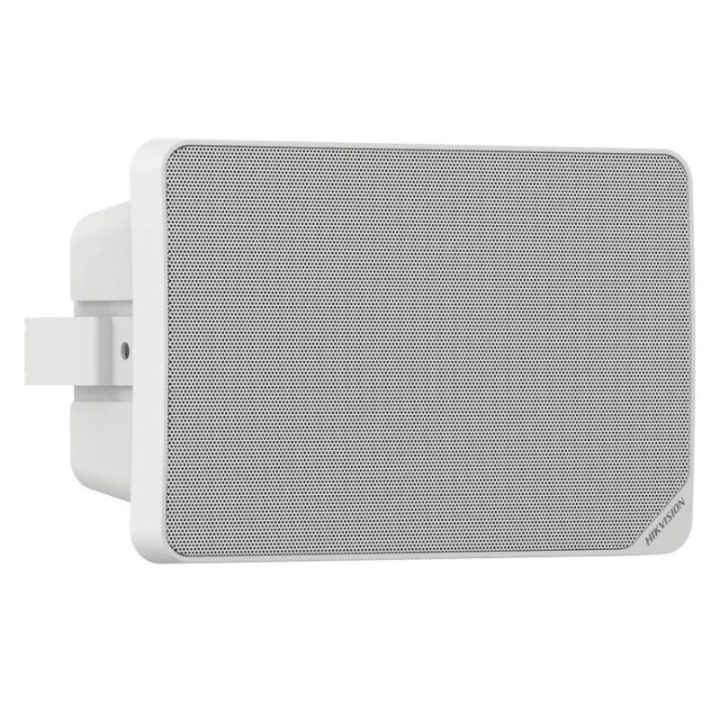

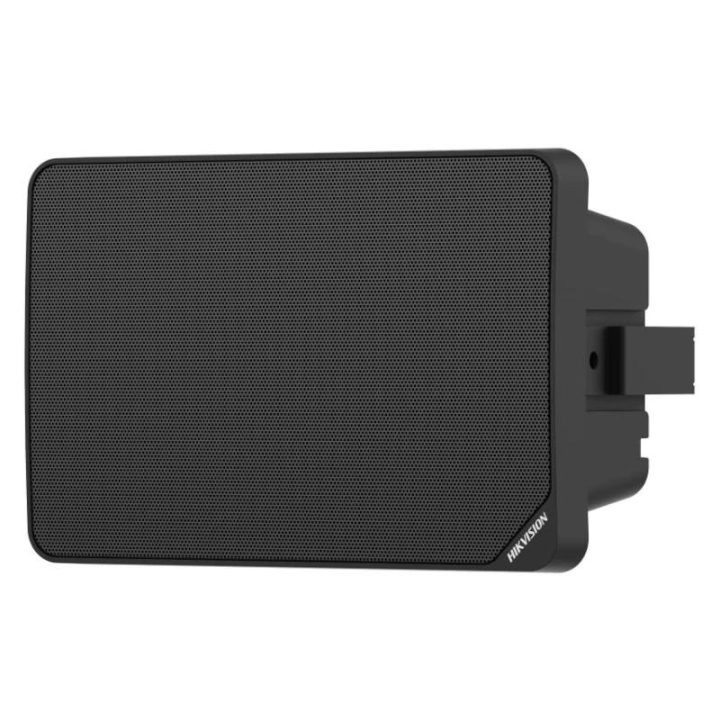

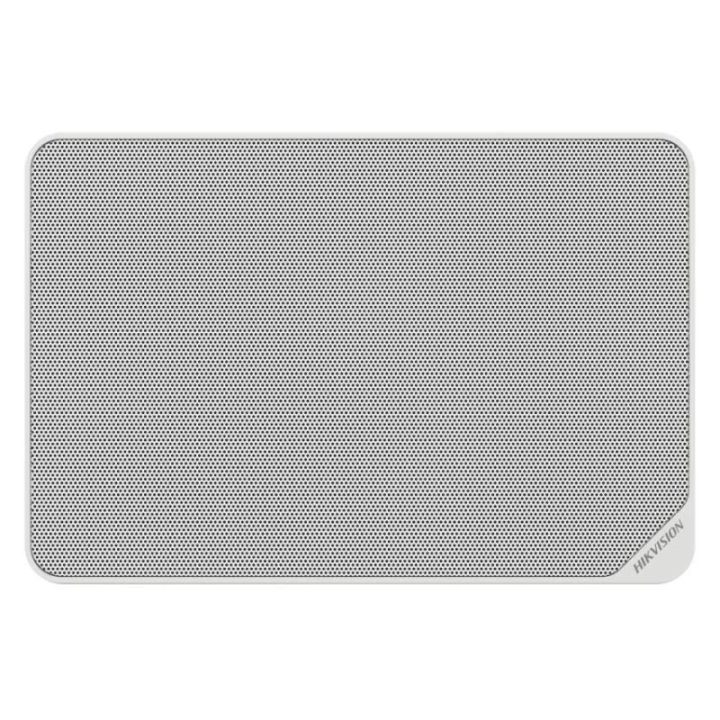

This ceiling speaker is designed for distributed audio systems operating via constant voltage lines. It features a 5.25-inch unit with an 8 Ω impedance and allows selecting the rated power between 5 W, 10 W, 15 W, or 20 W in both 70 V and 100 V configurations. Its design facilitates ceiling installation, providing uniform sound reproduction in all directions thanks to its horizontal coverage angle of 135° and vertical angle of 130°.
The device has a plastic housing and a metal bracket, with dimensions of 268.4 x 180.4 x 125.12 mm and a weight of 1.5 kg. Its frequency response ranges from 130 Hz to 17.5 kHz, reaching a maximum sound pressure level of 103 dBSPL and a sensitivity of 90 dB ± 3 dB. It operates correctly at temperatures from -30 °C to 60 °C and humidity levels below 90% without condensation. The package includes the speaker, a U-shaped bracket, screws, and an installation label.
- 5.25-inch speaker unit with 8 Ω impedance
- Selectable rated power from 5 W to 20 W on 70 V and 100 V lines
- Coverage angle of 135° horizontal and 130° vertical
- Frequency response from 130 Hz to 17.5 kHz
- Operation at temperatures from -30 °C to 60 °C
- Dimensions of 268.4 x 180.4 x 125.12 mm and weight of 1.5 kg
