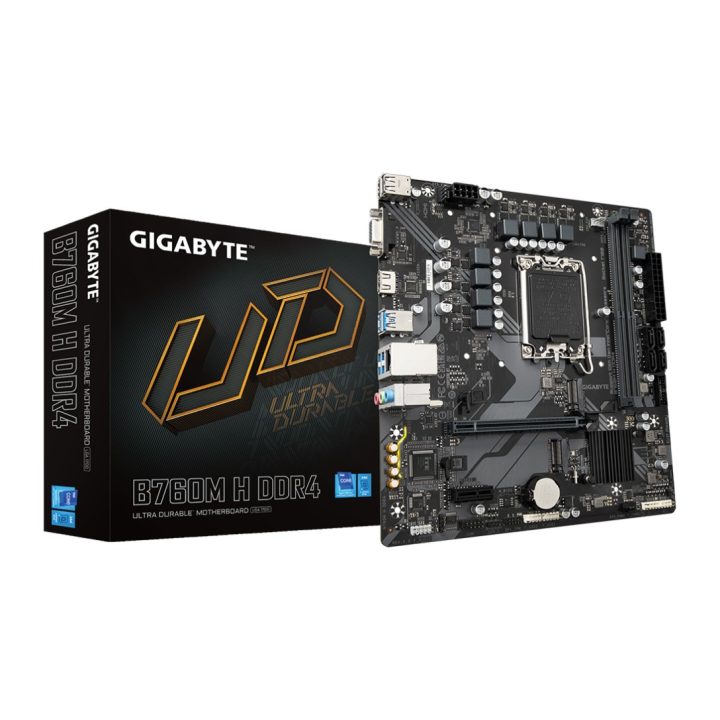

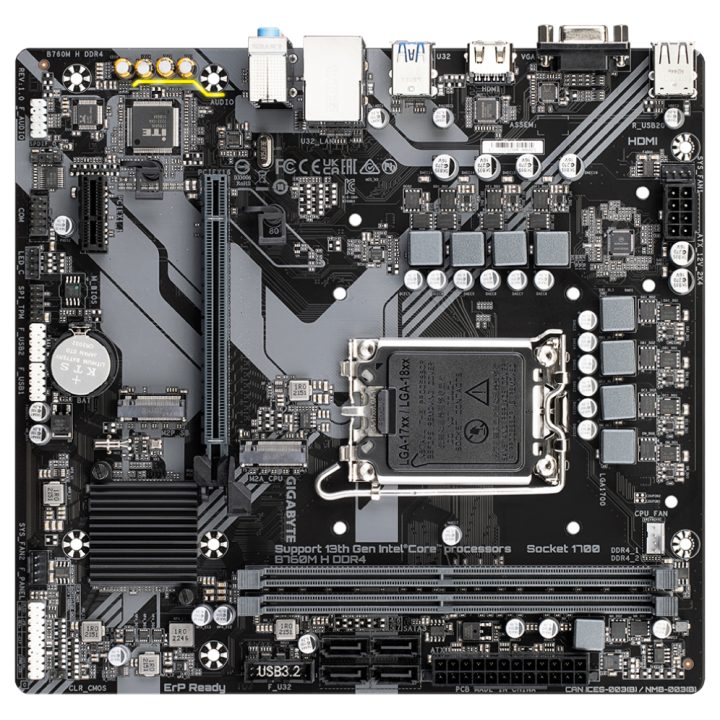

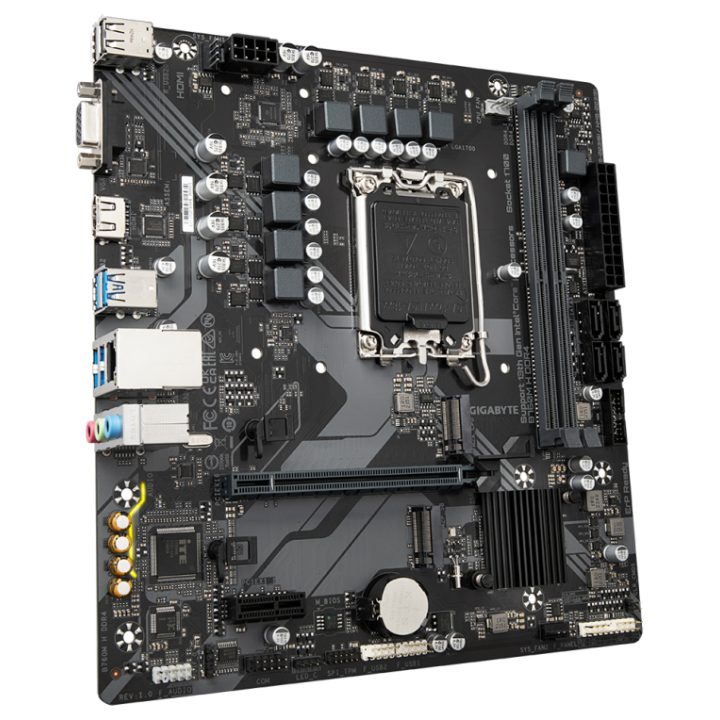

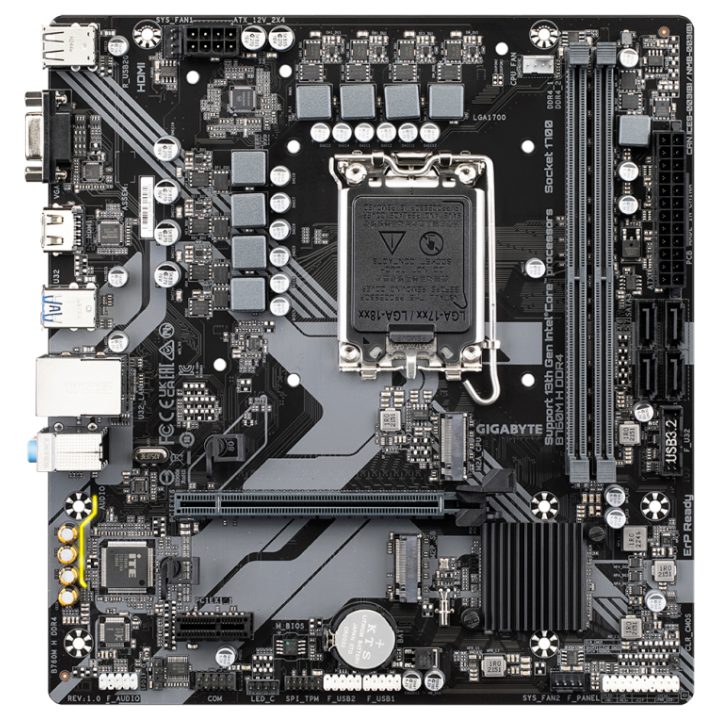

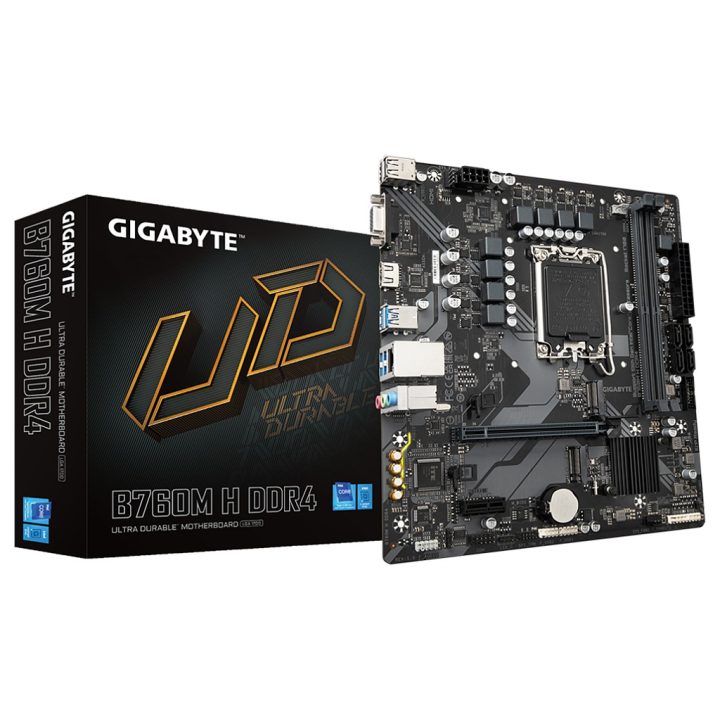

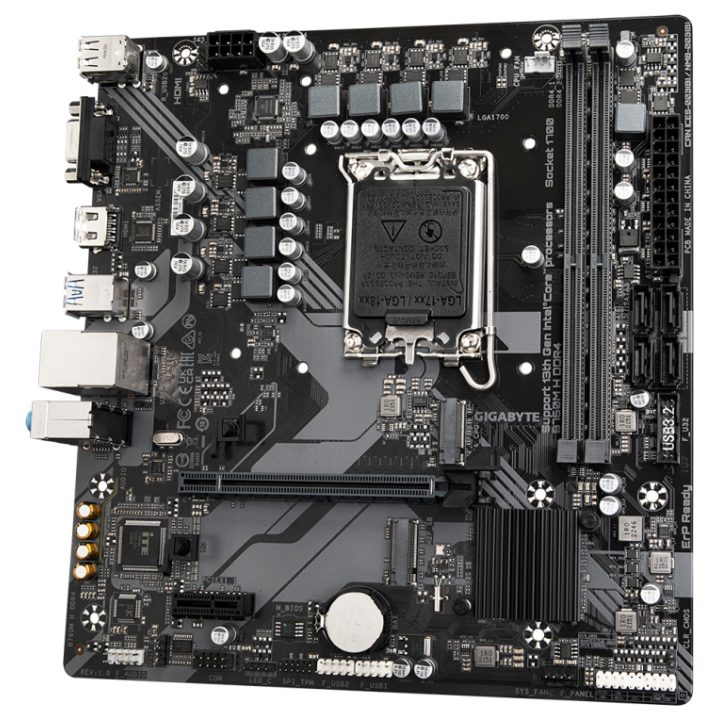

GIGABYTE B760M H DDR4 Motherboard - Supports 14th Gen Intel Core CPUs, 6+1+1 Phase Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe

This Micro-ATX motherboard is designed for Intel processors with LGA 1700 socket, including 14th generation models. It features an Intel B760 Express chipset and a 6+1+1 phase digital VRM power system. It has two DDR4 memory slots, supporting speeds up to 3200 MHz with overclocking and a maximum capacity of 64 GB.

Storage is managed via two M.2 PCIe 4.0 connectors and four SATA III ports, with support for RAID 0, 1, 5, and 10 configurations. Connectivity includes an HDMI output, a Gigabit Ethernet port, and USB 3.2 Gen1 ports. It does not include Wi-Fi. Its dimensions are 230 mm wide, 215 mm deep, and 35 mm high, with a brown finish.

• LGA 1700 socket compatible with Intel CPUs
• Intel B760 Express chipset
• Two DDR4 slots with support up to 64 GB
• Connectivity with two M.2 PCIe 4.0 and four SATA III

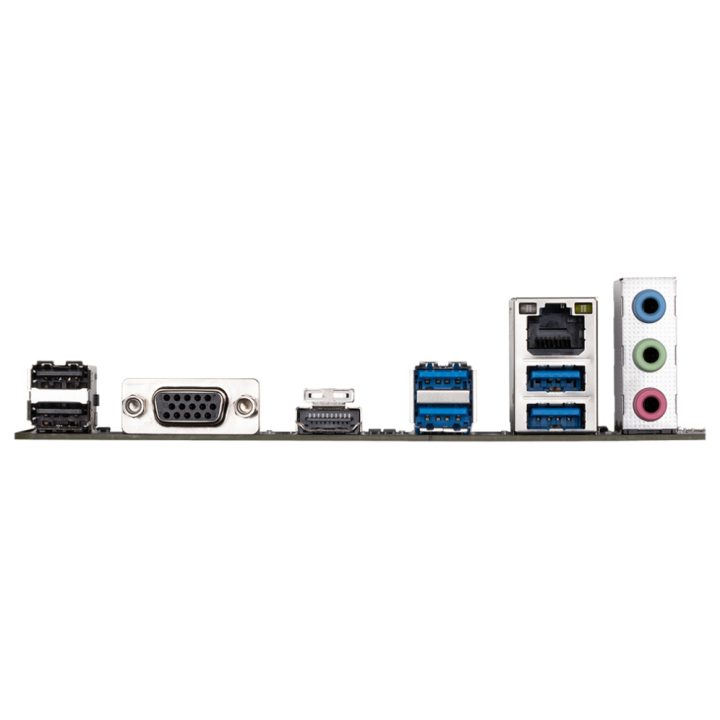

• HDMI video output and Gigabit Ethernet network
• Micro-ATX form factor, 230 x 215 mm
