GIGABYTE B760 DS3H GEN5 Motherboard – Compatible with Intel Core 14th Gen Processors, 8+2+1 Phase Digital VRM, Up to 5600 MHz DD

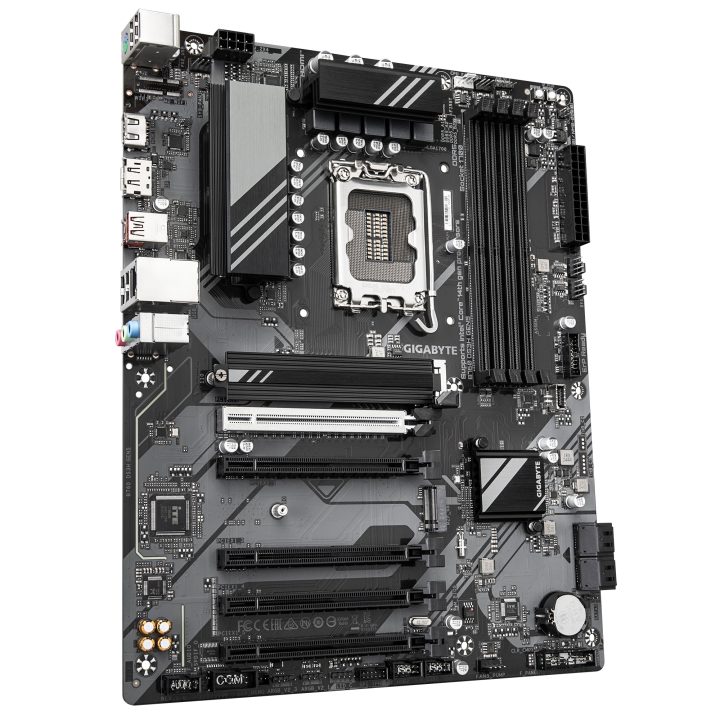

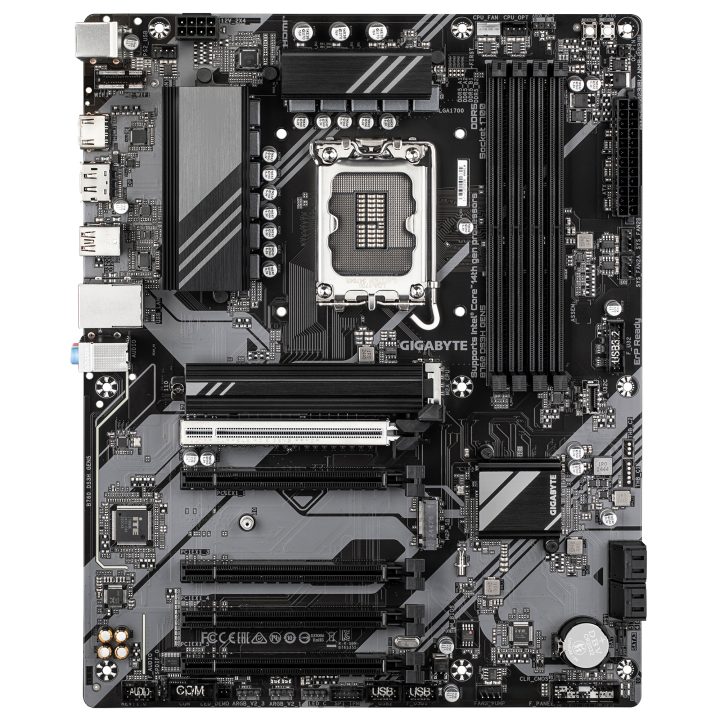

This ATX-format motherboard is designed for Intel 14th generation processors via its LGA 1700 socket and Intel B760 Express chipset. It features an 8+2+1 phase digital VRM and four DDR5 memory slots, supporting up to 256 GB at speeds of 5600 MHz. Its storage configuration includes two M.2 PCIe 4.0 ports and four SATA III connectors, with support for RAID levels 0, 1, 5, and 10.

In terms of connectivity, it includes an HDMI output, a USB 3.2 Gen 2x2 port, and a Gigabit Ethernet network interface, without integrated Wi-Fi. The device is dark brown and measures 305 mm wide, 244 mm deep, and 35 mm high, with a weight of 1.32 kg.

• LGA 1700 socket compatible with Intel Core 14th Gen
• Four DDR5 slots supporting up to 5600 MHz and 256 GB
• Two M.2 PCIe 4.0 ports and four SATA III connectors
• 8+2+1 phase digital VRM
• Gigabit Ethernet connectivity and USB 3.2 Gen 2x2 port
• ATX form factor with HDMI output
