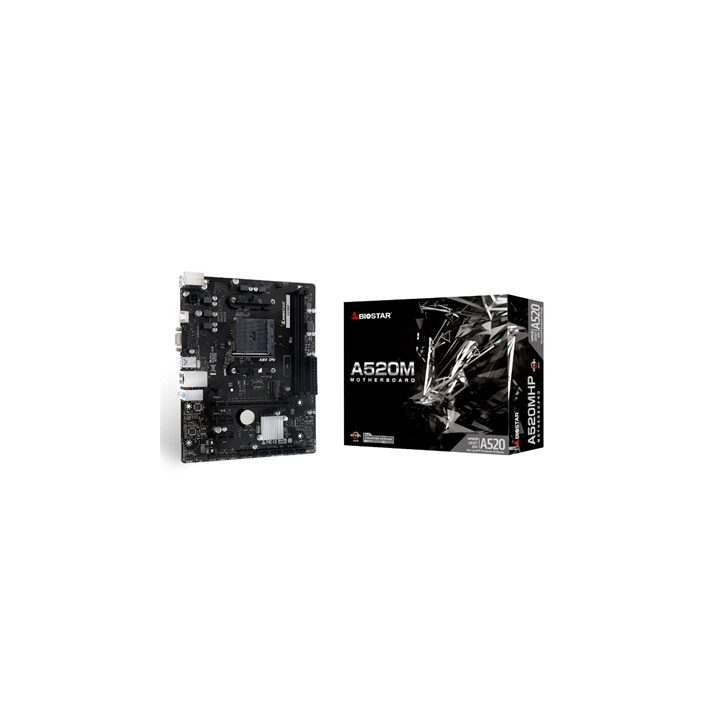

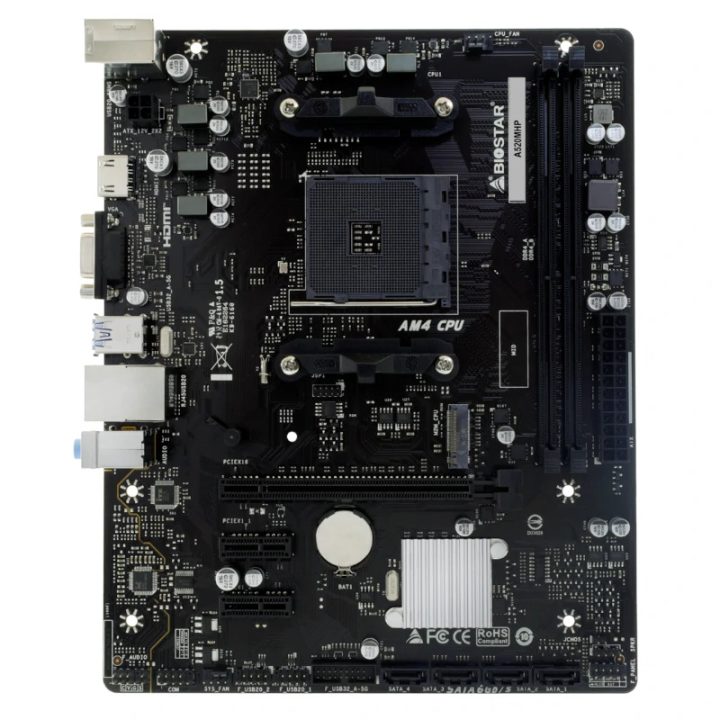

Biostar AM4 A520MHP matx DDR4 Motherboard

This Micro ATX motherboard is designed for systems with AMD Ryzen processors from the 5000, 5000G, 4000G, 3000, and 3000G series. It features the AMD A520 chipset and offers support for future models from the brand via BIOS update, provided the official compatibility list is consulted.

Regarding memory, it has two DIMM DDR4 slots in dual-channel configuration, with a maximum capacity of 64 GB and support for non-ECC modules of up to 32 GB. Supported speeds vary depending on the installed processor, reaching frequencies of up to 4400 MHz in overclocking. For expansion, it has one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. Storage is managed through four SATA III connectors at 6.0 Gb/s, while internal connectivity includes headers for USB 3.2 Gen1 and USB 2.0.

• Micro ATX format measuring 19.0 cm x 23.5 cm
• AMD A520 chipset with AM4 socket
• Two DDR4 slots supporting up to 64 GB
• One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots
• Four SATA III connectors at 6.0 Gb/s
