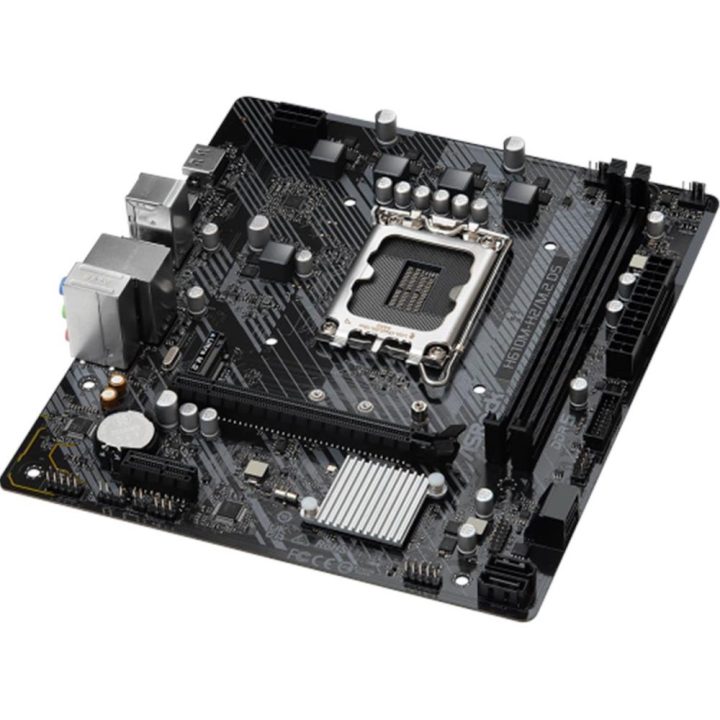

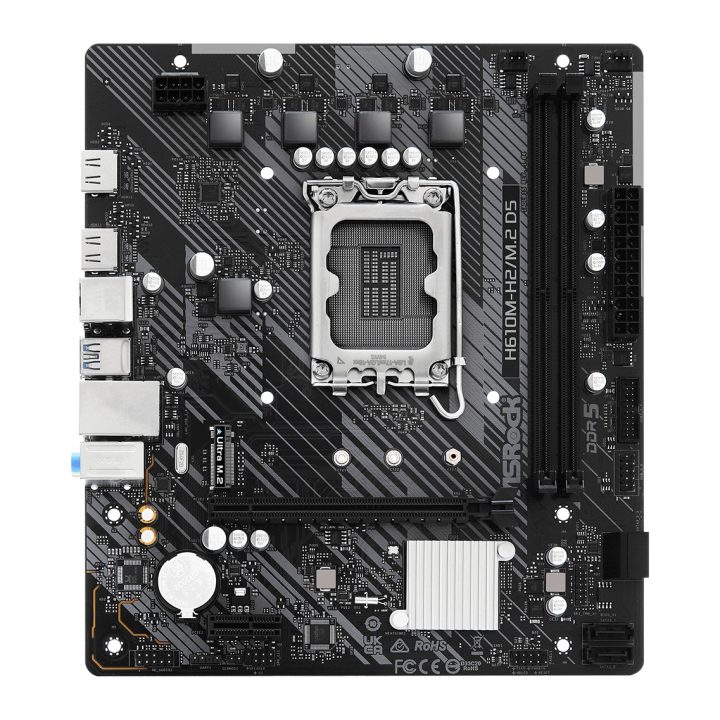

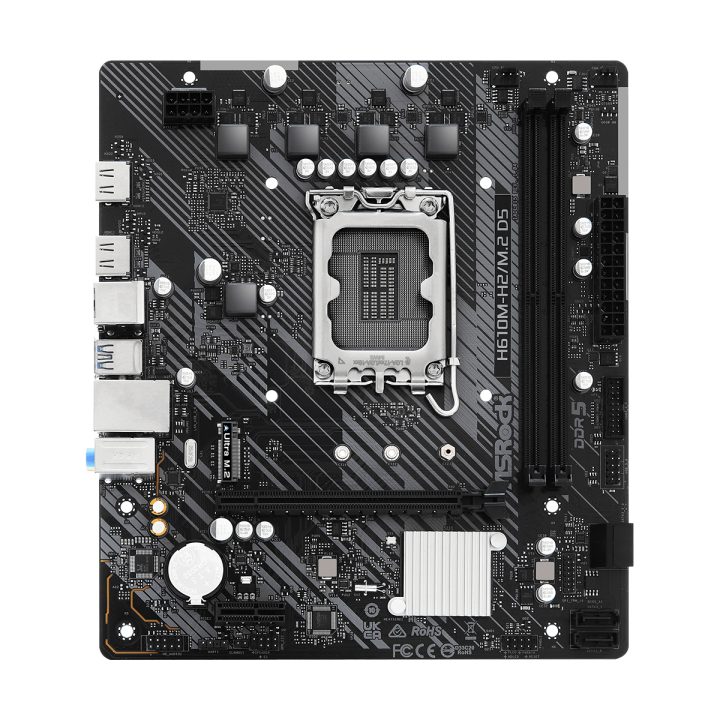

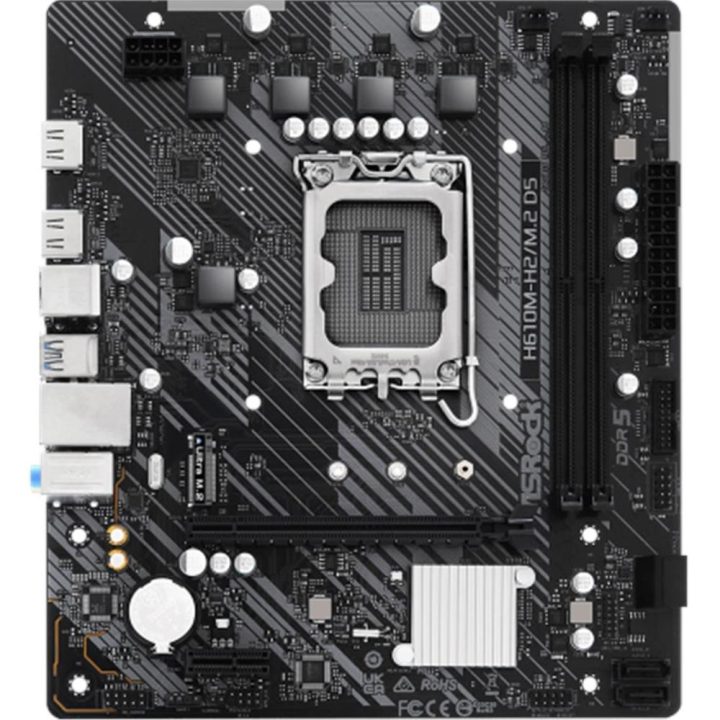

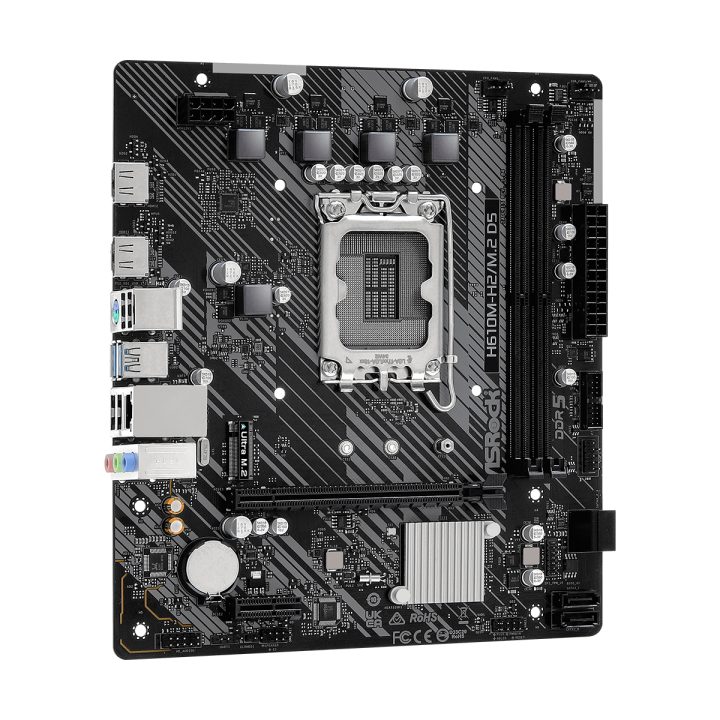

ASRock H610M-H2/M.2 D5 Intel H610 LGA 1700 Micro ATX (90-MXBML0-A0UAYZ)

This ASRock motherboard is designed for desktop systems with Intel processors under the LGA 1700 socket. Its Intel H610 chipset allows the use of DDR5 memory in two DIMM slots, supporting up to 96 GB of total capacity via dual-channel architecture. The Micro ATX format facilitates integration into compact cases, maintaining standard dimensions of 220 mm wide by 193 mm deep.

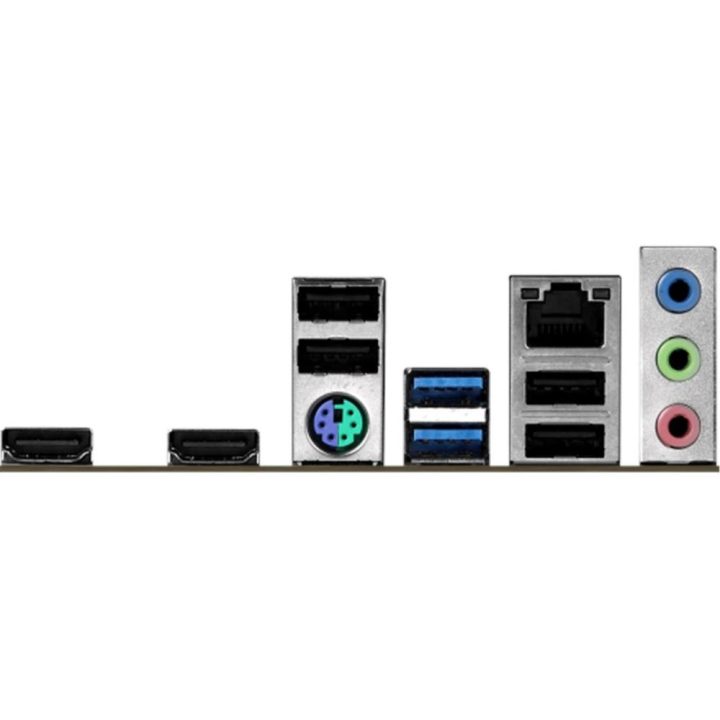

Regarding connectivity, it features a Gigabit Ethernet port controlled by Realtek 8111H, without Wi-Fi. It offers two HDMI outputs for video and four SATA III connectors for storage, in addition to support for M.2 drives. The rear panel integrates four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, an RJ-45 connector, PS/2, and audio jacks. Internally, it includes PCI Express x16 Gen 4.x and x1 Gen 3.x slots, along with connectors for fans, TPM, and front panels.

• Support for Intel processors with LGA 1700 socket
• Two DDR5 memory slots with a maximum capacity of 96 GB
• Four SATA III connectors and support for M.2 drives
• Two HDMI ports and Gigabit Ethernet connectivity
• PCI Express x16 Gen 4.x slot for graphics cards
