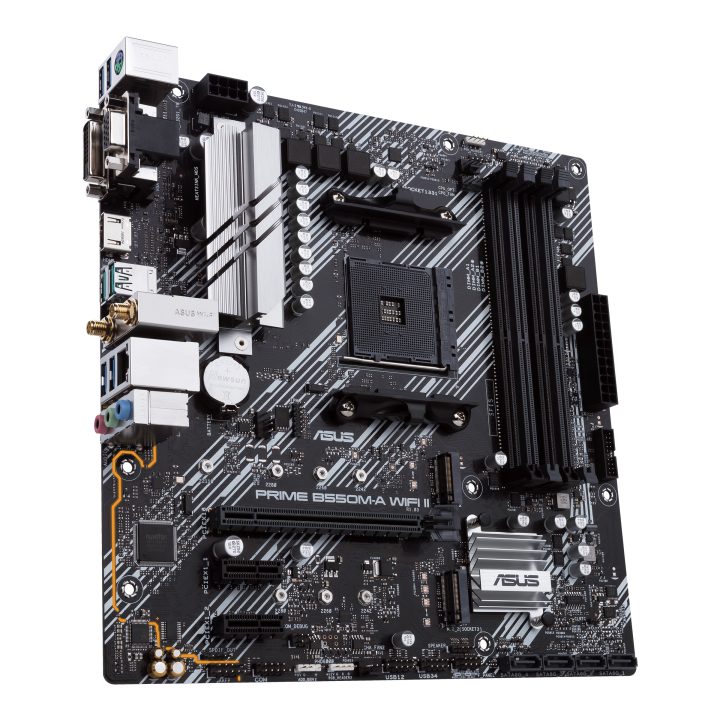

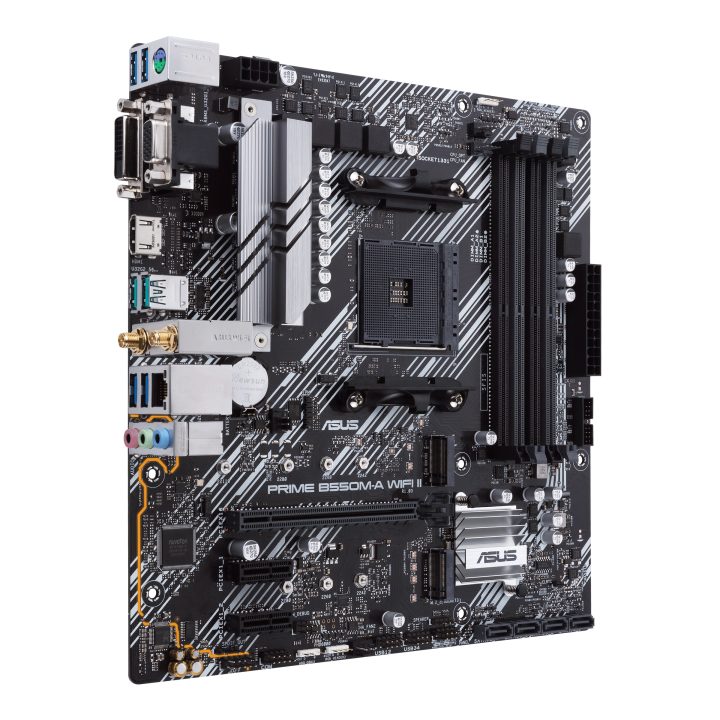

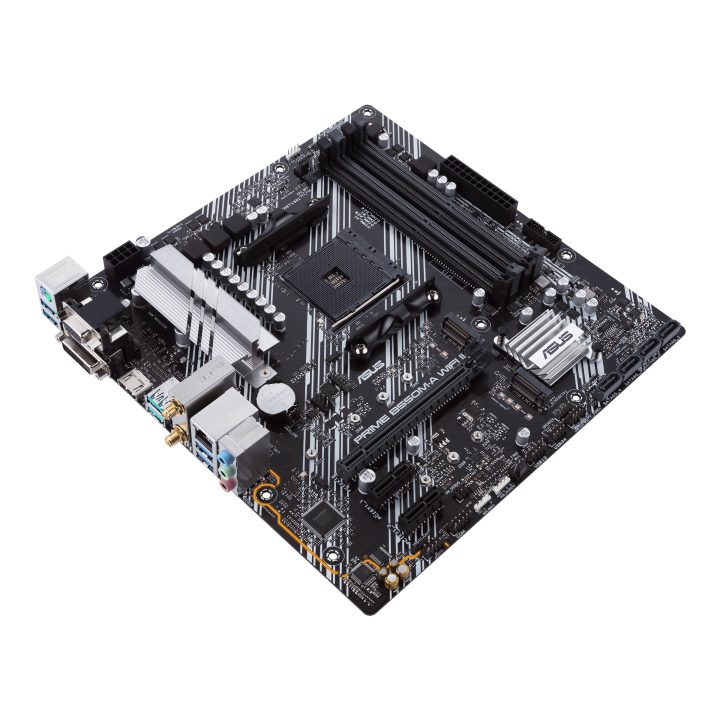

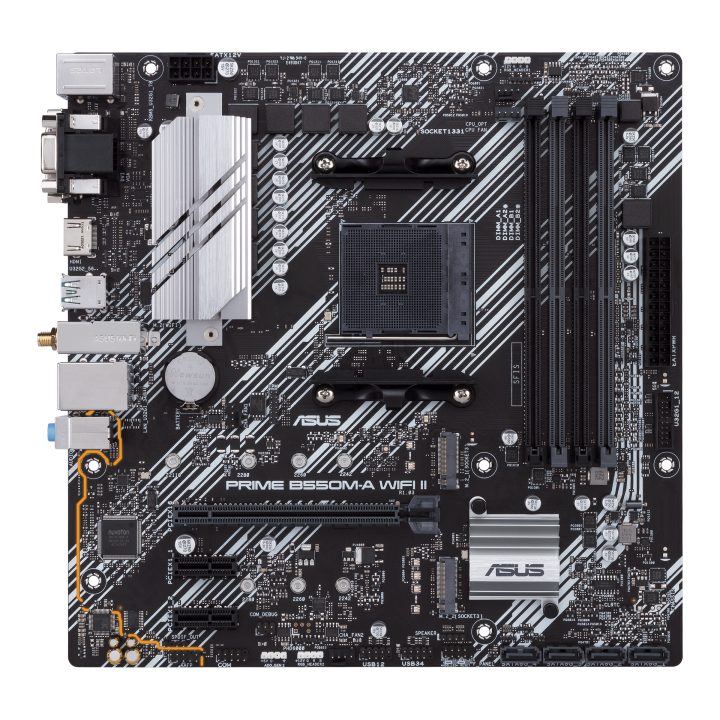

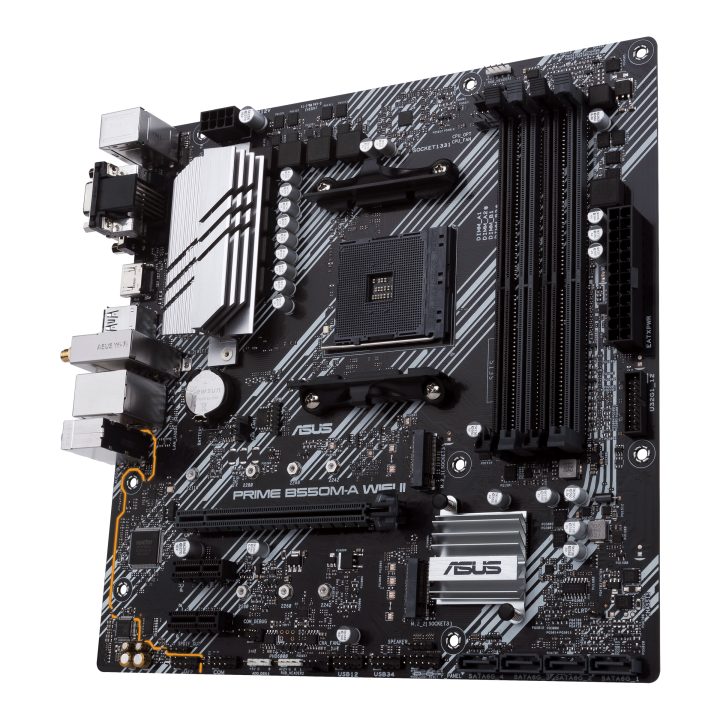

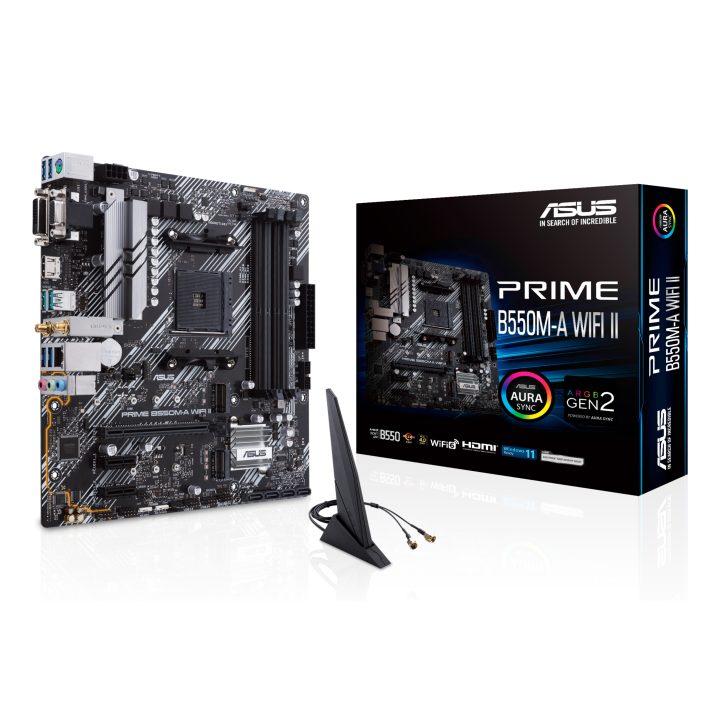

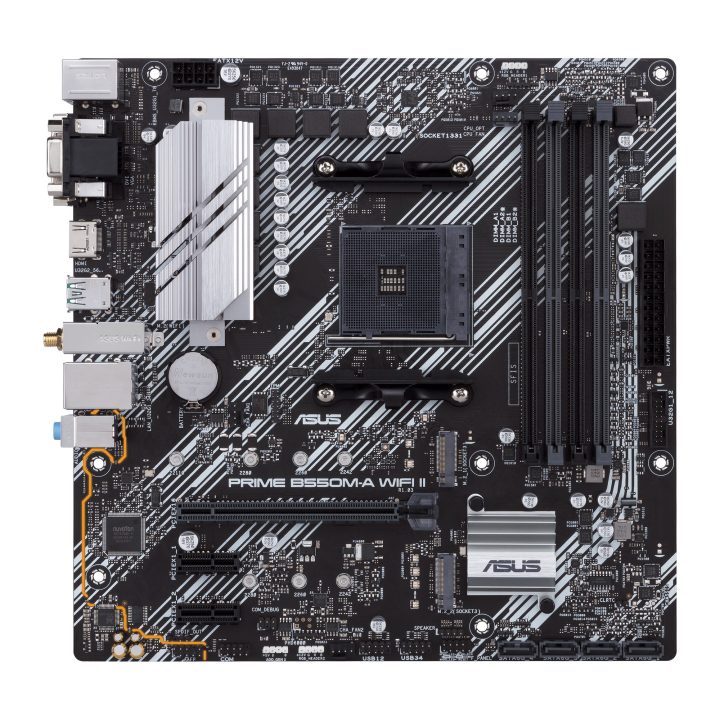

ASUS PRIME B550M-A WIFI II AMD B550 AM4 Socket Micro ATX

This ASUS PRIME B550M-A WIFI II motherboard is designed for AMD processors with the AM4 socket, compatible with the Ryzen 3000 and 5000 series. Its Micro-ATX form factor allows it to be integrated into compact systems, offering support for DDR4 memory in four DIMM slots, reaching a maximum capacity of 128 GB. The AMD B550 chipset manages communication between components, while connectivity is expanded through Wi-Fi 6 and Gigabit Ethernet.

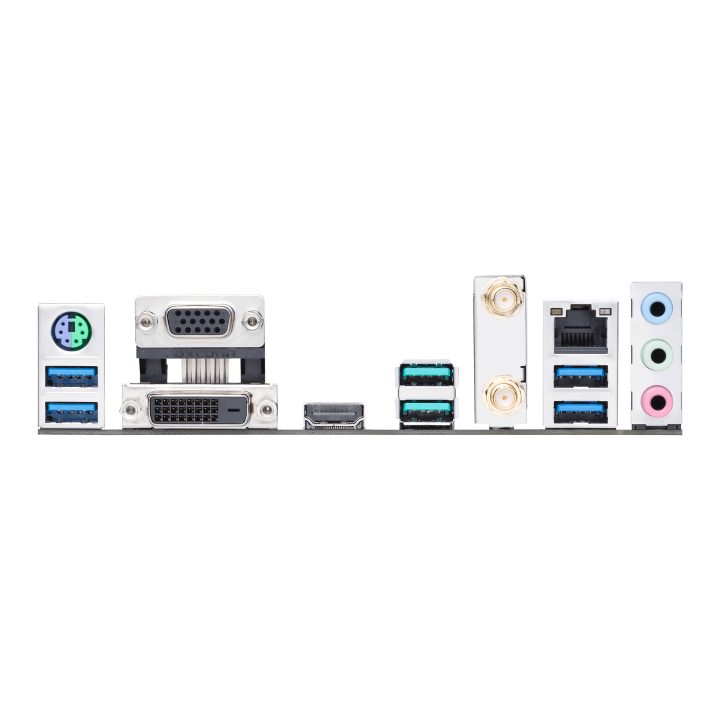

Storage is handled via two M.2 slots compatible with PCI Express 3.0 and 4.0, in addition to four SATA III connectors for HDD and SSD drives. It supports RAID 0, 1, and 10 configurations to improve performance or data security. Video output is provided by an HDMI port, and peripheral connections include USB Type-A ports. Its dimensions are 244 mm in width and depth, with a weight of 0.845 kg.

• AM4 socket compatible with Ryzen 3000 and 5000
• Four DDR4 slots supporting up to 128 GB
• Wi-Fi 6 and Gigabit Ethernet connectivity
• Two M.2 slots and four SATA III ports
• Support for RAID 0, 1, and 10
