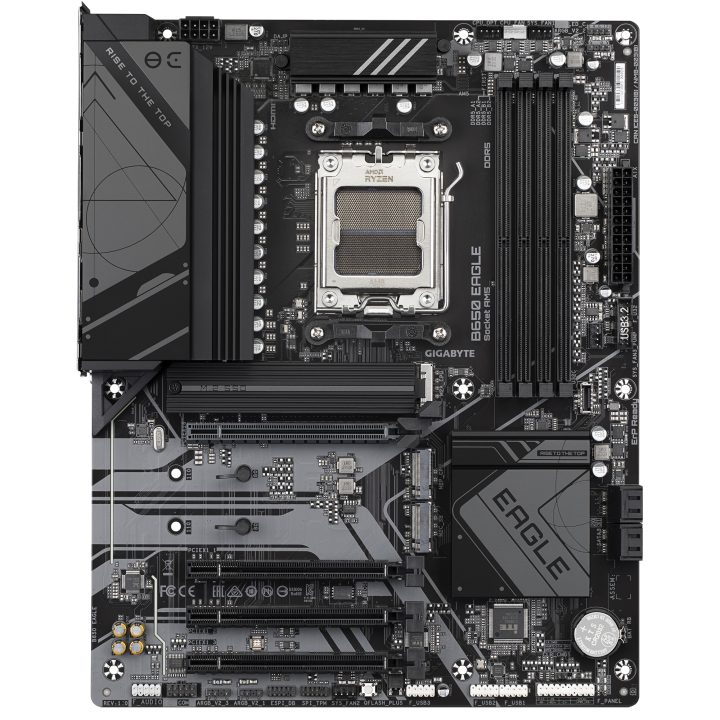

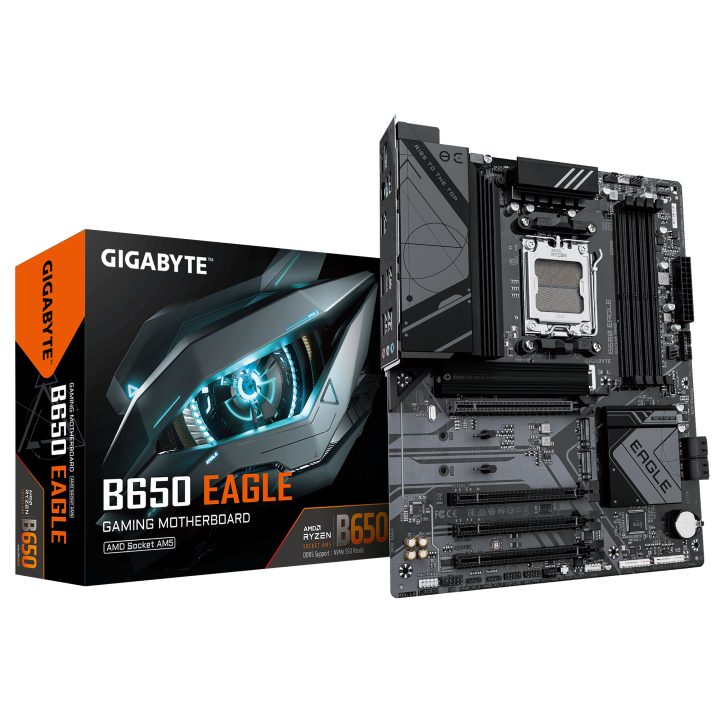

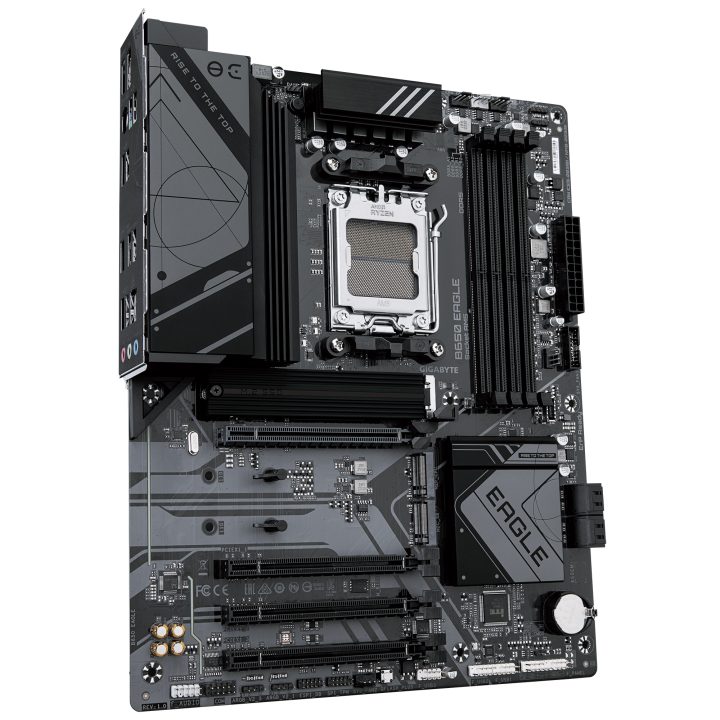

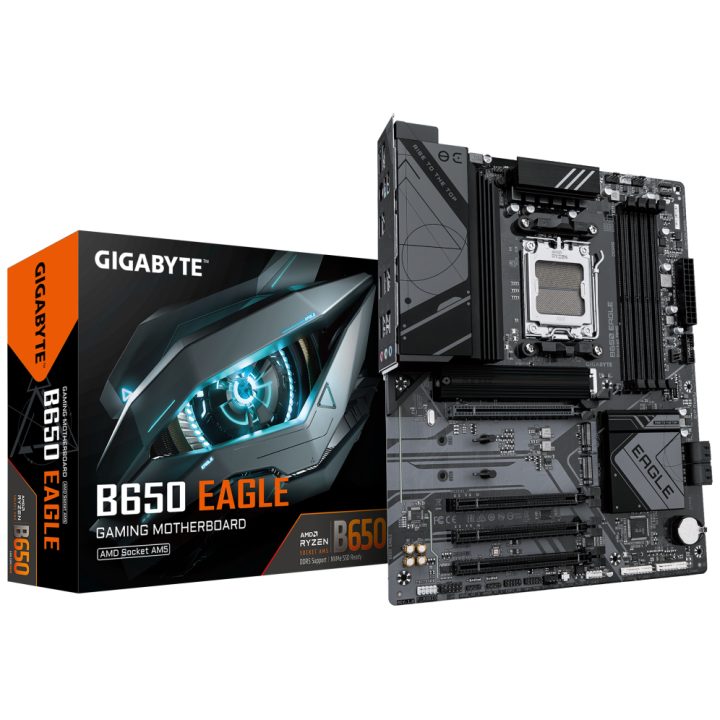

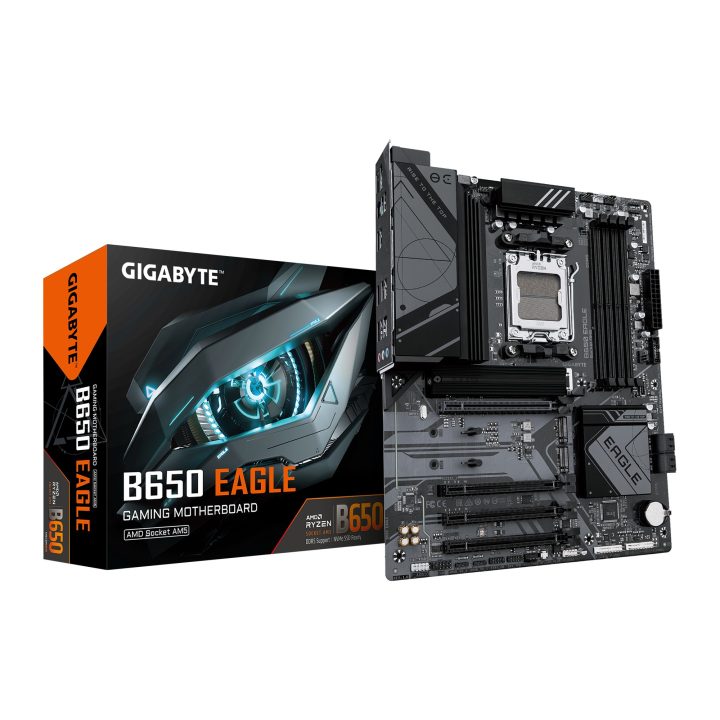

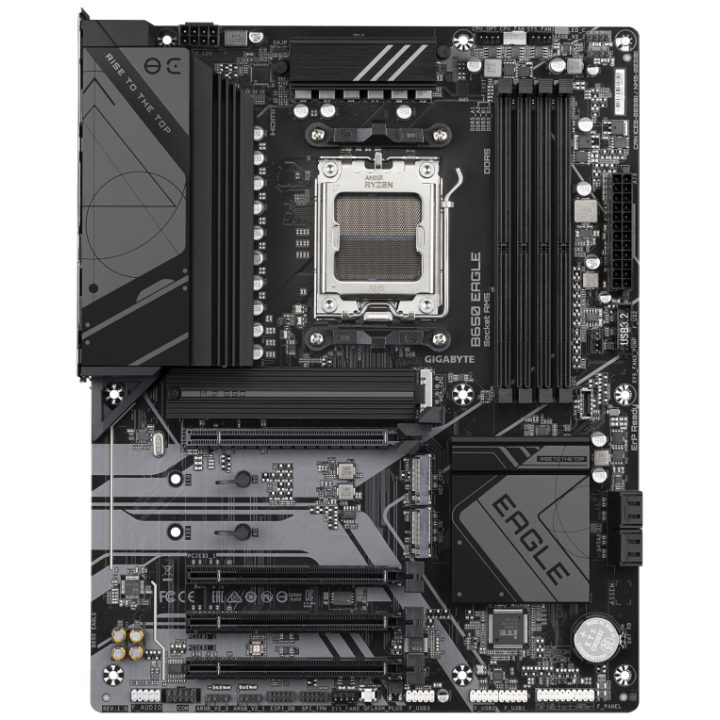

GIGABYTE B650 EAGLE Motherboard - AMD Ryzen 9000 Series, 12+2+2 Phase VRM, up to 7600 MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2

This ATX-format motherboard is designed for AMD processors with the AM5 socket, including the Ryzen 9000 series. It features a 12+2+2 phase VRM power system and supports DDR5 memory with speeds of up to 7600 MHz via overclocking. It has four memory slots that support a maximum of 256 GB, allowing for high-capacity configurations.

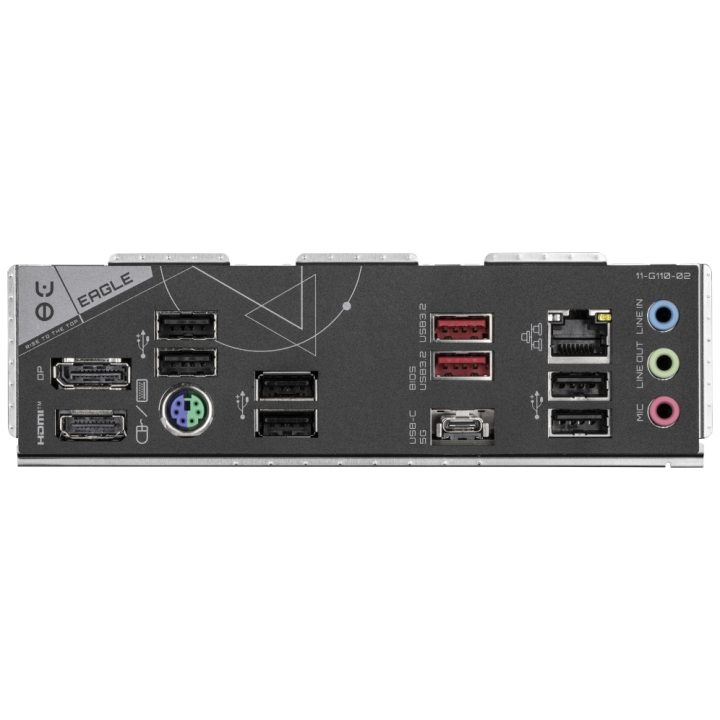

Regarding storage, it integrates three M.2 slots, one with a PCIe 5.0 interface and two with PCIe 4.0, in addition to four SATA III connectors. Connectivity includes a Gigabit Ethernet network card and USB 3.2 Gen 2 ports. The rear panel offers an HDMI video output and is compatible with RAID 0, 1, and 10 levels. Its dimensions are 305 mm wide, 244 mm deep, and 35 mm high.

• AMD B650 chipset with AM5 socket
• Support for DDR5 memory up to 7600 MHz (OC)
• Three M.2 slots with PCIe 5.0 and 4.0 interfaces
• Gigabit Ethernet and USB 3.2 Gen 2 connectivity
• ATX format with dimensions of 305 x 244 mm
