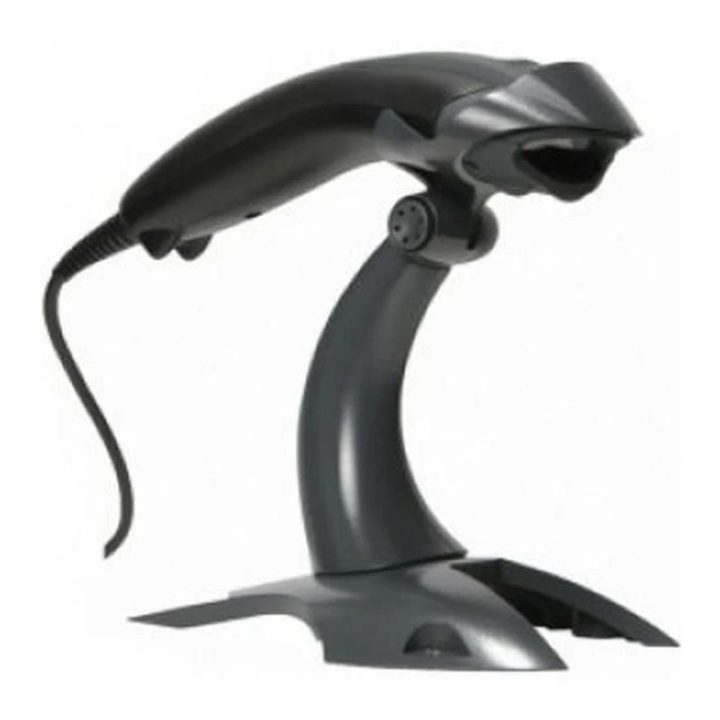

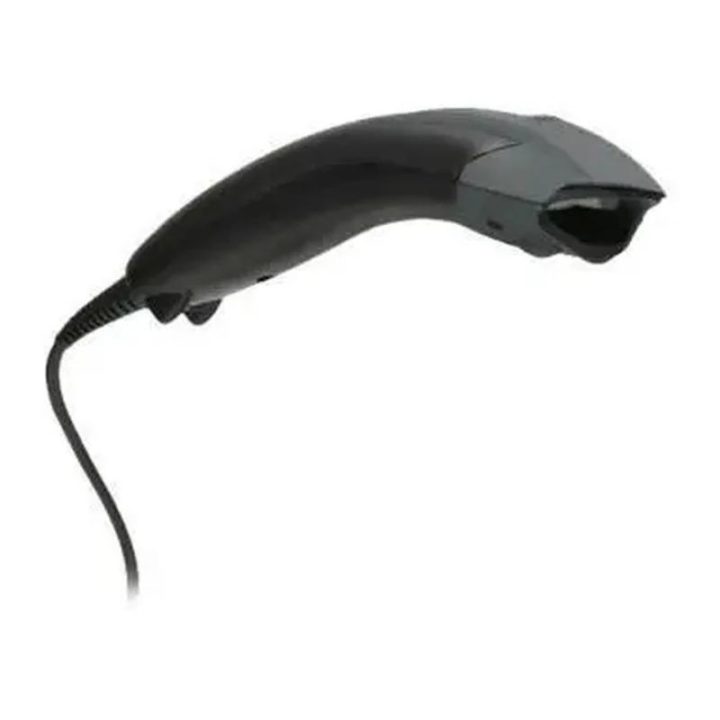

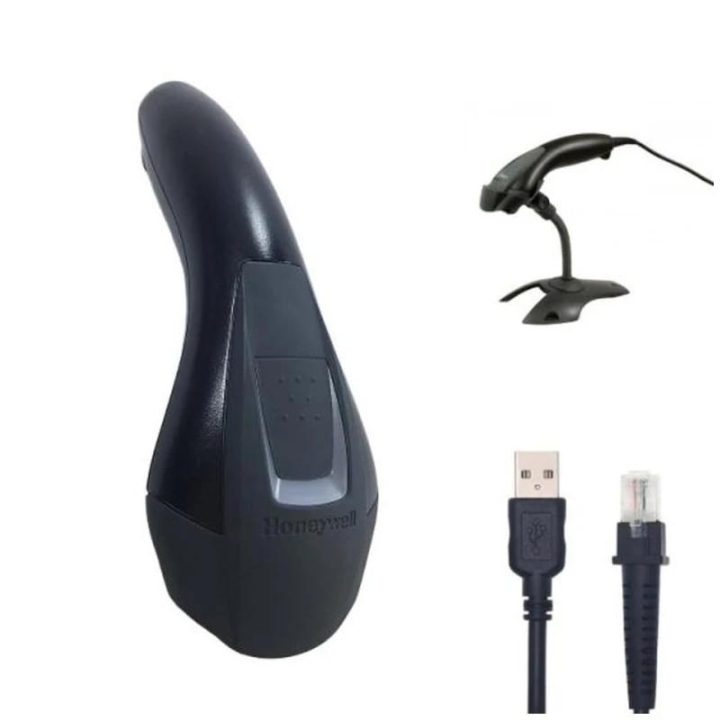

Honeywell Voyager 1400GSR Barcode Scanner (1400GSR-2USB-1E)

This Honeywell Voyager 1400GSR barcode scanner uses area imaging technology with a resolution of 640 x 480 pixels. It is compatible with 1D, PDF417, and 2D symbologies, allowing code reading with a motion tolerance of up to 10 cm/s. Its scan angle is 37.8 degrees horizontally and 28.9 degrees vertically, with a minimum required contrast of 35% reflectance difference.

The device features USB, keyboard wedge, RS-232, and IBM 46xx (RS485) connectivity interfaces. It operates with an input voltage of 4.0 V to 5.5 V DC, consuming 2 W during operation and 0.45 W in standby. It has an IP42 protection rating and operates at temperatures from 0 °C to 40 °C. Its dimensions are 180 x 66 x 43 mm and its weight is 119 g.

• 640 x 480 pixel area imaging technology
• Compatible with 1D, PDF417, and 2D symbologies
• Motion tolerance up to 10 cm/s
• USB, keyboard wedge, RS-232, and IBM 46xx connectivity
• IP42 protection rating
• Dimensions of 180 x 66 x 43 mm and weight of 119 g
