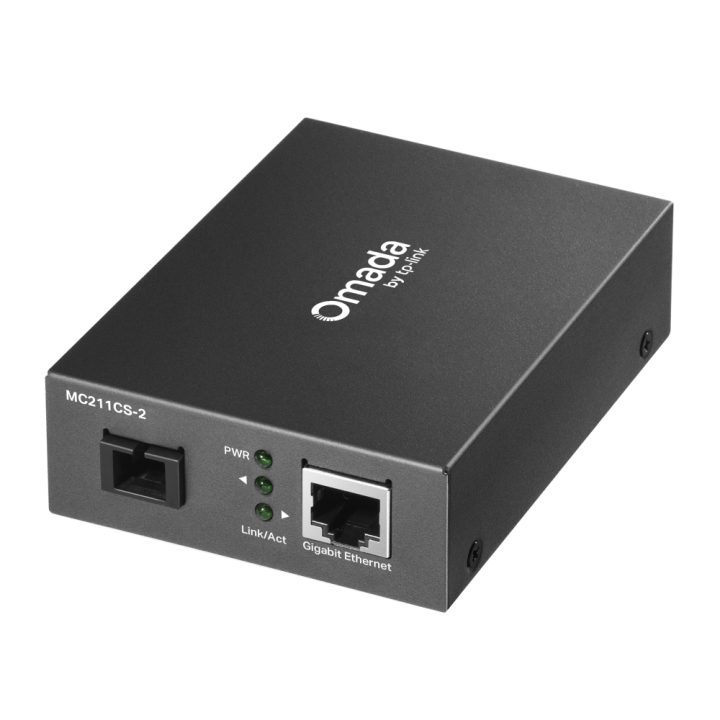

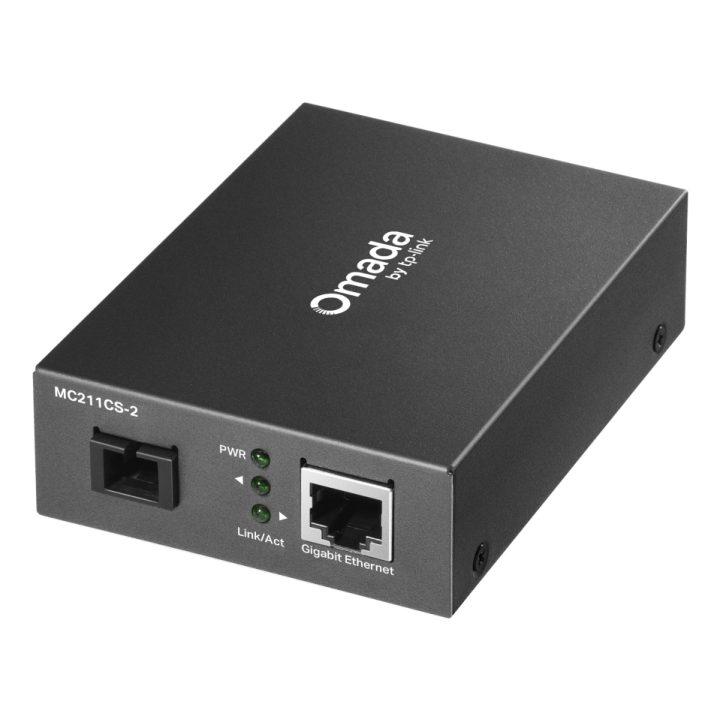

TP-Link Omada MC211CS-2 Media Converter 1000 Mbit/s 1310 nm Single-mode Black

The TP-Link Omada MC211CS-2 is a media converter designed for network environments that require single-mode fiber optic connectivity. This device operates at a data transfer rate of 1000 Mbit/s and uses a wavelength of 1310 nm. Its fiber connector is SC/UPC type, facilitating integration into existing infrastructures. The unit supports full and half-duplex systems, with compatibility with various network standards such as IEEE 802.3, 802.3ab, 802.3i, 802.3u, 802.3x, and 802.3z.

Regarding its physical and electrical specifications, the converter is black and has dimensions of 94.5 mm wide, 27 mm high, and 73 mm deep. The maximum supported transfer distance is 20,000 m. The device operates with an input voltage of 9 V and an input current of 0.6 A. It includes LED indicators to display activity, link, and power status, allowing for visual monitoring of the data link operation.

• 1000 Mbit/s transfer speed
• Maximum range of 20,000 m on single-mode fiber
• SC/UPC fiber optic connector
• 1310 nm wavelength
• Activity, link, and power LED indicators
• Dimensions of 94.5 x 27 x 73 mm
