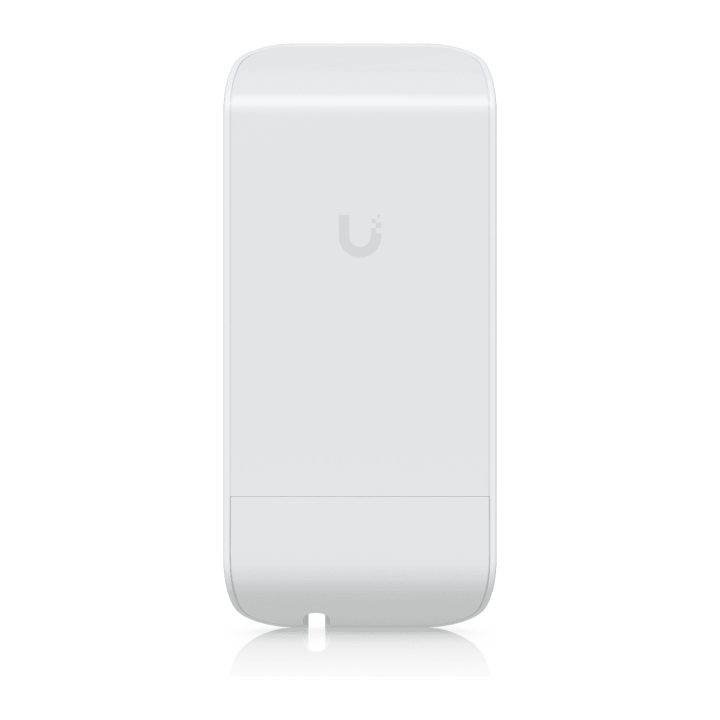

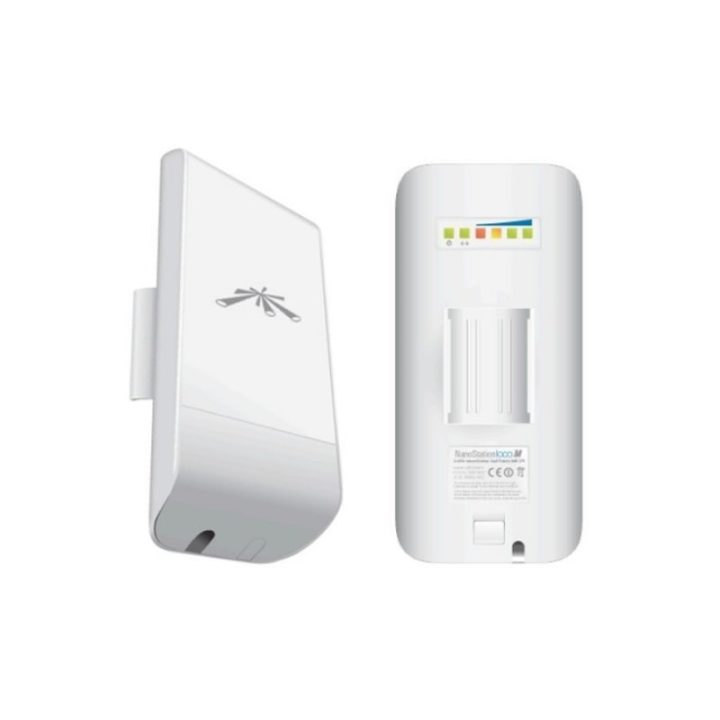

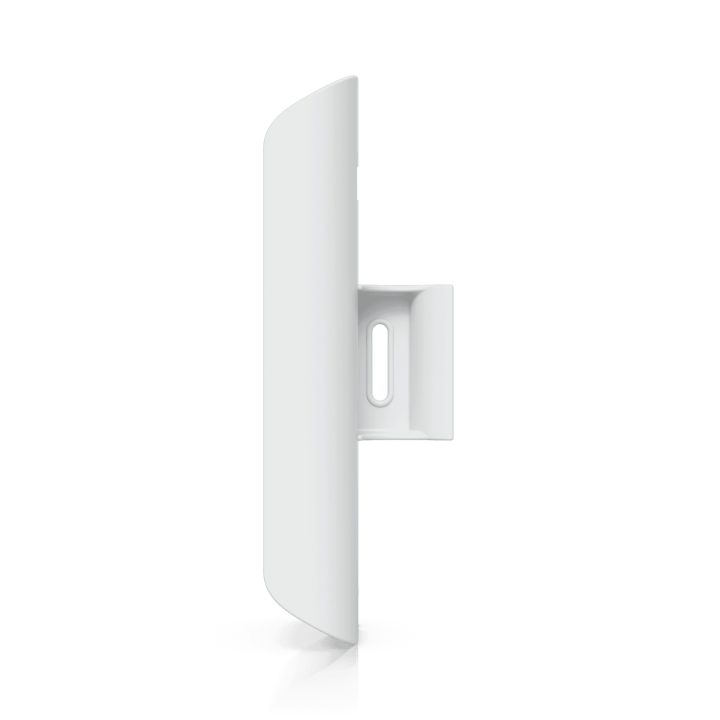

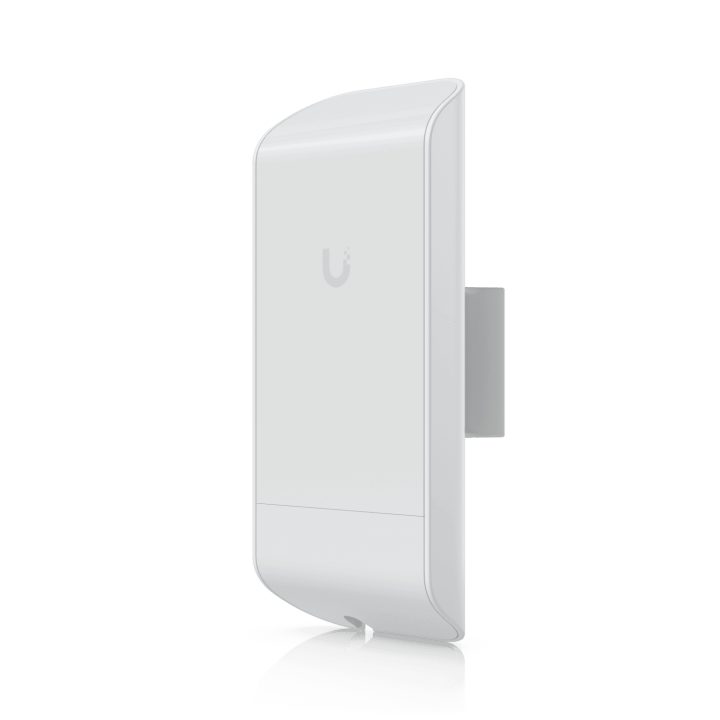

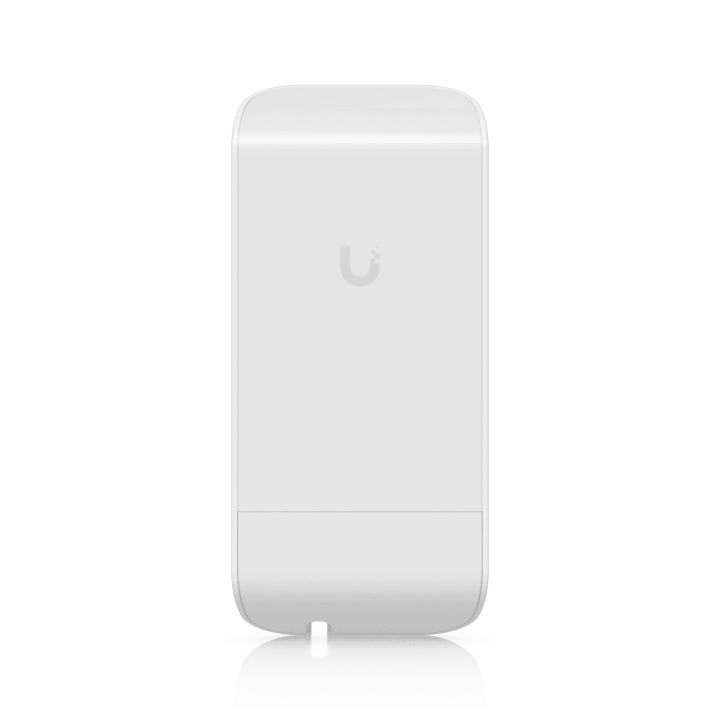

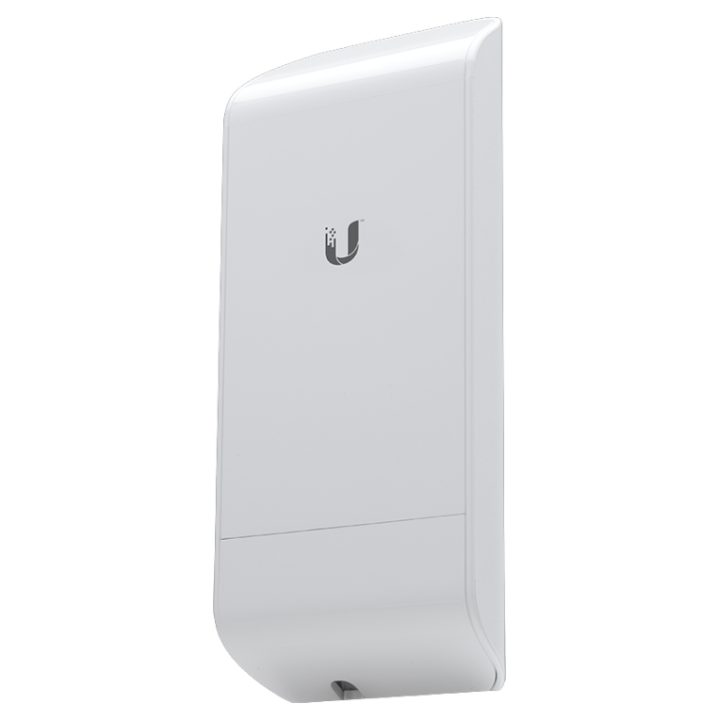

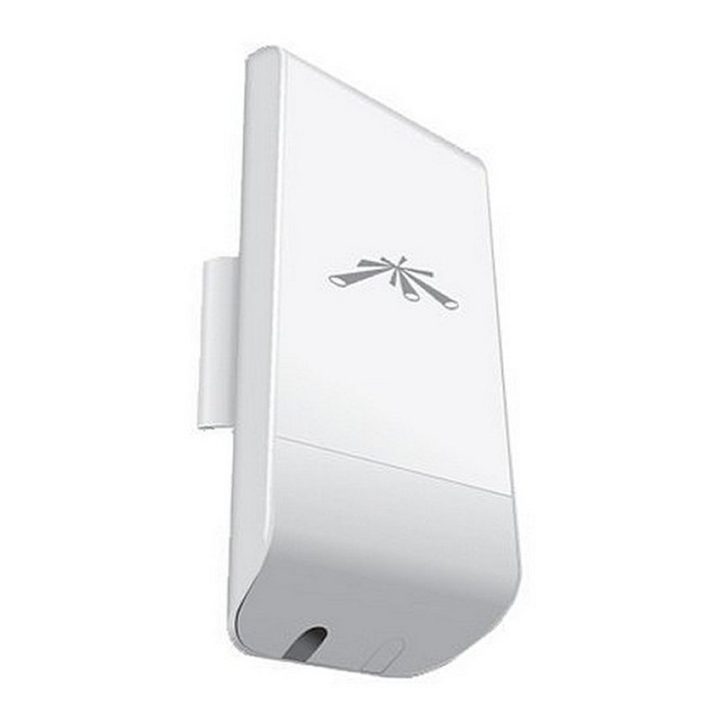

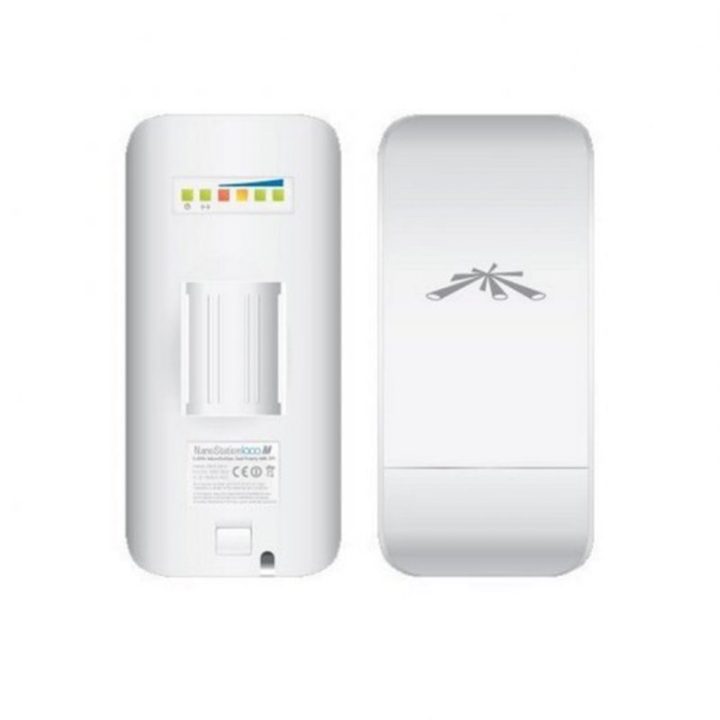

Ubiquiti LOCOM5 airmax 5GHz CPE Antenna 13dBi 200mW

The Ubiquiti LOCOM5 airmax antenna is a 5GHz station device that operates with 2x2 MIMO technology and the AirMax TDMA protocol. It integrates an Atheros MIPS 24KC processor at 400MHz, along with 32MB of SDRAM memory and 8MB of Flash. Its network interface features a 10/100 BASE-TX port compatible with Cat. 5 cable and an RJ-45 connector, allowing direct connection to conventional network equipment.

The unit has dimensions of 163 x 31 x 80 mm and weighs 0.18 kg. The housing is made of weather-resistant plastic stabilized with UV protection, facilitating outdoor use. It includes a mast mounting kit and a passive PoE adapter for power via pairs 4,5+ and 7,8. Its maximum power consumption is 5.5 watts, operating with a 24V and 0.5A power supply. The operating temperature range spans from -30°C to +80°C, with a supported relative humidity between 5% and 95%.

• Operation in the 5GHz band with 2x2 MIMO technology and AirMax TDMA protocol
• 13dBi antenna gain and 200mW transmission power
• Atheros MIPS 24KC processor at 400MHz with 32MB of SDRAM memory
• Weather-resistant plastic housing stabilized with UV protection
• Power via Passive Power over Ethernet with included adapter
• Operating temperature range from -30°C to +80°C
