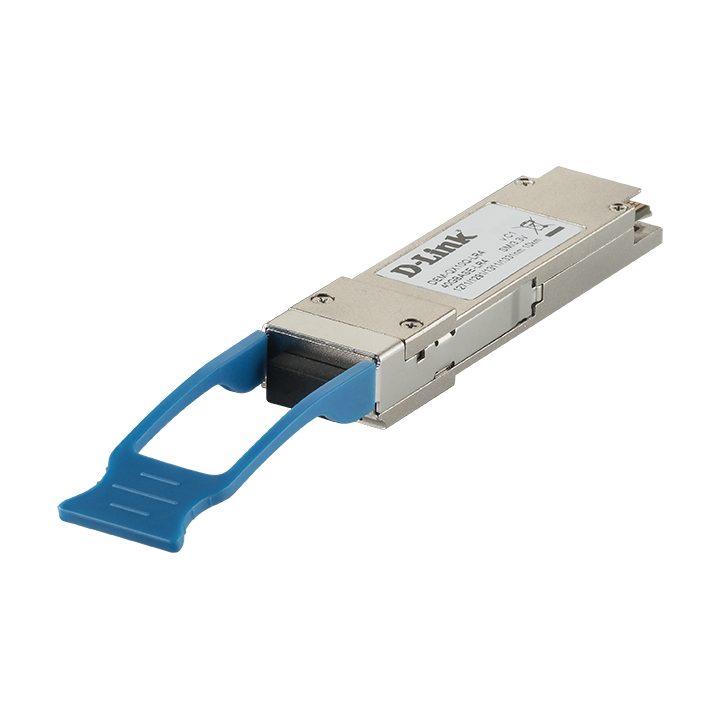

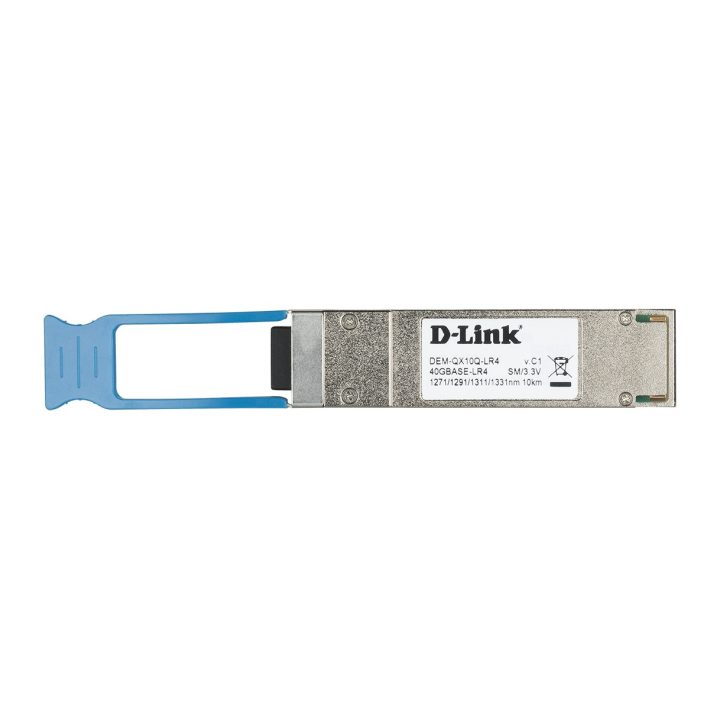

D-Link DEM-QX10Q-LR4 Fiber Optic Transceiver Module 40000 Mbit/s QSFP+ 1310 nm

This D-Link fiber optic transceiver module is designed for QSFP+ interfaces, enabling data transmissions at a speed of 40000 Mbit/s. It uses a wavelength of 1310 nm and LC-type fiber connectors, facilitating its integration into high-capacity network infrastructures.

The device supports a maximum transmission distance of 10000 m and operates with a maximum voltage of 3.3 V and a maximum current of 1.13 A. Its dimensions are 18.4 mm wide, 12.9 mm high, and 118 mm deep, with a weight of 0.04 kg. It features a blue and silver finish and has conformity certifications such as RoHS, FCC Class B, CE Class B, and VCCI Class B.

• QSFP+ interface with a speed of 40000 Mbit/s
• LC fiber connector with a wavelength of 1310 nm
• Maximum transmission distance of 10000 m
• Dimensions of 18.4 x 12.9 x 118 mm and weight of 0.04 kg
• Maximum voltage of 3.3 V and maximum current of 1.13 A
• RoHS, FCC Class B, CE Class B, and VCCI Class B certifications
