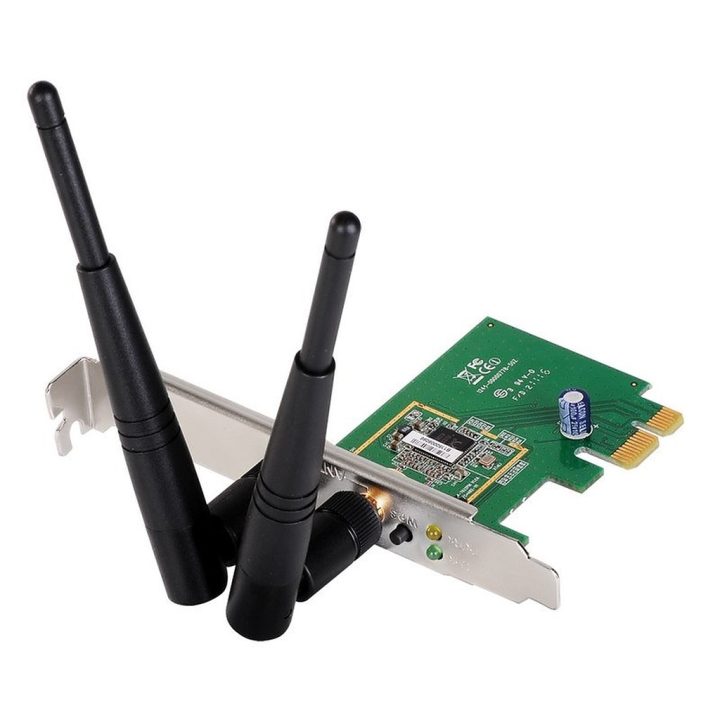

Edimax EW-7612PIN V2 N300 PCI-E WiFi Network Card

This internal network card allows you to connect a desktop computer to a wireless network via its PCI Express interface. It offers compatibility with IEEE 802.11b, 802.11g, and 802.11n standards, achieving transfer rates of up to 300 Mbps on the 2.4 GHz band. Its design includes two detachable high-gain 3dBi antennas, facilitating adaptation to different installation environments.

The device features hardware buttons for WPS configuration and RP-SMA connectors for the antennas. In terms of security, it supports WEP, WPA, WPA2, and IEEE 802.1x protocols with 64 or 128-bit encryption. Output power varies depending on the standard used, standing at 12 dBm for 11n and 11g, and 16 dBm for 11b. The dimensions of the board, excluding the antennas, are 22 x 121 x 88 mm.

• PCI Express interface with two detachable 3dBi antennas
• Support for IEEE 802.11b/g/n standards on the 2.4 GHz band
• Transfer rates of up to 300 Mbps in 11n mode
• Security with WEP, WPA, WPA2, and IEEE 802.1x
• Quick setup via hardware WPS button
