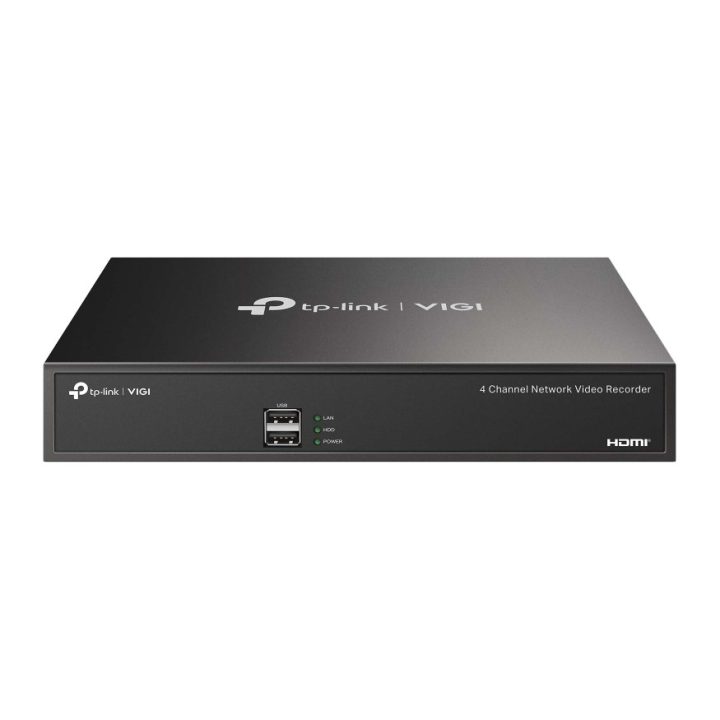

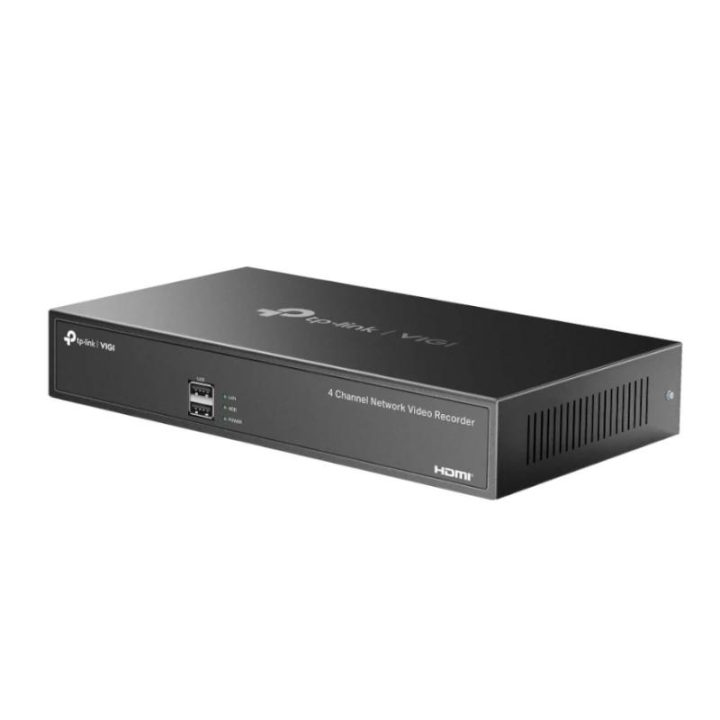

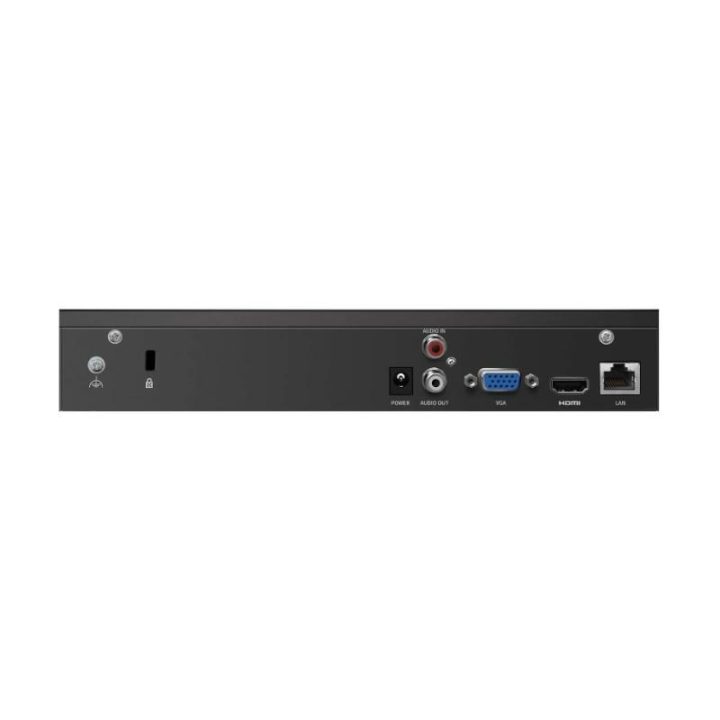

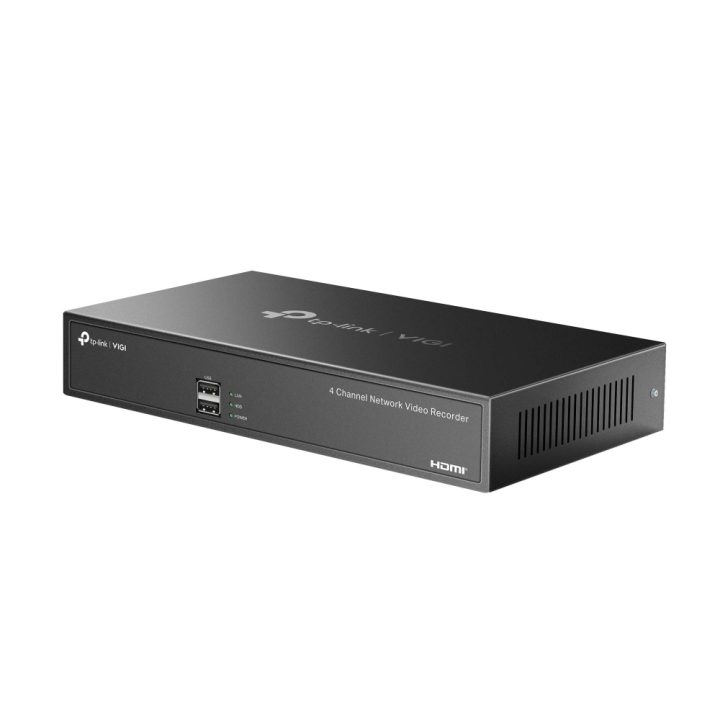

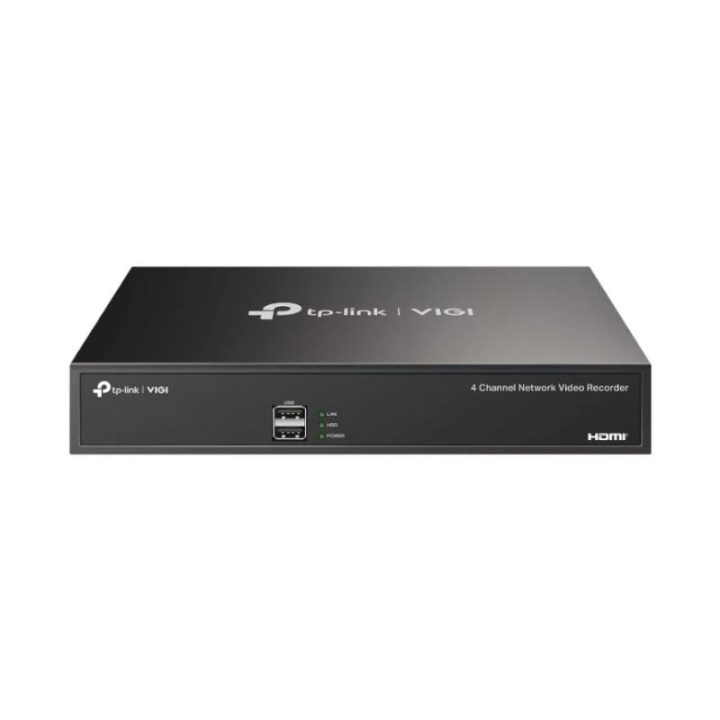

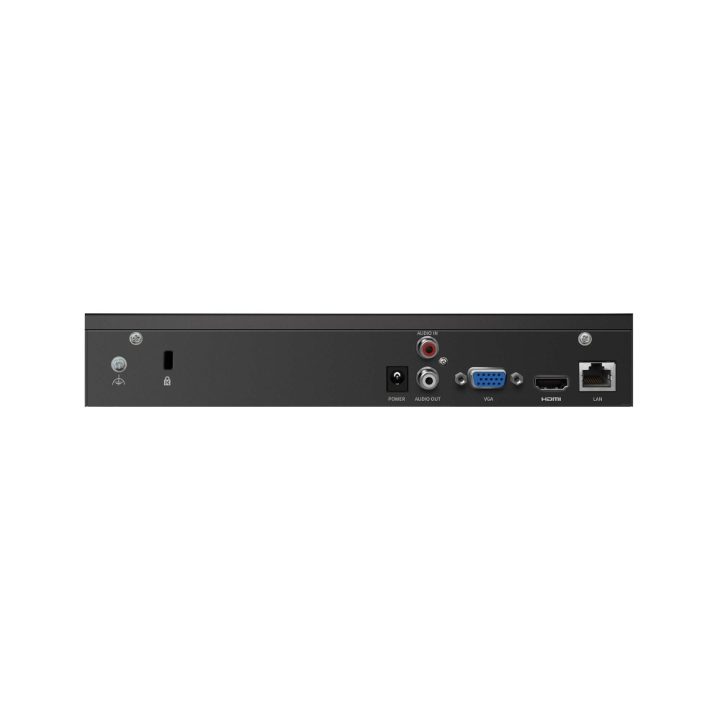

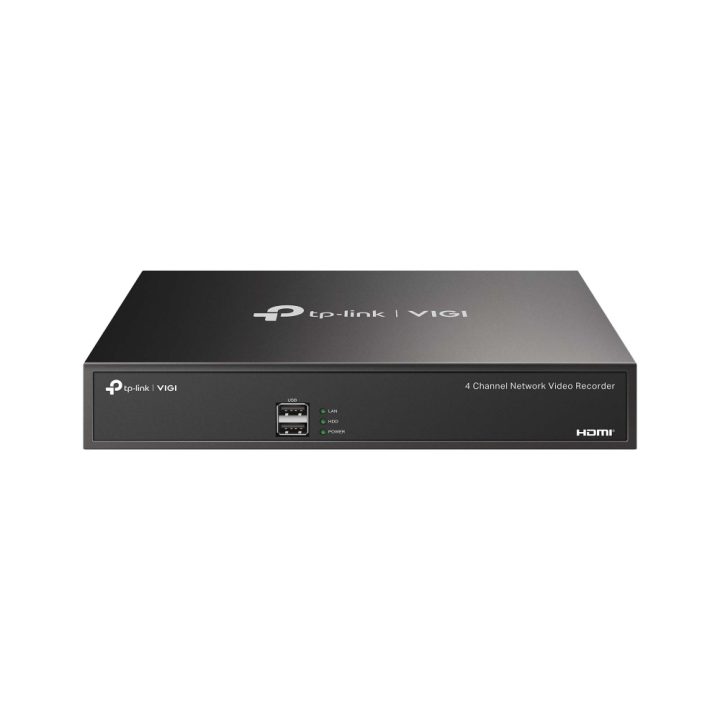

TP-Link VIGI NVR1004H Black

The TP-Link VIGI NVR1004H is a network video recorder designed to manage video surveillance systems with up to 4 input channels. This device supports a maximum resolution of 3840 x 2160 pixels, allowing recording in 720p, 1080p, and 2160p formats. Its architecture supports H.264, H.264+, H.265, and H.265+ compression codecs, optimizing incoming bandwidth usage, which reaches 80 Mbit/s.

Regarding its physical and technical configuration, the unit features a SATA interface for hard drives, offering a maximum storage capacity of 10,000 GB. It includes an HDMI output for local image viewing. The device has a compact form factor with dimensions of 246.2 mm wide, 148.2 mm deep, and 45 mm high, weighing 0.59 kg. Its power consumption is 4.25 W, and it is compatible with UPnP and NTP network protocols.

• Management of 4 video channels
• Maximum resolution of 3840 x 2160 pixels
• Storage of up to 10,000 GB via SATA interface
• H.265 and H.265+ video compression
• HDMI output for local viewing
