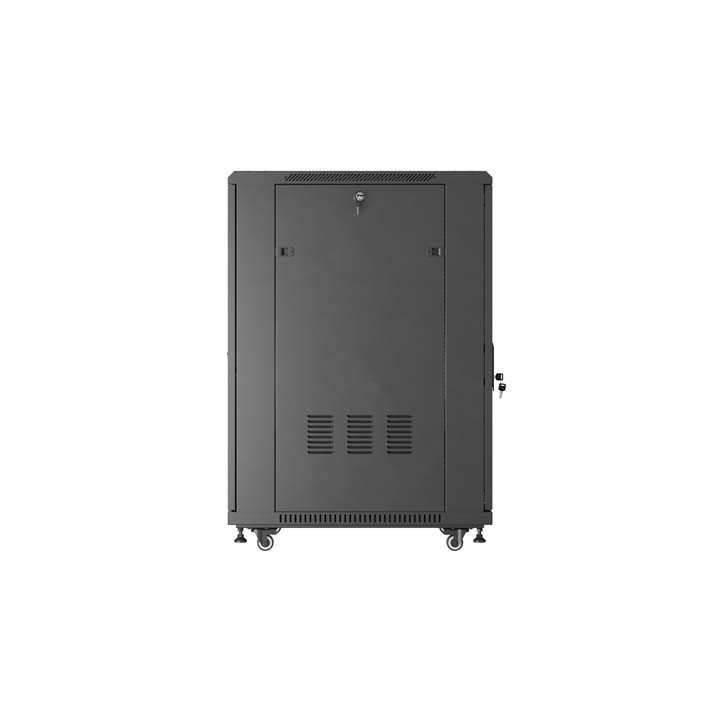

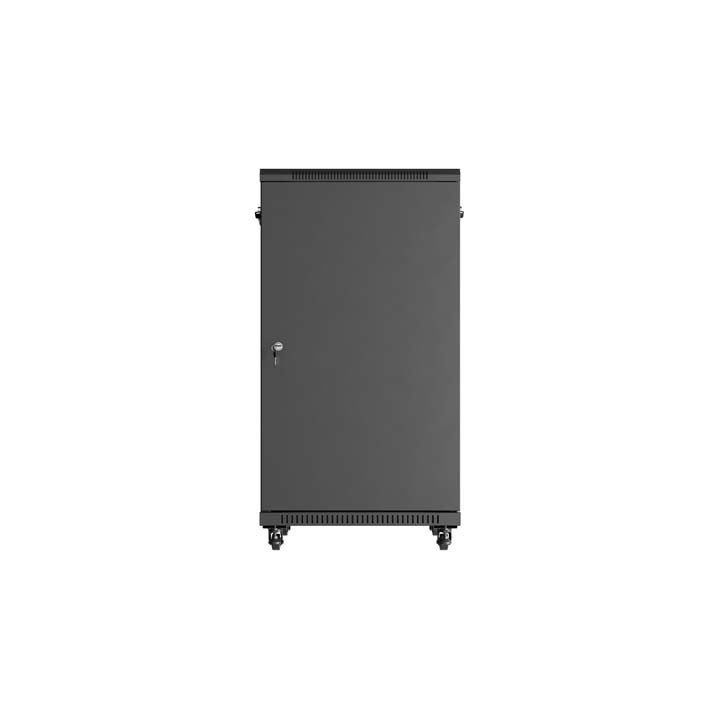

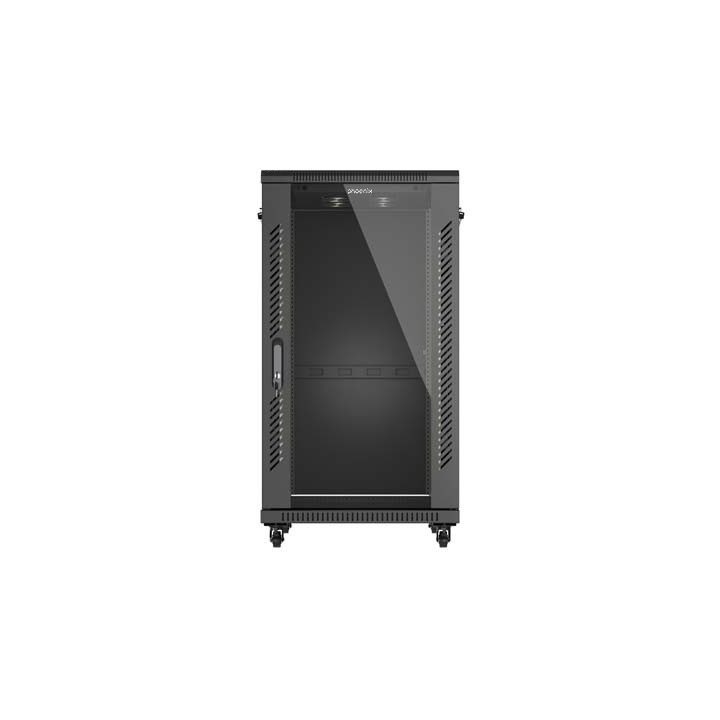

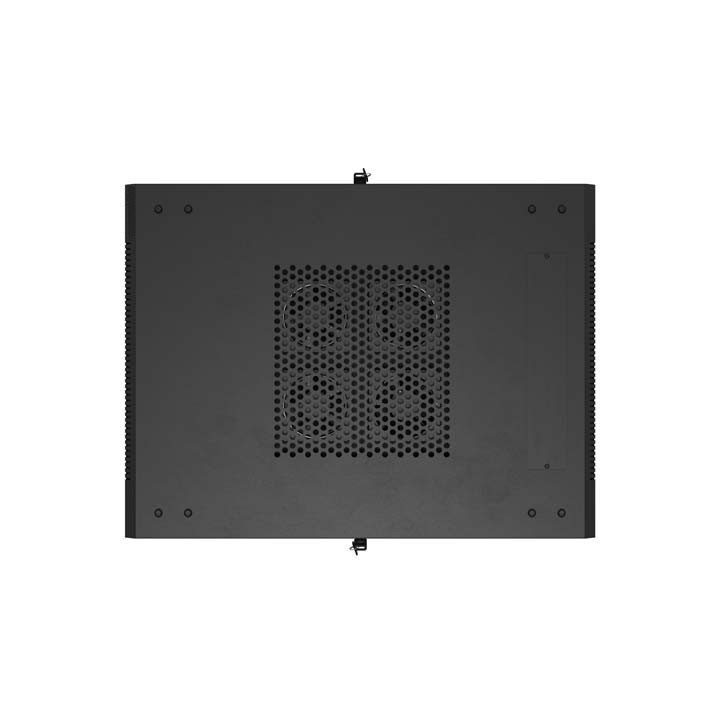

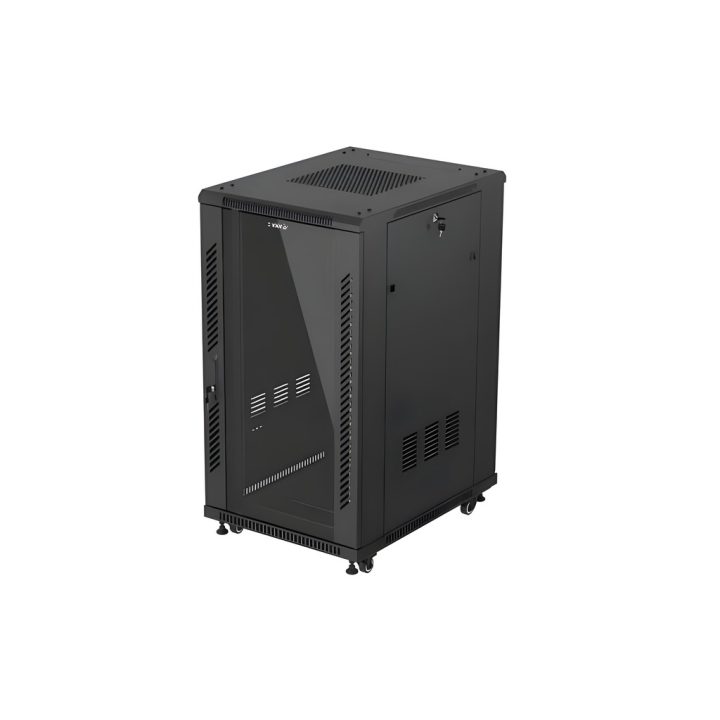

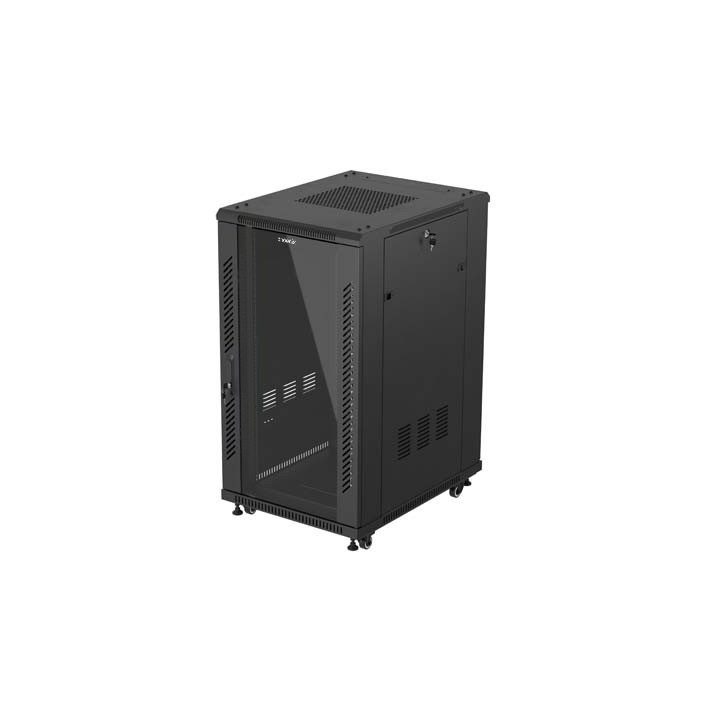

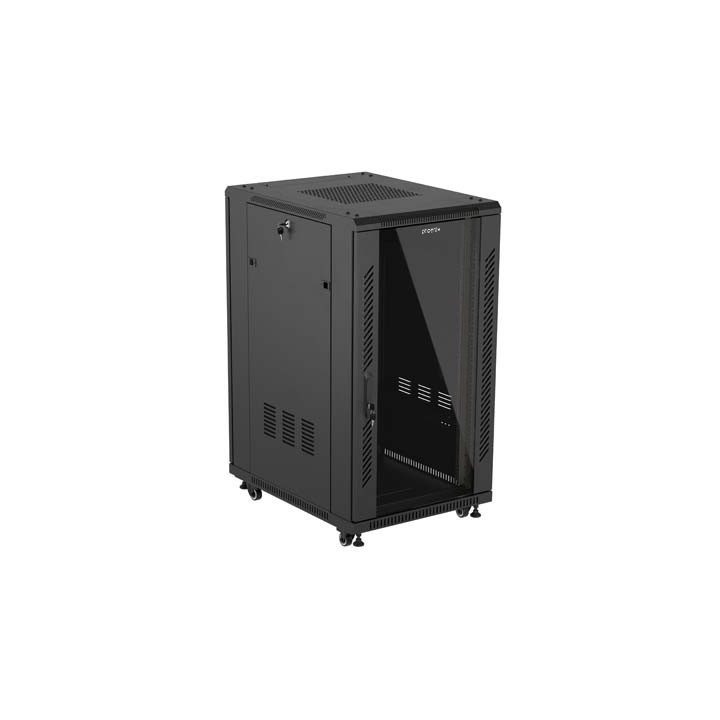

Phoenix Technologies Phoenix 22U 600x800 Floor Standing Server Rack 19'' up to 1000 kg Black (PHTN222800U)

This floor-standing rack cabinet is designed to house network infrastructure and servers in the standard 19-inch format. It offers a capacity of 22U and external dimensions of 600 mm wide by 800 mm deep, allowing the integration of equipment such as switches, servers, storage systems, and UPS units in a single space. Its structure is designed to centralize complete installations, facilitating the organization of professional equipment.

The construction is made of 2.0 mm thick cold-rolled SPCC steel, with a black powder-coated finish and an IP20 protection rating. The maximum load capacity ranges between 800 and 1,000 kg, supporting heavy-duty equipment. The chassis height is 1080 mm, reaching 1153 mm with leveling feet or 1159 mm with casters. The internal usable height for the 22U is 977.9 mm. It features double doors to allow front and rear access during installation and maintenance.

• 22U capacity in standard 19-inch format
• External dimensions of 600 mm wide by 800 mm deep
• Maximum load capacity of 800 to 1,000 kg
• Construction in 2.0 mm cold-rolled SPCC steel
• Internal usable height of 977.9 mm

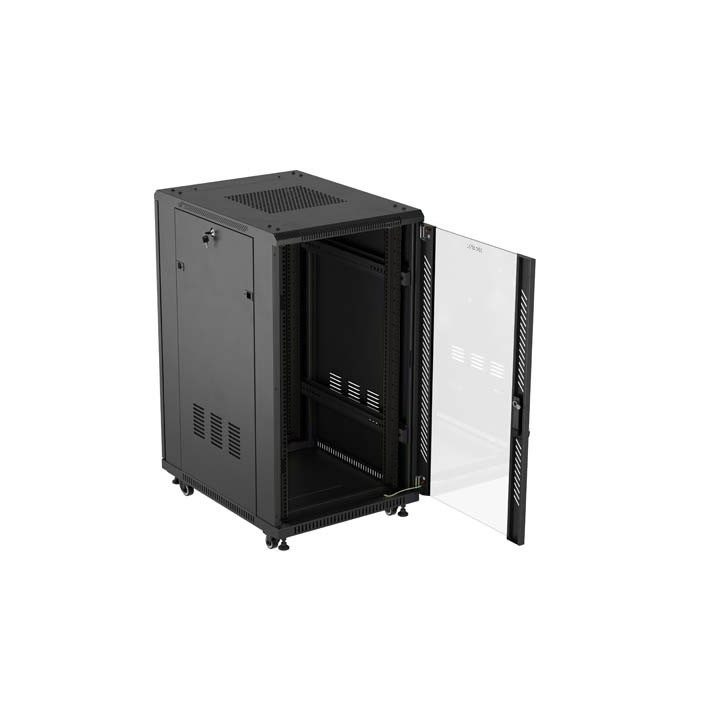

• Double doors for front and rear access
