HUAWEI data communication, S310S 24P4J, S310S 24P4J, S310S 24P4J 24 10/100/1000BASE-T ports 400 W PoE, 4 2.5GE SFP ports, built-

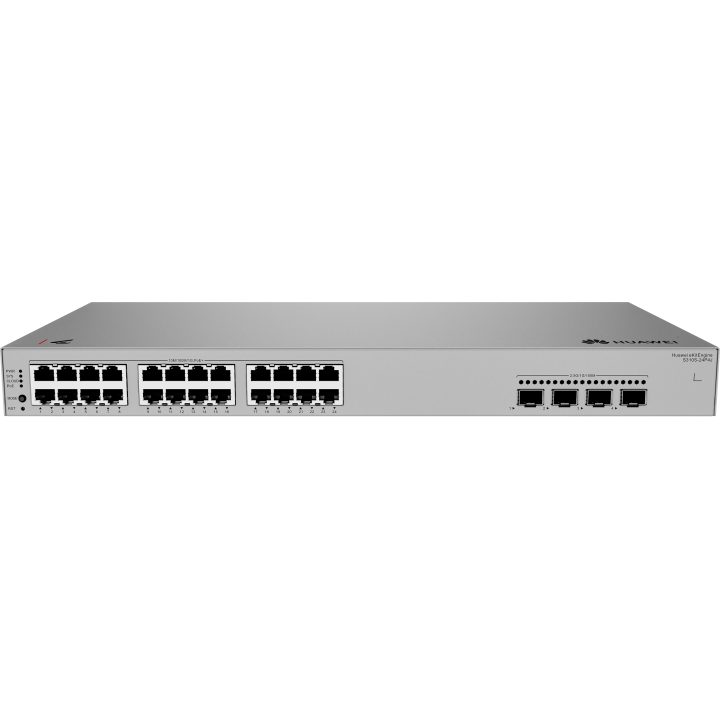

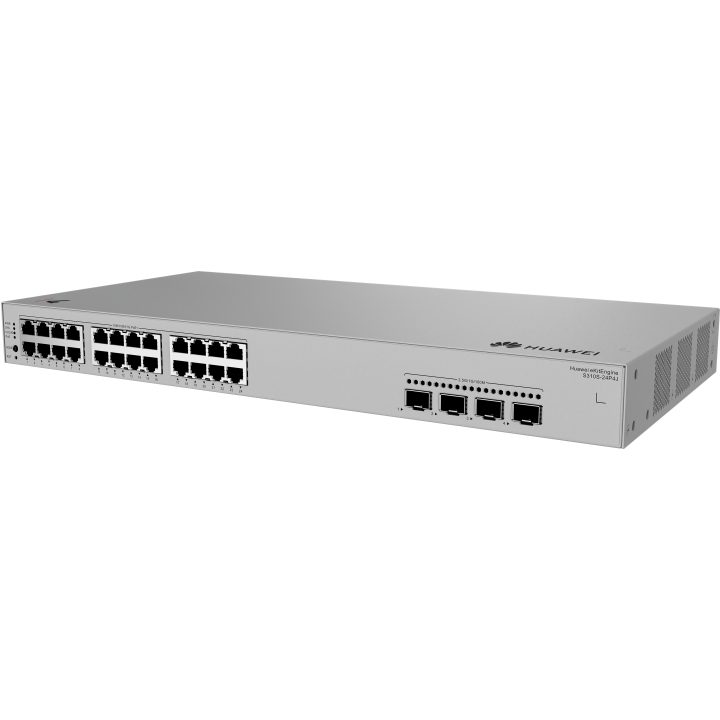

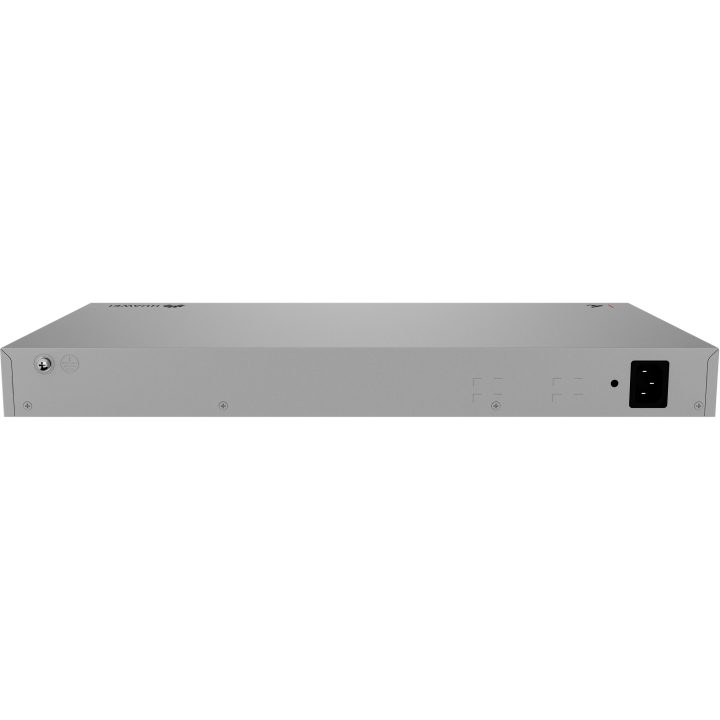

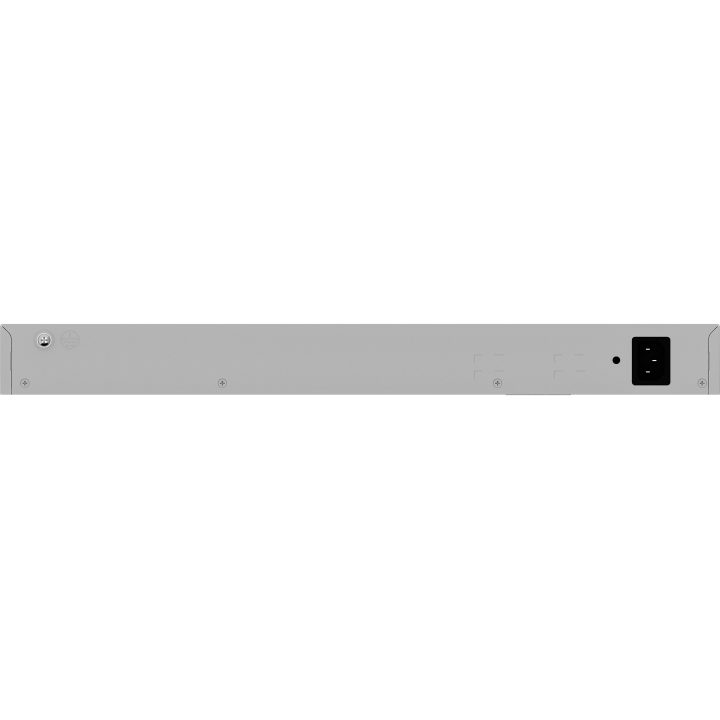

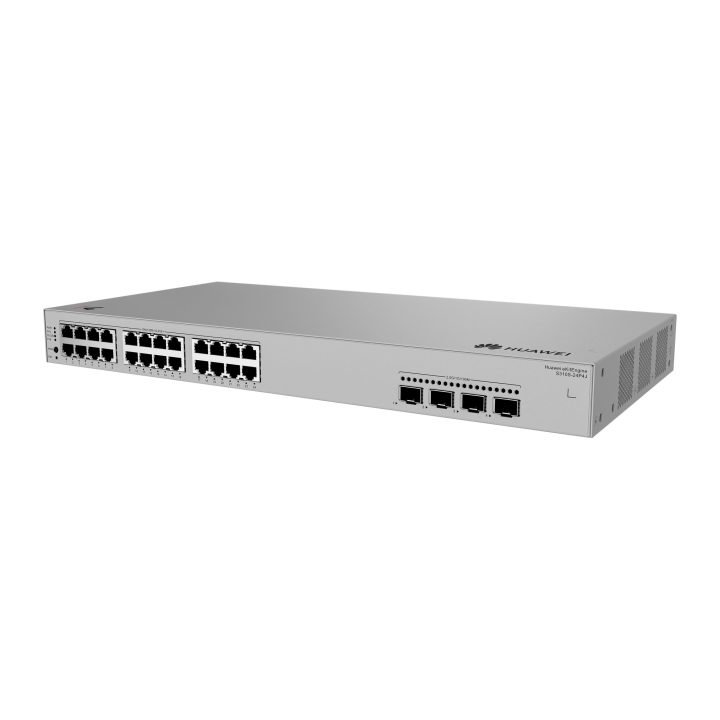

The Huawei S310S 24P4J is an L2+ managed switch designed for network infrastructures that require PoE power and high port density. It features 24 Gigabit Ethernet (10/100/1000) ports with PoE support and a total power budget of 400 W, plus 4 SFP slots that support 2.5 GbE links. Its switching capacity reaches 68 Gbit/s and a forwarding rate of 51 Mpps, with a MAC address table of 16,000 entries.

This device supports VLAN and Quality of Service (QoS), complying with IEEE 802.1D, 802.1s, and 802.1w standards. It includes an integrated AC power supply and is ready for rack mounting. Its dimensions are 442 mm wide, 43.6 mm high, and 220 mm deep, featuring a gray finish.

• 24 Gigabit Ethernet ports with PoE and a 400 W power budget
• 4 SFP slots compatible with 2.5 GbE links
• L2+ management with VLAN and QoS support
• Switching capacity of 68 Gbit/s and forwarding rate of 51 Mpps
• MAC address table of 16,000 entries
• Rack-mount design with integrated AC power supply
