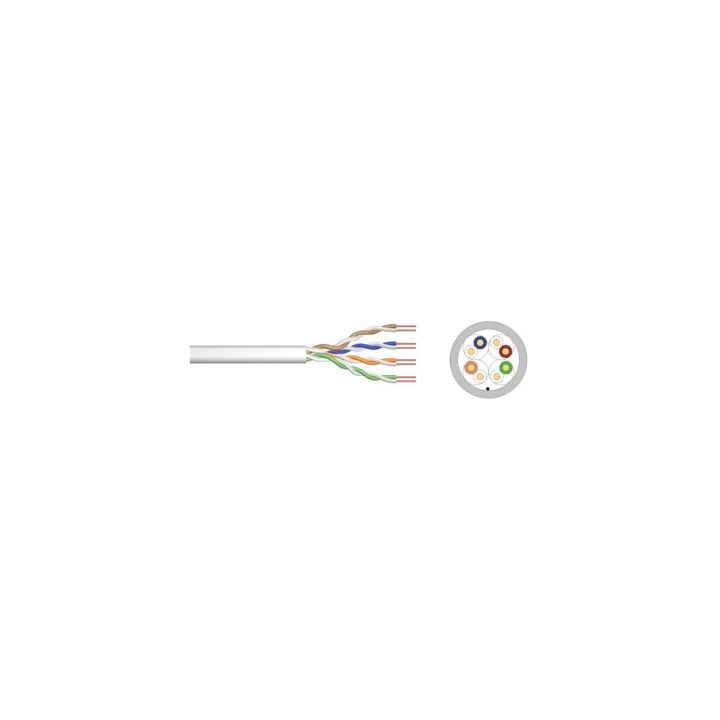

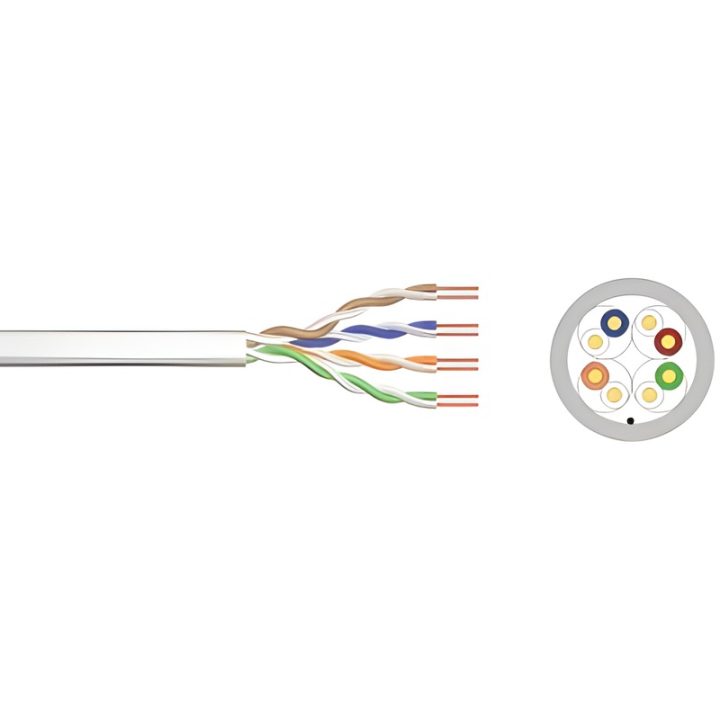

This is a Cat6 category network cable reel, designed for Gigabit Ethernet 1000Base-T and Fast Ethernet 100Base-TX installations. The cable is U/UTP type, meaning it lacks individual shielding on the pairs and overall shielding, and features a rigid construction with solid conductors. It complies with ANSI/TIA 568-C, ISO/IEC 11801 2nd Ed., EN 50173, and EN 50288-2-1 standards, offering a standard solution for structured cabling in local area networks.
The conductor is made of bare annealed CCA copper, solid, with AWG 23/1 gauge and a nominal diameter of 0.55 mm. The eight polyethylene-insulated conductors are twisted into four pairs with standard color coding. The outer jacket is PVC with an Eca fire reaction classification according to EN 50575, in RAL 7035 gray. The total cable diameter is 6.0 mm. Its operating temperature range is between -20 °C and +60 °C, while installation must be performed between 0 °C and +50 °C.
- 305-meter length per reel
- Solid CCA conductors, AWG 23/1 gauge
- PVC outer jacket with Eca classification
- Nominal outer diameter of 6.0 mm
- Compatible with 1000Base-T and 100Base-TX
- Operating temperature range from -20 °C to +60 °C
