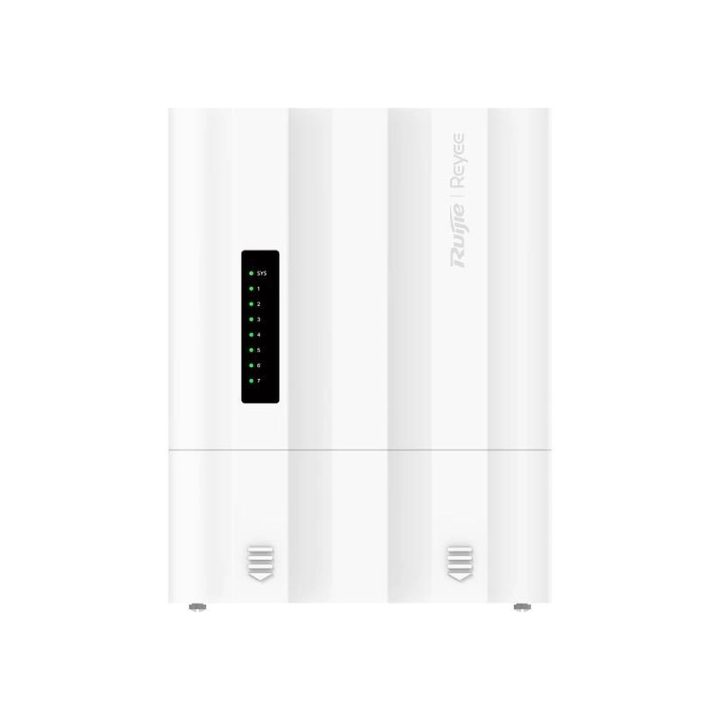

Ruijie Networks Reyee RG-ES207GS-PI-OD Outdoor Cloud CC 4P Switch

This Layer 2 switch is designed for outdoor installations, operating in a temperature range of -30 °C to +65 °C. It features five RJ45 10/100/1000BASE-T ports and two 1GE SFP ports, offering a switching capacity of 14 Gbps and a forwarding rate of 10.42 Mpps. Power is supplied via a PoE input port compatible with IEEE 802.3af/at/bt standards.

The device includes four PoE/PoE+ output ports that allow powering connected devices. The available PoE budget varies depending on the input: it reaches up to 60 W with 90 W PoE++, or 19 W if the input is 30 W PoE+. The power pins are 1–2 (+) and 3–6 (-). It includes port isolation features and support for PoE watchdog, for efficient power and connectivity management in adverse conditions.

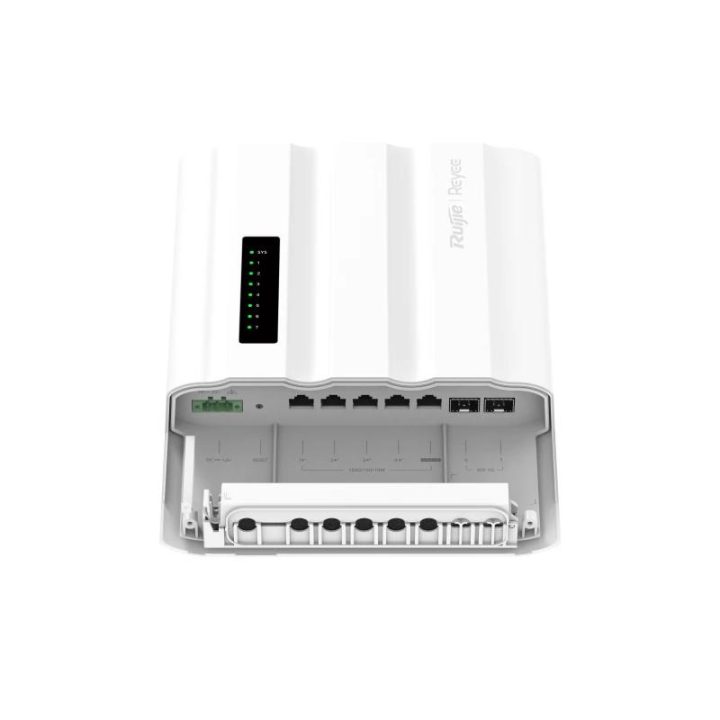

• Five Gigabit RJ45 ports and two 1GE SFP ports
• Switching capacity of 14 Gbps and forwarding rate of 10.42 Mpps
• Four PoE/PoE+ output ports with variable budget
• Outdoor operation from -30 °C to +65 °C
• Power supply via IEEE 802.3af/at/bt PoE input port
• Support for PoE watchdog and port isolation
