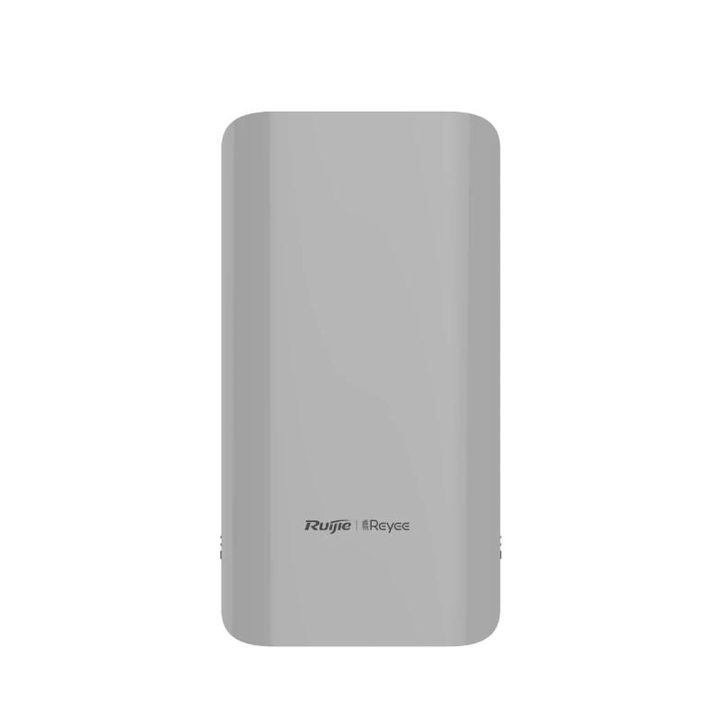

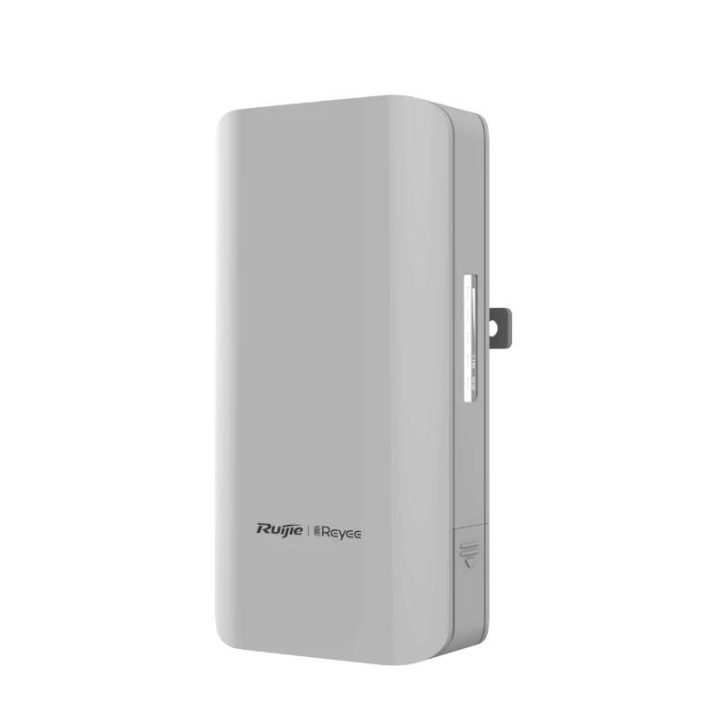

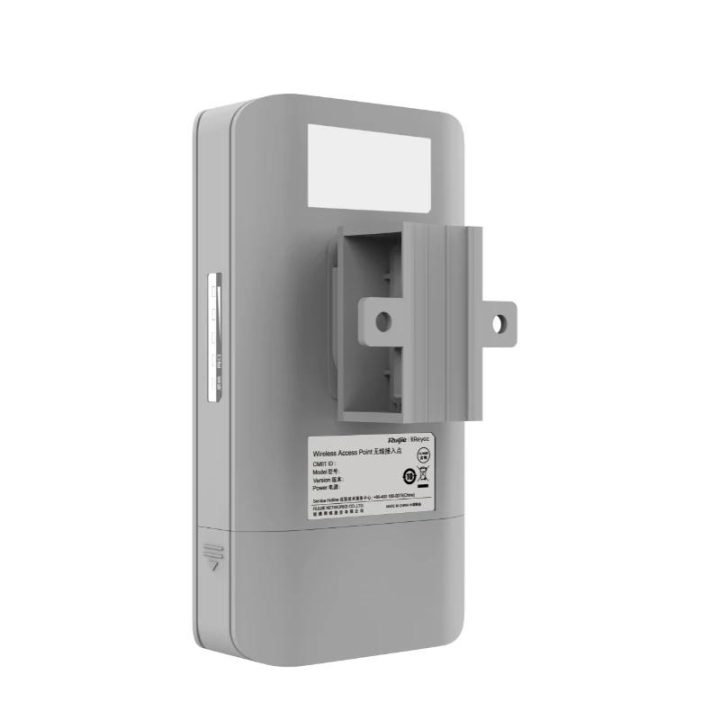

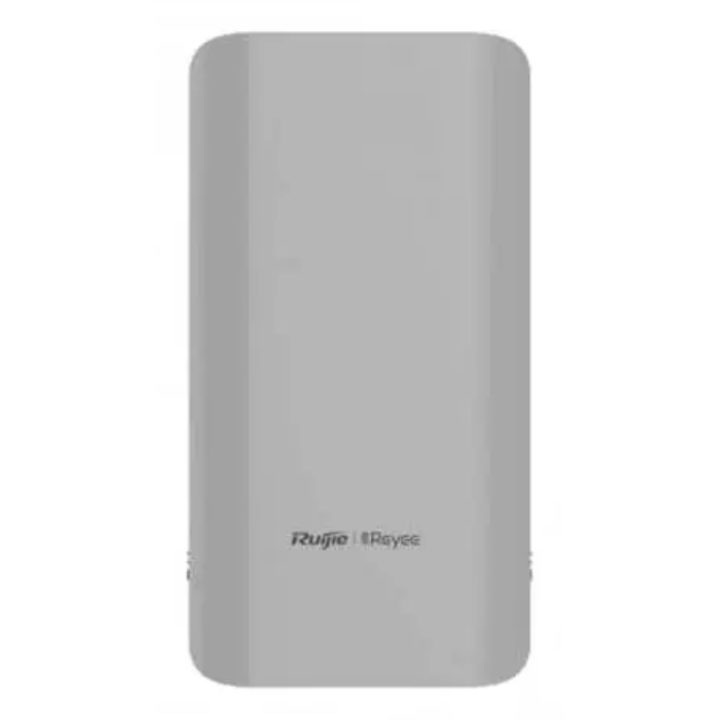

Ruijie Networks Reyee 5GHz 10dBi Outdoor Wireless Bridge Antenna (RG-EST310 V2)

The Ruijie Networks Reyee RG-EST310 V2 is a 5 GHz directional antenna designed to establish outdoor wireless bridges. It operates under the Wi-Fi 5 (IEEE 802.11ac Wave2) standard with MU-MIMO 2x2 technology, reaching a maximum speed of 867 Mbit/s. Its white housing offers IP54 water resistance and stable operation at temperatures from -30 °C to +55 °C.

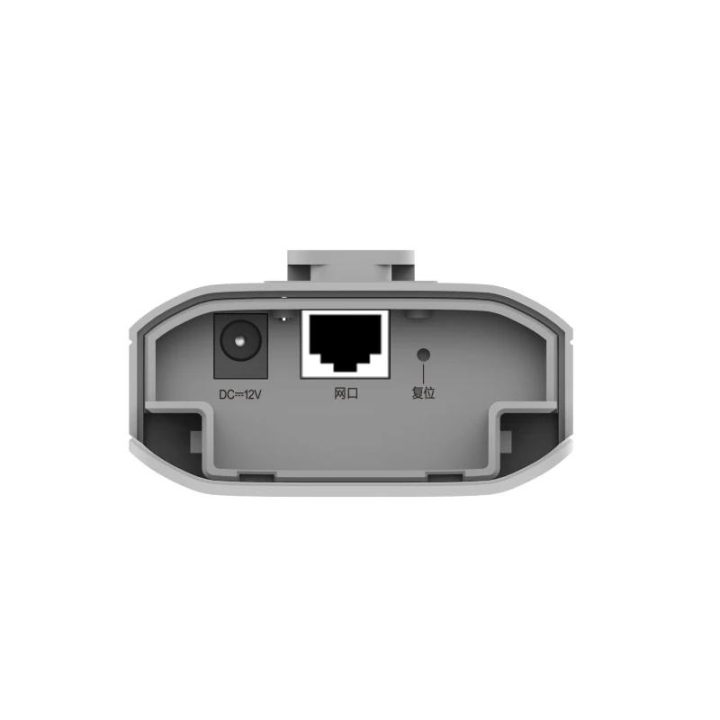

This device features an antenna gain of 10 dBi and an adjustable transmission power of up to 26 dBm. It includes a 10/100 Base-T Ethernet port for network connection. The signal polarization is 60° horizontal and 30° vertical, optimizing coverage for point-to-point links recommended for distances of up to 1 km. Its dimensions are 147 × 76 × 37 mm and its weight is 0.35 kg.

• 10 dBi directional antenna gain
• Maximum wireless speed of 867 Mbit/s
• IP54 certified water resistance
• 10/100 Base-T Ethernet port
• Recommended link distance of 1 km
