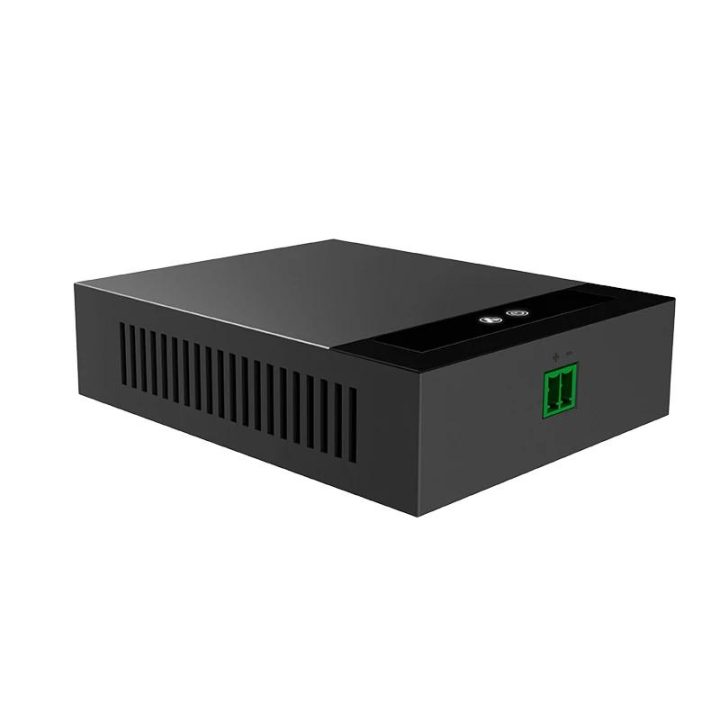

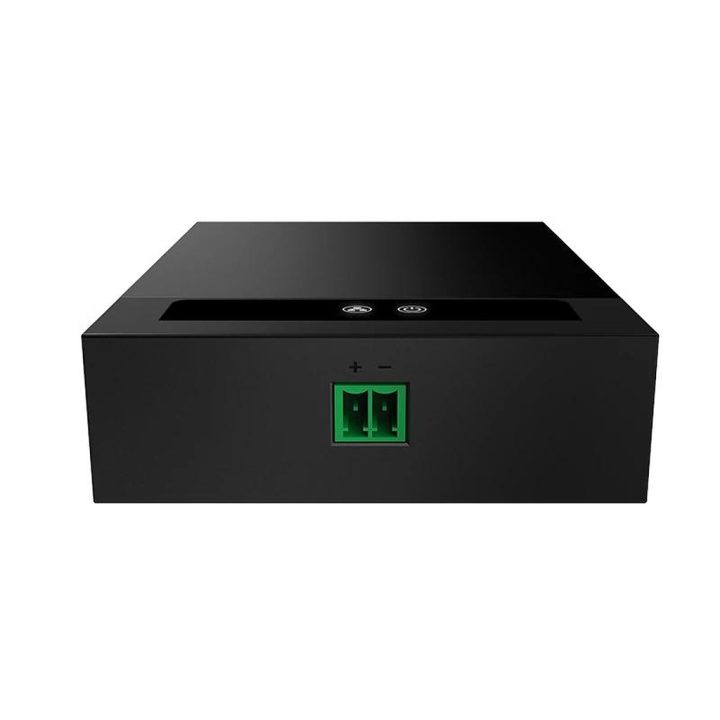

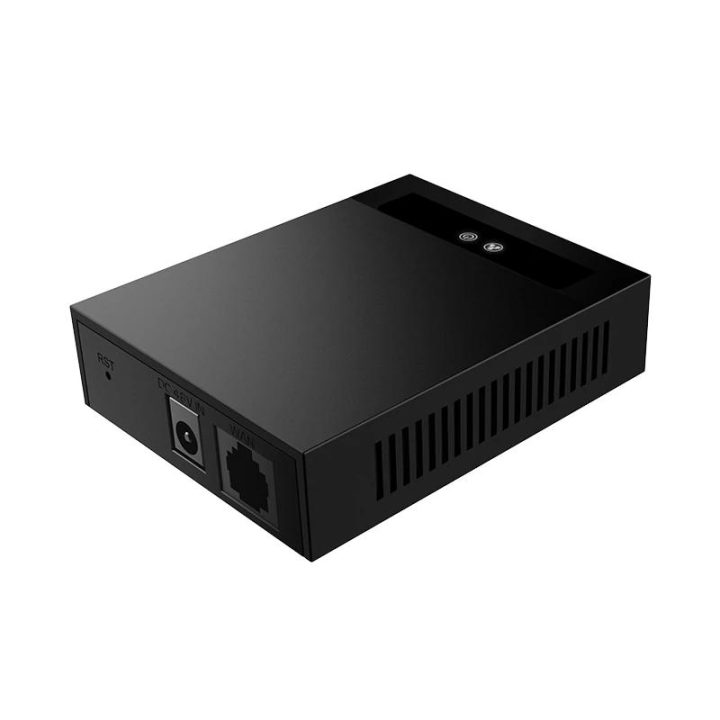

Fanvil PN1 2-Wire Converter

This device from Fanvil acts as a 2-wire converter, integrating an RJ45 Ethernet interface with 10/100 Base T speed and auto-negotiation. It features a 2-wire port and supports the IEEE 802.3 a/en PoE+ standard, allowing data and power transmission over the same wires. Its dimensions of 85 × 68 × 22.7 mm facilitate wall or flush mounting.

The unit includes status indicator lights, with a red one for power and a green one for network. The transmission distance reaches 300 meters for network and power supply, or 1600 meters for network only, depending on the wiring used (CAT 5e, 24AWG or similar). It operates with an input of 100 V to 240 V and offers a maximum output of 80 W. It operates at temperatures from -20 °C to +50 °C and weighs 0.69 kg.

• RJ45 Ethernet interface 10/100 Base T with auto-negotiation
• PoE+ support according to IEEE 802.3 a/en standard
• Transmission distance up to 1600 meters in network-only mode
• Input power 100-240 V with maximum output of 80 W
• LED status indicators for power and network
• Dimensions of 85 × 68 × 22.7 mm for wall or flush mounting
