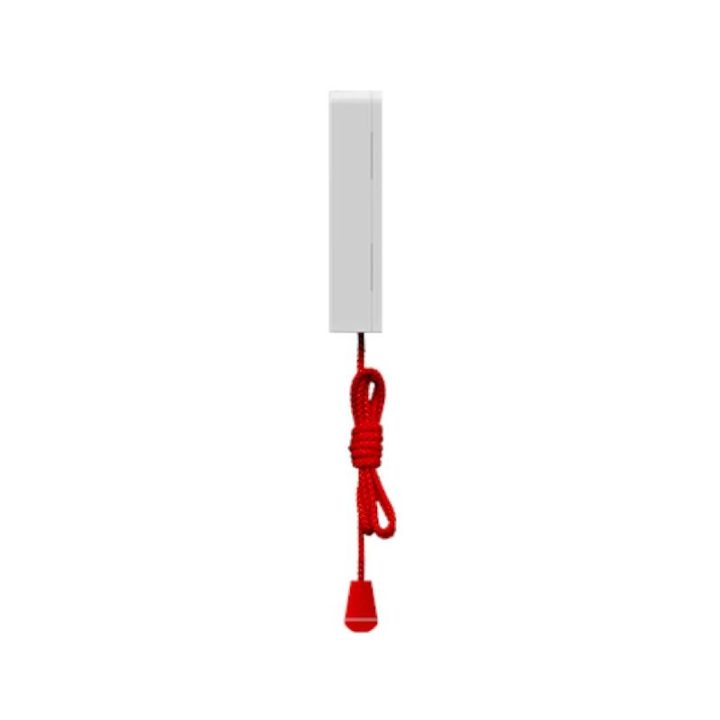

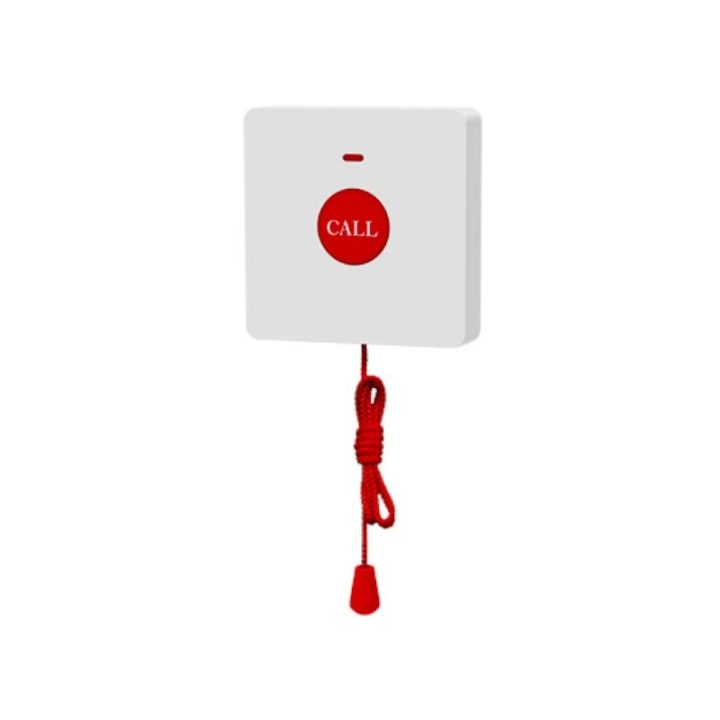

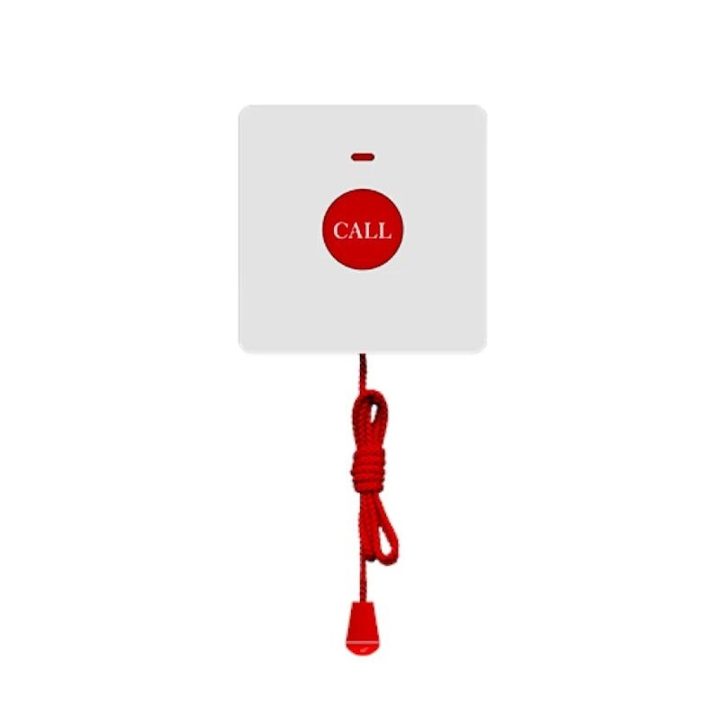

FANVIL KT30 Wireless Call Start Button

The FANVIL KT30 is a wireless button designed to initiate calls on compatible IP phones from the Y501, X305, i506W, and i507W series. This device features a single key and operates via 433 MHz radio frequency, using FSK modulation for communication with the terminal.

Made from ABS material, it has an IP65 protection rating and dimensions of 86 x 86 x 19 mm. It is powered by a 23A 12V battery, offering an operational life of over 100,000 presses. The operating range is between 12 and 30 meters indoors, and between 70 and 80 meters outdoors, with an operating temperature of -20 to +55 ºC. Includes a 2-meter cord.

• Compatible with Fanvil models Y501, X305, i506W, and i507W
• Wireless connection via 433 MHz radio frequency
• IP65 protection rating against dust and water
• Powered by a 23A 12V battery
• Operating range of up to 80 meters outdoors
