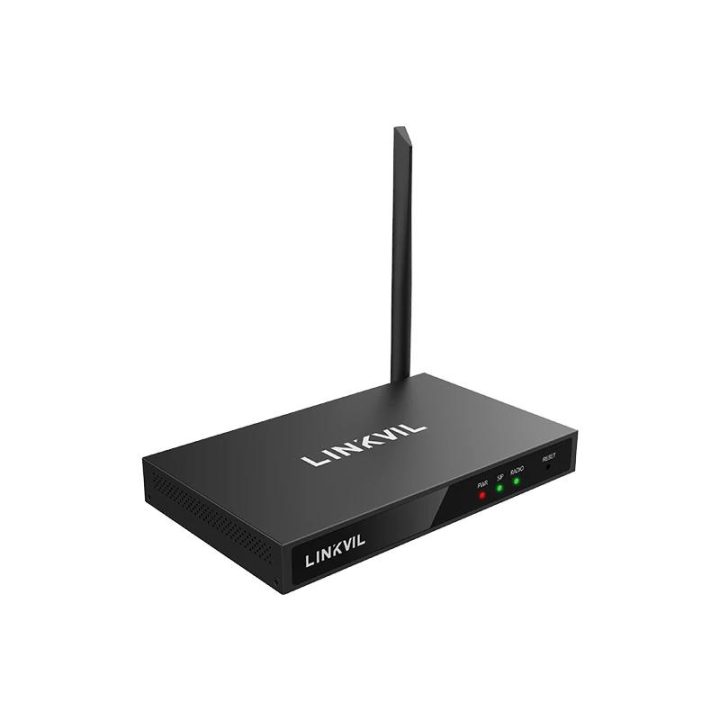

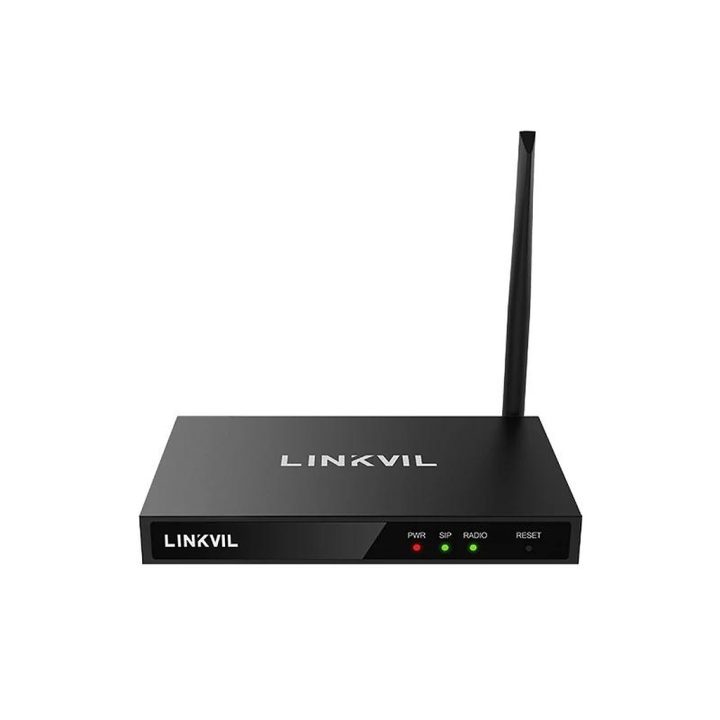

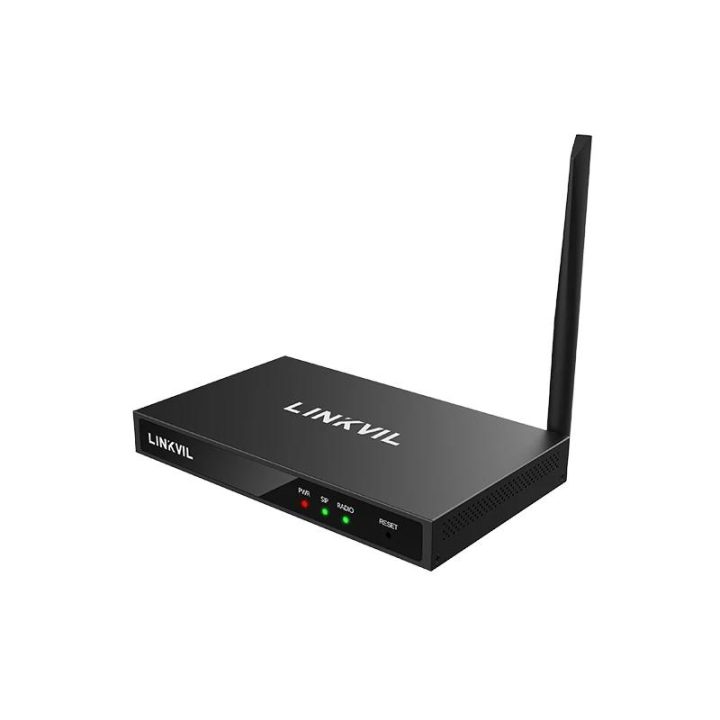

Fanvil|Linkvil W712 RoIP Gateway

This device from Fanvil acts as a bridge between radio communications and IP telephony, enabling the interconnection of analog or DMR II digital equipment with SIP systems. It operates in the 400 to 470 MHz UHF frequency band, with an estimated communication range of 1 to 3 km in open urban areas. It supports SIP v1 and v2 protocols, as well as HD audio standards via G.722 and Opus.

The unit features one radio connection and one SIP line, with call recording capabilities and logs for up to 600 entries. It includes dual 10/100 Mbps Ethernet ports, support for IPv4/IPv6, VLAN, and L2TP/OpenVPN tunnels. Power is supplied via a 12 V DC source or PoE (at). It includes a USB 2.0 interface and a TF card slot, allowing for data storage and offline updates. Management is performed via web, supporting desktop or wall mounting.

• Analog/DMR II digital radio connection in the 400~470 MHz band
• Support for 1 SIP line and call recording
• HD audio with G.722 and Opus codecs
• Power via 12 V DC or PoE (at)
• Web management and network time synchronization
• USB 2.0 interface and TF card slot
