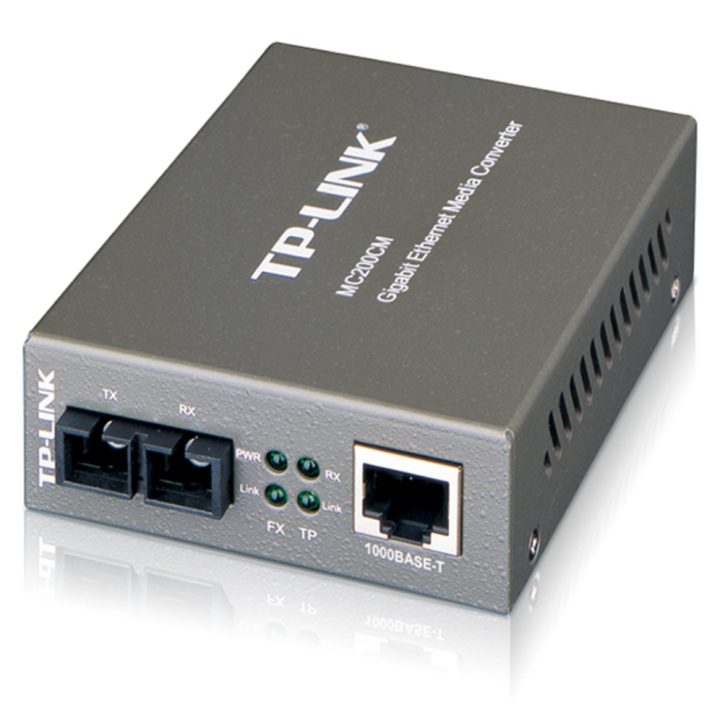

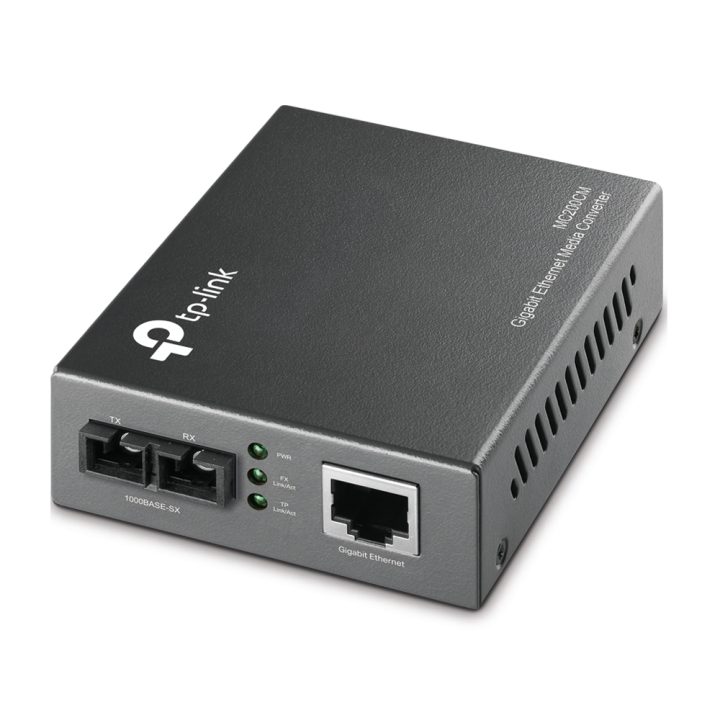

TP-Link MC200CM V3 Internal Media Converter 1000 Mbit/s 850 nm Multimode Black

The TP-Link MC200CM V3 is a media converter designed for conversion between multimode optical fiber and copper cable. It operates at a speed of 1000 Mbit/s using 850 nm wavelengths, enabling bidirectional data transmission between different network interfaces. This device complies with IEEE 802.3ab and IEEE 802.3z standards, ensuring standard compatibility in network environments requiring fiber links up to 0.5 km.

The unit features an internal form factor with dimensions of 94.5 mm wide, 27 mm high, and 73 mm deep, finished in black. It includes status LED indicators on the front panel to monitor activity and connections. It supports the Auto MDI/MDI-X function on the copper port and allows configuring Force or Auto transfer modes on the fiber port. It can operate as a standalone device or integrated into a 19-inch rack.

• Conversion between 850 nm multimode fiber and 1000 Mbit/s copper
• Optical fiber transmission range of up to 0.5 km
• Compliance with IEEE 802.3ab and IEEE 802.3z standards
• Dimensions of 94.5 x 27 x 73 mm
• Status LED indicators on the front panel
• Support for Auto MDI/MDI-X on the TX port
