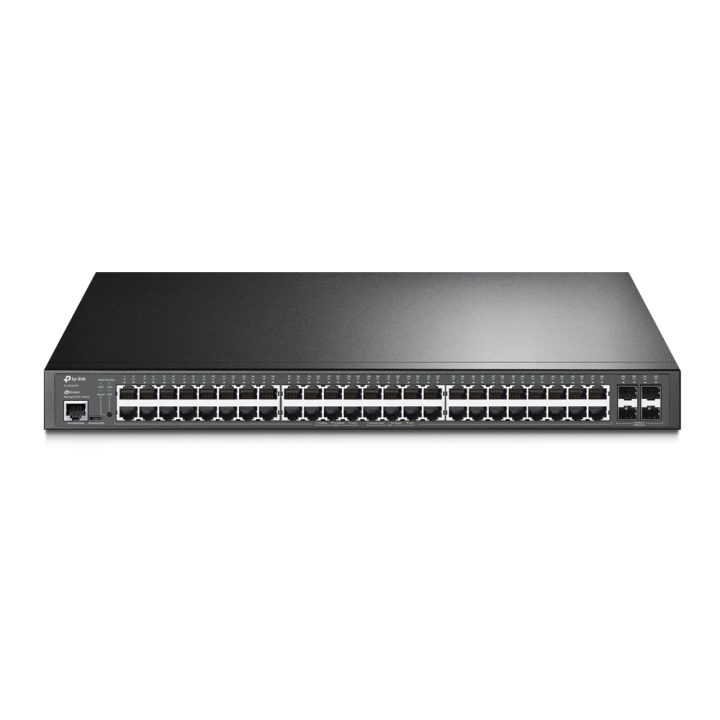

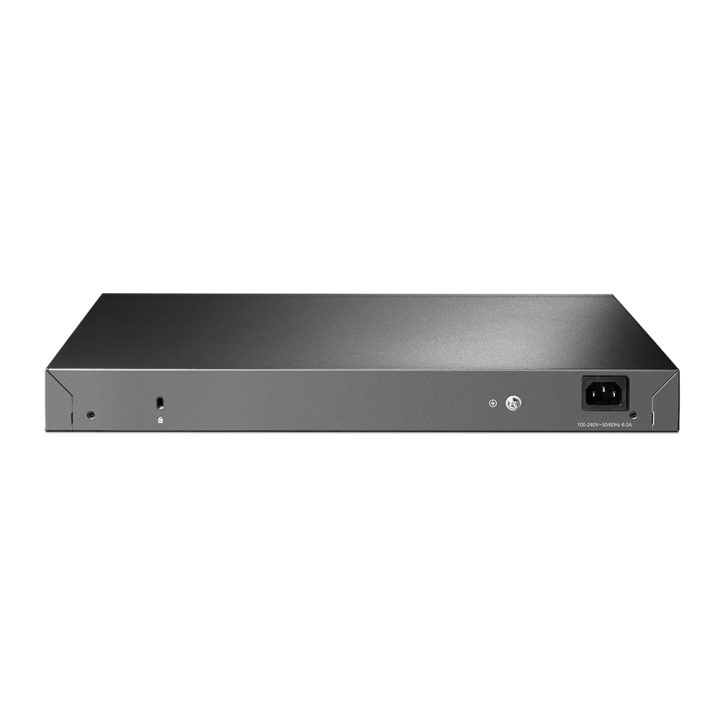

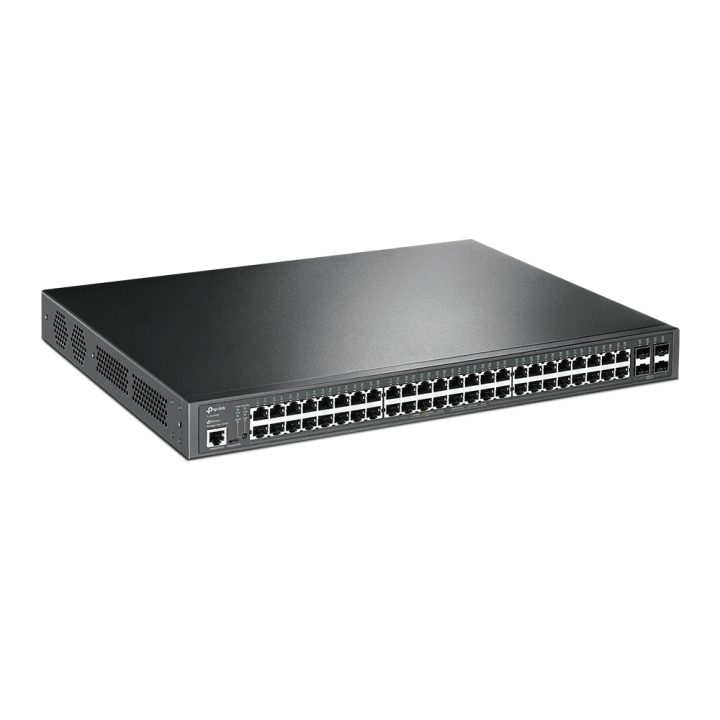

TP-Link JetStream TL-SG3452P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Switch 1U Black

The TP-Link JetStream TL-SG3452P is an L2/L3 managed switch that provides Gigabit Ethernet connectivity through 48 RJ-45 ports. All these ports support PoE technology, allowing compatible devices to be powered via the same network cable, with a total power budget of 384 W. In addition, it includes 4 SFP slots for fiber optic links or additional high-speed connections.

This device features a switching capacity of 104 Gbit/s and a forwarding rate of 77.4 Mpps, managing a MAC address table of 16,000 entries. It incorporates VLAN and Quality of Service (QoS) functions, as well as support for IEEE 802.1D, 802.1p, 802.1s, 802.1w, 802.3ad and 802.3x standards. Its 1U form factor facilitates rack installation, while the RJ-45/Micro-USB console port allows for local configuration.

• 48 Gigabit Ethernet ports with PoE support
• 384 W PoE power budget
• 104 Gbit/s switching capacity
• 4 SFP slots for fiber connections
• L2/L3 management with VLAN and QoS support
• 1U form factor for rack mounting
