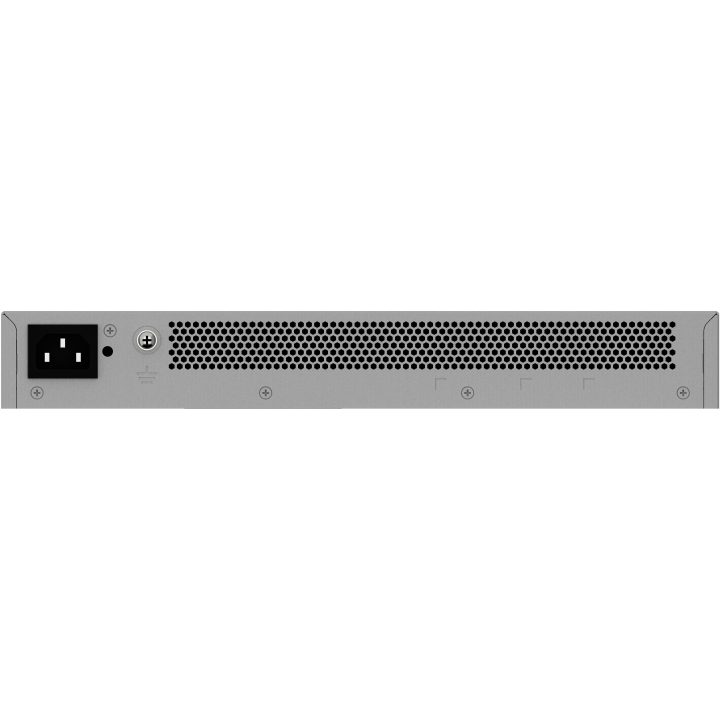

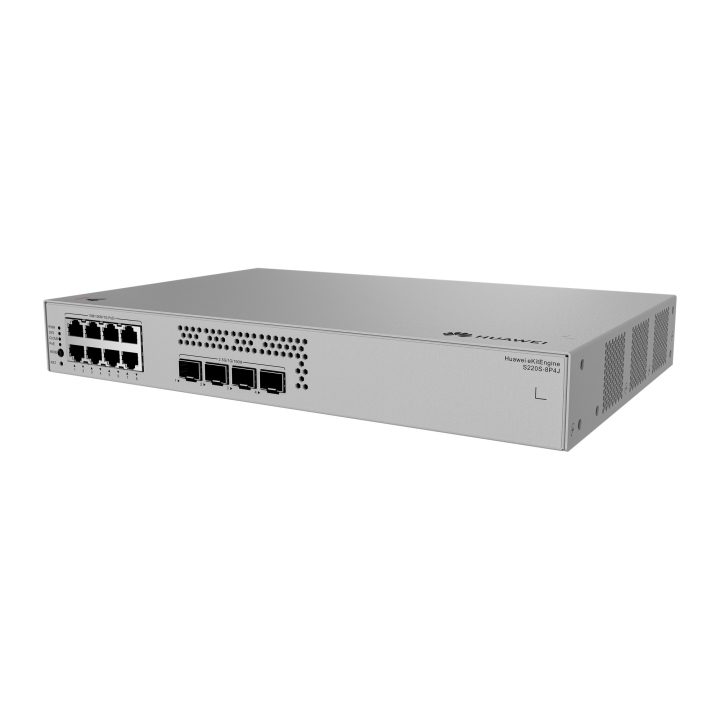

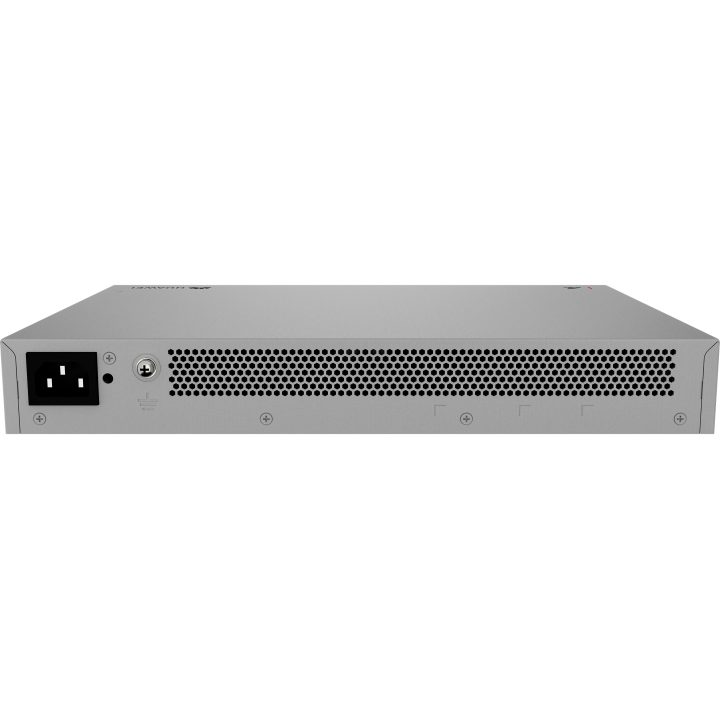

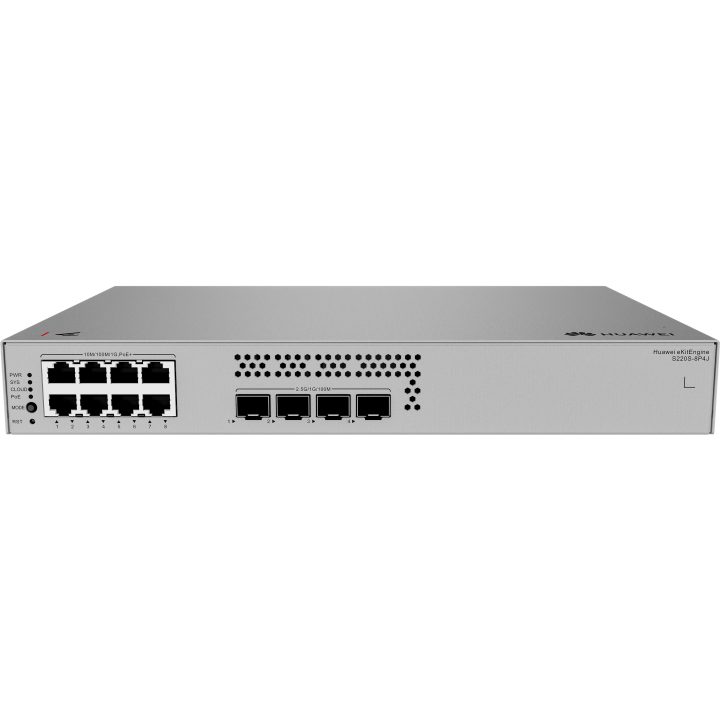

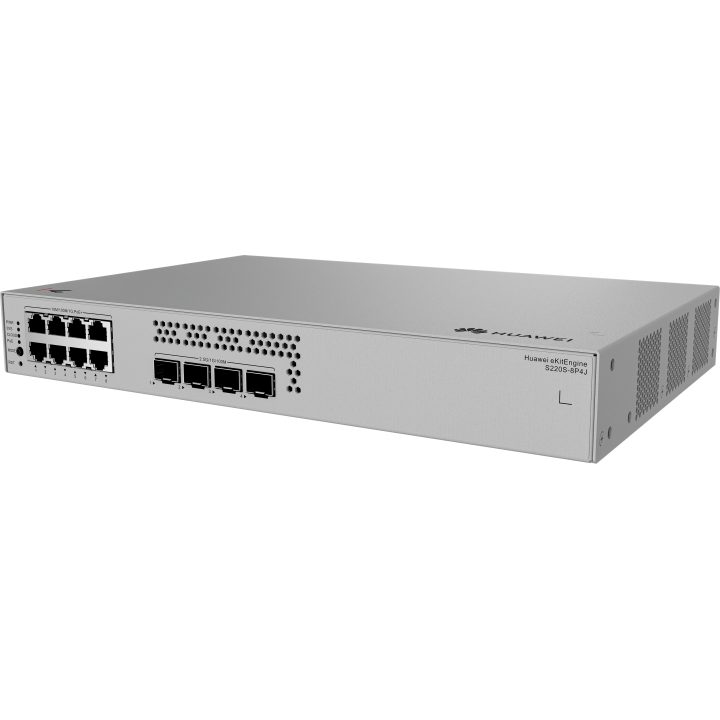

HUAWEI data communication, S220S 8P4J, S220S 8P4J, S220S 8P4J 8 10 100 1000base t ports 128 W PoE, 4 2.5ge SFP ports, built in A

This Huawei Layer 2 managed switch is designed for network environments that require PoE connectivity and high-speed uplinks. It features 8 PoE-compatible Gigabit Ethernet ports, providing a total power budget of 128 W to power devices such as IP cameras or access points. Additionally, it includes 4 SFP slots that support 2.5G connections, allowing for flexible scalability in the network infrastructure.

The device features fanless operation, which reduces operational noise, and has built-in AC power. Its technical specifications include a switching capacity of 36 Gbit/s, a forwarding rate of 27 Mpps, and a MAC address table of 16,000 entries. It supports advanced features such as VLAN and Quality of Service (QoS), complying with IEEE 802.1D, 802.1s, and 802.1w standards. Its form factor allows for rack mounting, with dimensions of 320 mm wide, 43.6 mm high, and 210 mm deep.

• 8 Gigabit Ethernet ports with PoE support
• Total PoE power budget of 128 W
• 4 SFP slots with 2.5G support
• Fanless operation
• Switching capacity of 36 Gbit/s
• Support for VLAN and Quality of Service
