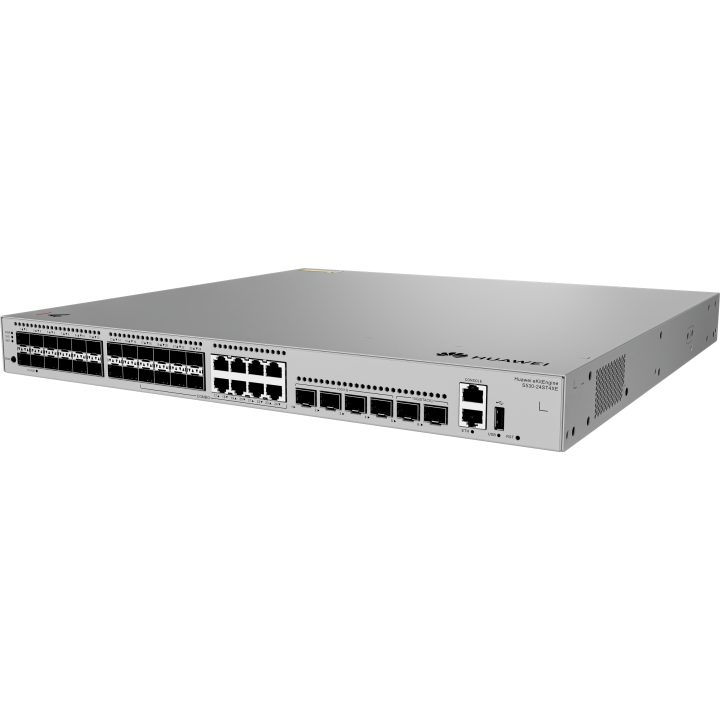

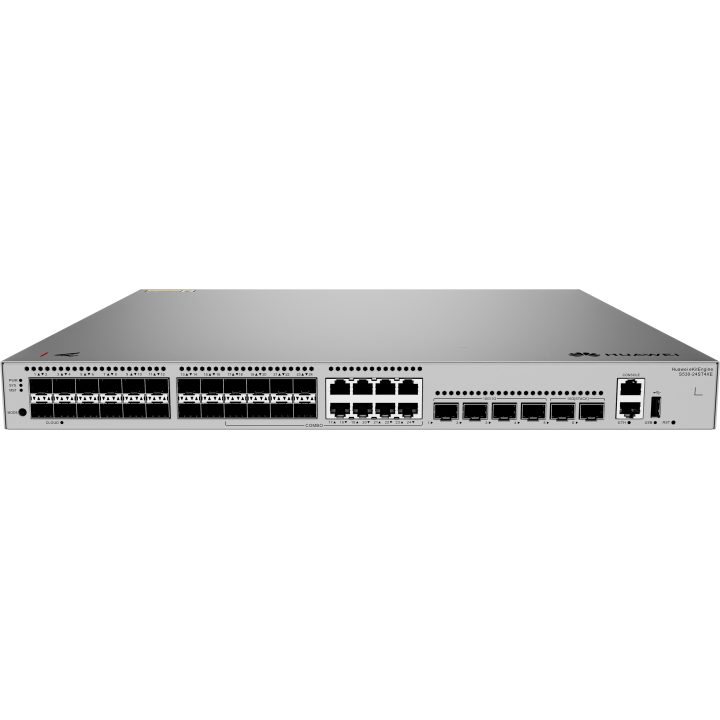

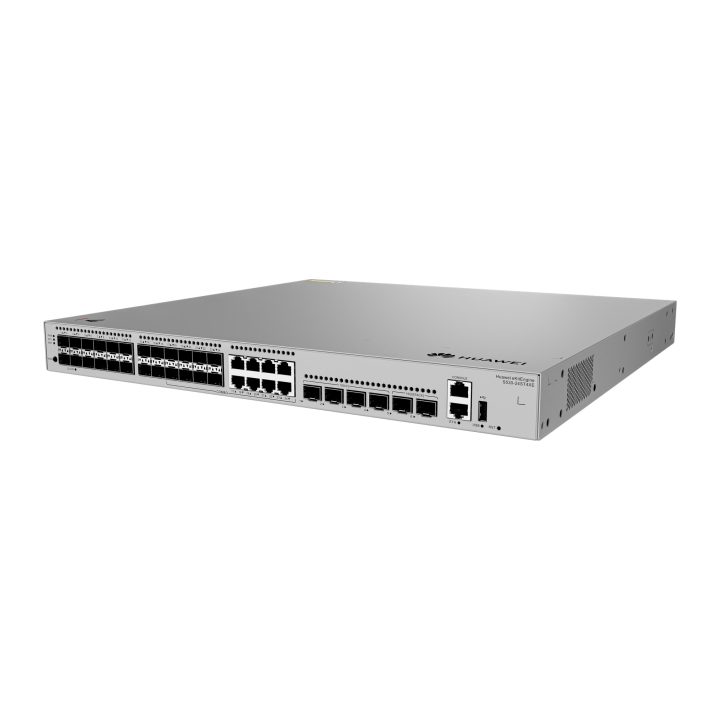

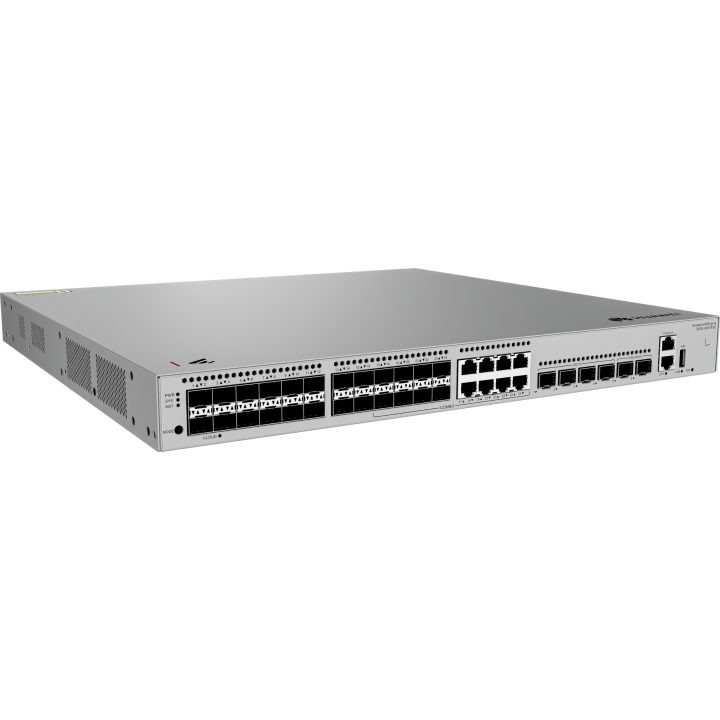

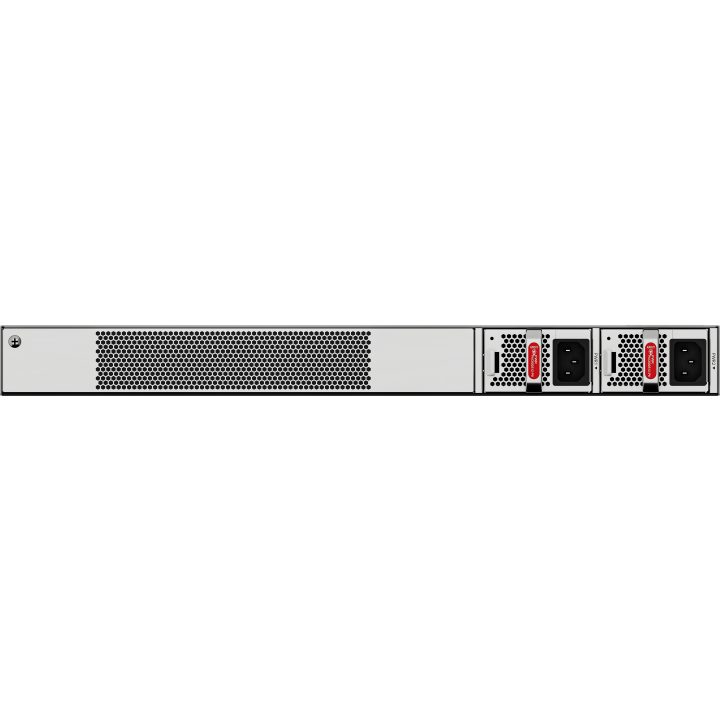

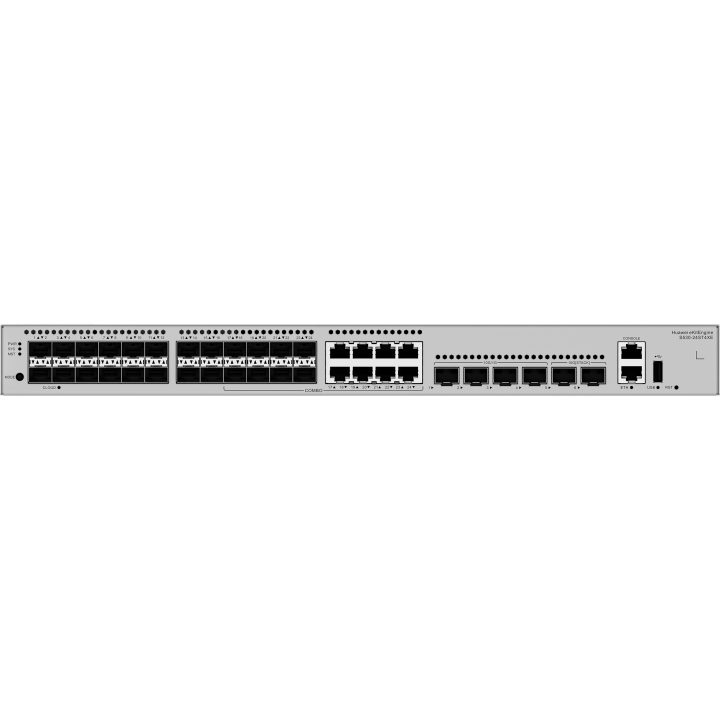

HUAWEI eKit S530 Series S530-24ST4XE Managed L3 1U Gray (98012556)

This Layer 3 managed switch is designed for network environments that require advanced control and high-density fiber connections. It features 24 SFP slots and 4 SFP+ slots, plus 8 combo SFP ports, allowing for flexible interface configuration. Its switching capacity reaches 176 Gbit/s and the forwarding rate is 132 Mpps, supporting a MAC address table of 32,000 entries.

The device does not include PoE support and comes in gray with a 1U rack-mount form factor. Its dimensions are 442 mm wide, 43.6 mm high, and 420 mm deep. It incorporates VLAN and Quality of Service (QoS) features for traffic management. Administration is performed via an RJ-45 console port.

• Layer 3 management with VLAN and QoS support
• 24 SFP slots and 4 SFP+ slots
• 176 Gbit/s switching capacity
• 132 Mpps forwarding rate
• 1U rack form factor, 442 mm wide
