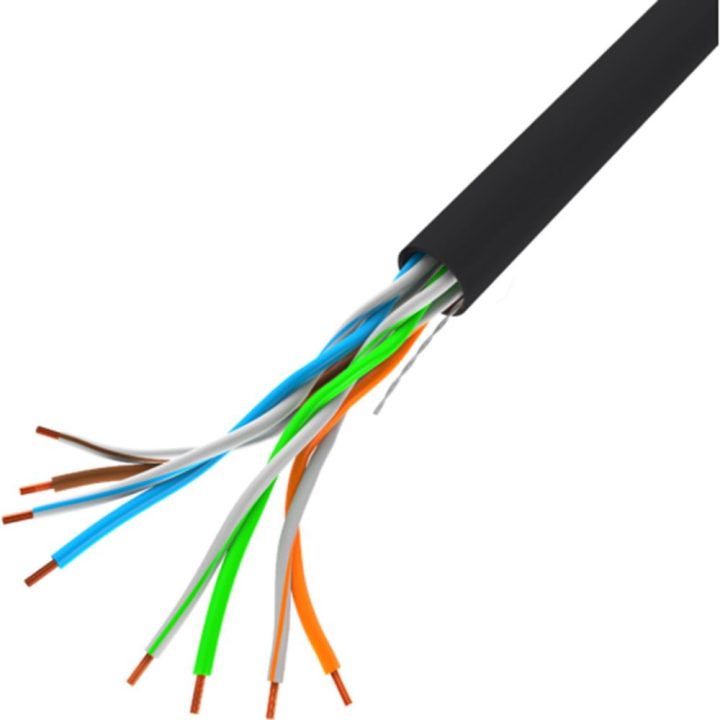

This Lanberg network cable is designed for data transmissions of up to 100 Mb/s and operates at frequencies up to 100 MHz. Its U/UTP structure lacks additional shielding, while the conductors are made of copper-clad aluminum (CCA) in AWG 24 format, with a single strand per core. The outer insulation is PVC with an outer diameter of 5.2 mm, and each conductor features HDPE insulation of 0.93 mm.

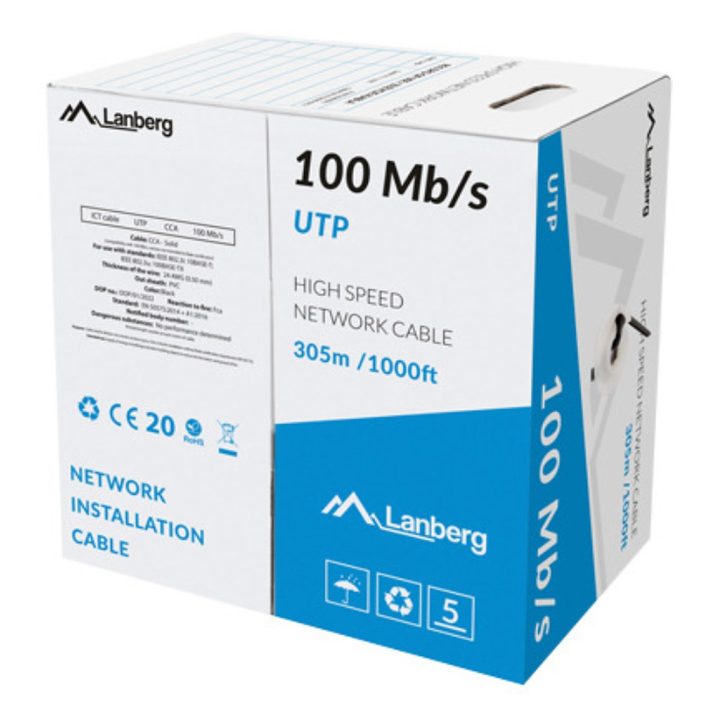

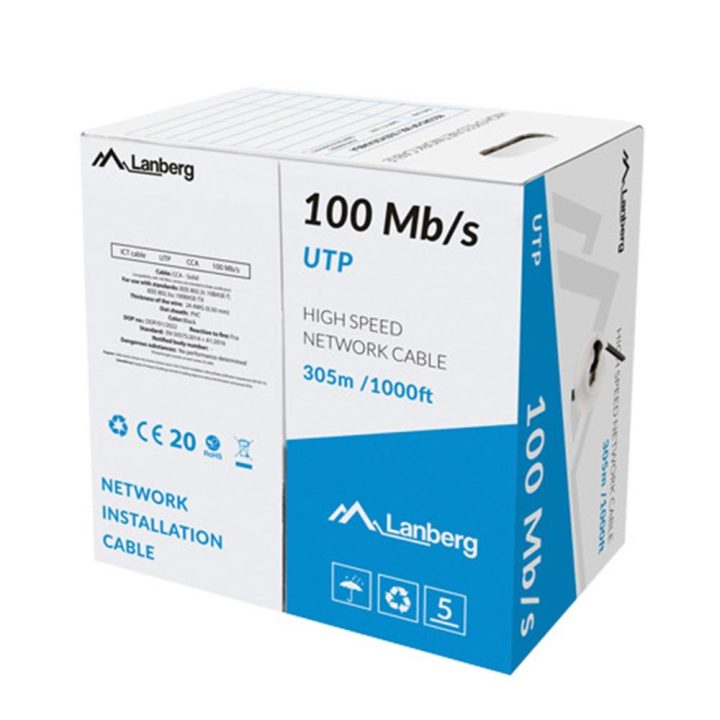

The product is black RAL9004 and includes a length counter printed every meter to facilitate measurement during installation. It supports operating temperatures between -20 and 70 degrees Celsius. The conductor resistance ranges between 60 and 90 ohms per 305 meters, with a characteristic impedance of less than 100 ohms. It is supplied in a cardboard box with dimensions of 36x23x36 cm.
- 305-meter length with a counter printed every meter
- U/UTP shielding with no additional protection
- Copper-clad aluminum (CCA) conductors AWG 24
- Operation up to 100 MHz and 100 Mb/s
- PVC outer insulation with a 5.2 mm diameter
- Operating temperature range from -20 to 70 degrees
