Phasak 6000VA rack pro online ph 9360 6KVA UPS

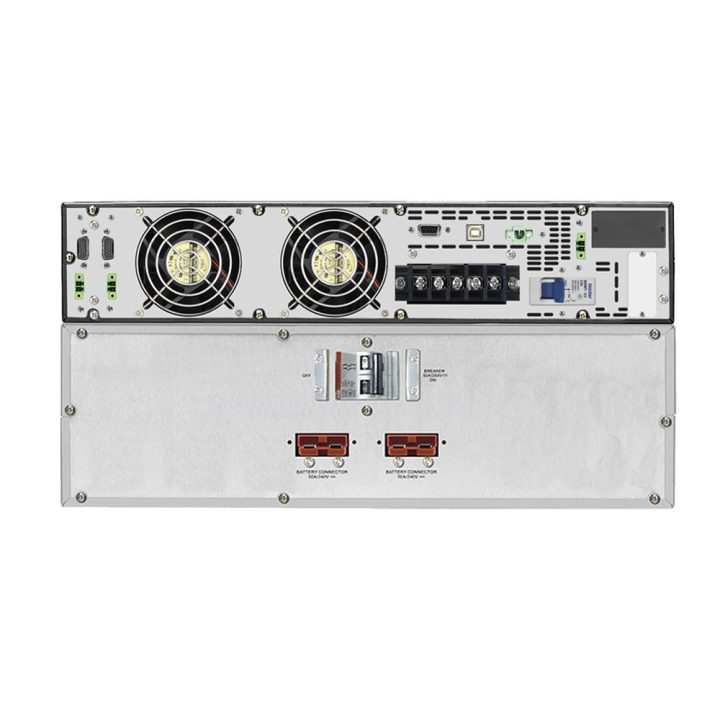

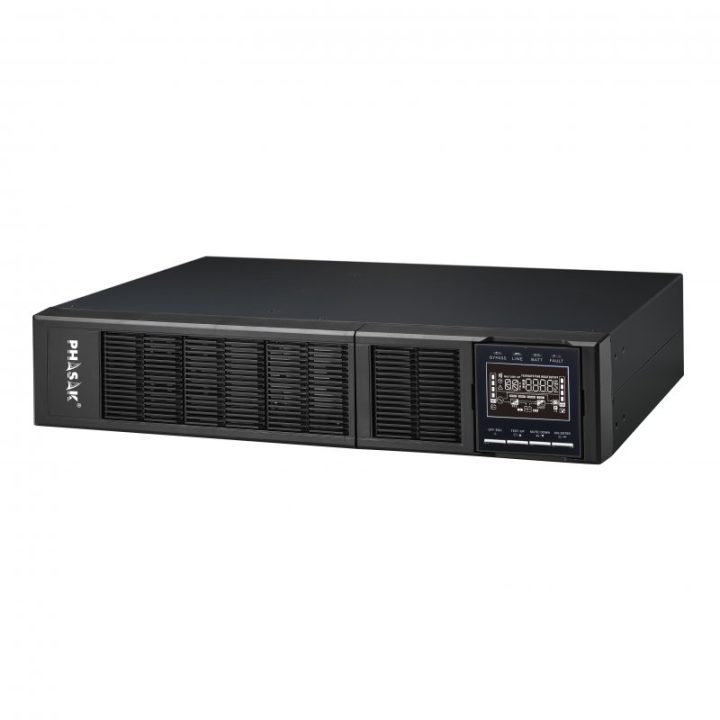

The Phasak PH 9360 UPS is an uninterruptible power supply system of 6000 VA and 5400 W, designed with true single-phase online double-conversion technology. This 19-inch rack-format unit offers a pure sine wave output with a power factor of 0.99, providing electrical stability for critical loads. Its design allows for the installation of external battery banks, extending autonomy according to the operational needs of the environment.

It features an LCD screen that displays real-time measurements of input and output voltage, remaining autonomy time, and battery load capacity. Management is performed via USB/SNMP interface with HID protocol, compatible with Viewpower software for Windows, Linux, and Mac. It includes RJ45 outlets protected against surges and electrical noise for data connections. It uses 20 batteries of 12V 7Ah, with a charging current of 2000 mA and a charging voltage of 273 V. The noise level remains below 55 dB, with dimensions of 580 x 438 x 133 mm.

• 6000 VA and 5400 W power with pure sine wave
• True single-phase online double-conversion technology
• LCD screen with voltage, autonomy, and load information
• Remote and local management via USB/SNMP and Viewpower software
• RJ45 protection for telephone, ADSL, and Ethernet lines
• Configuration with 20 batteries of 12V 7Ah
