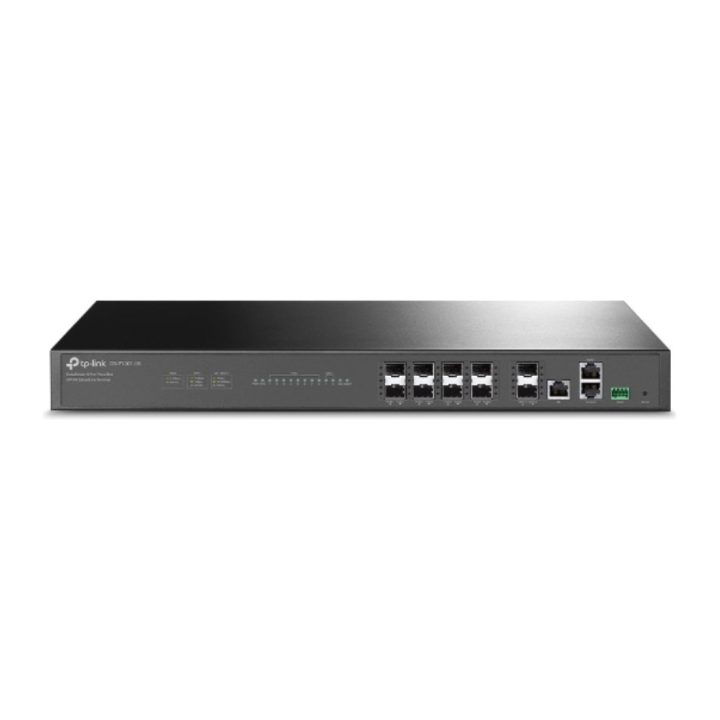

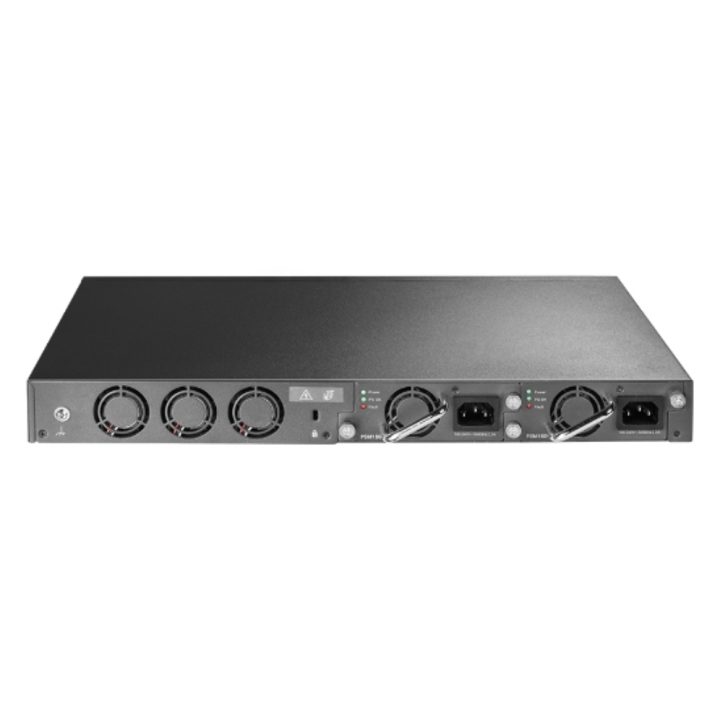

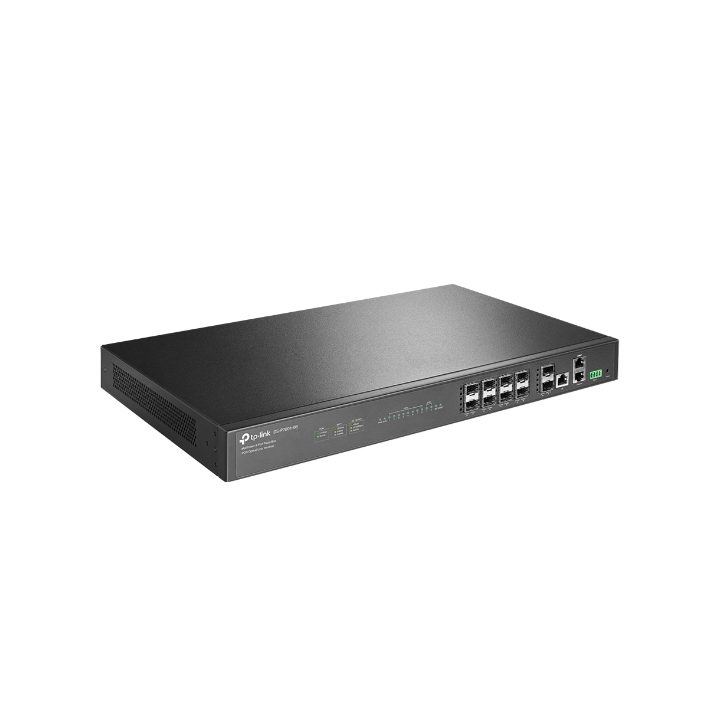

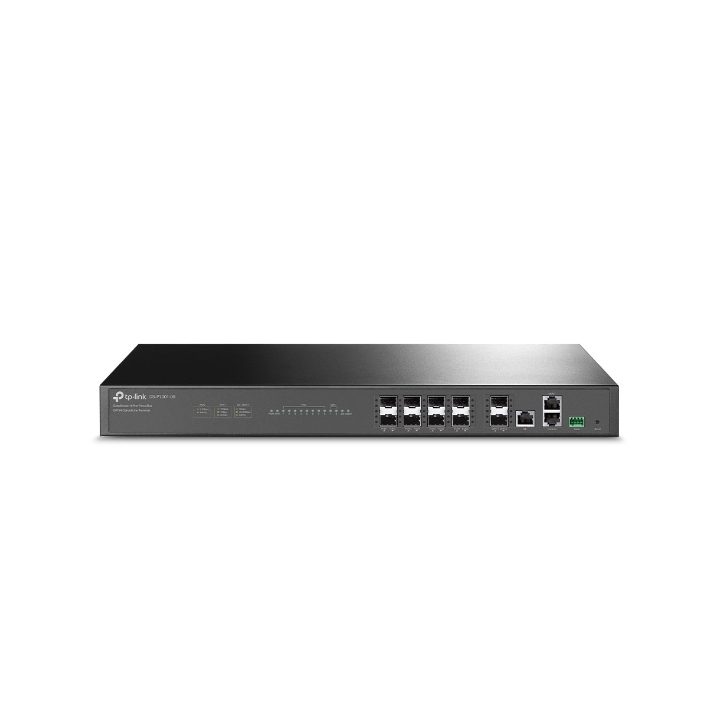

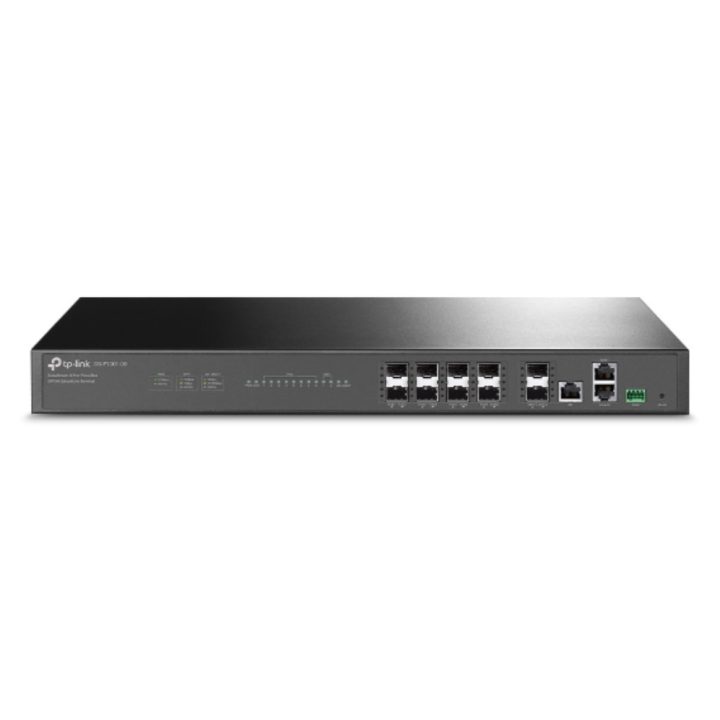

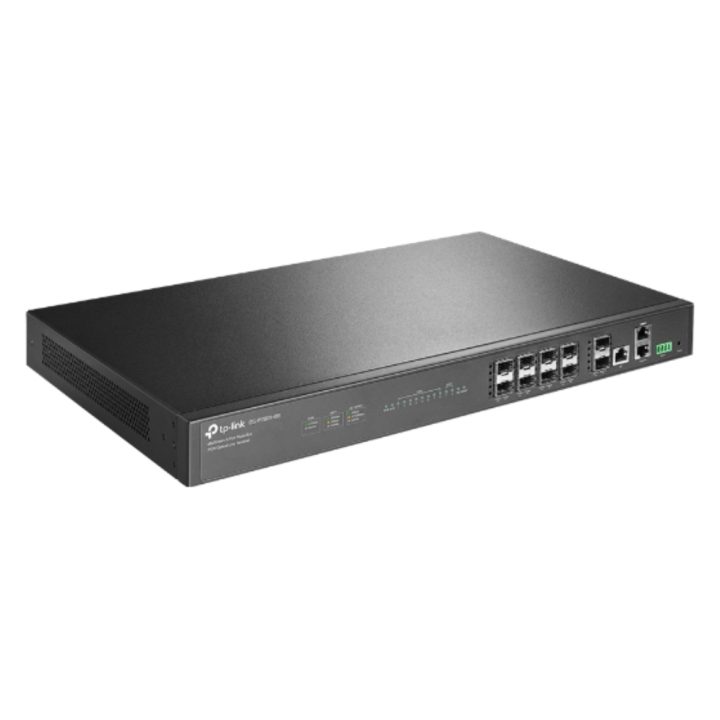

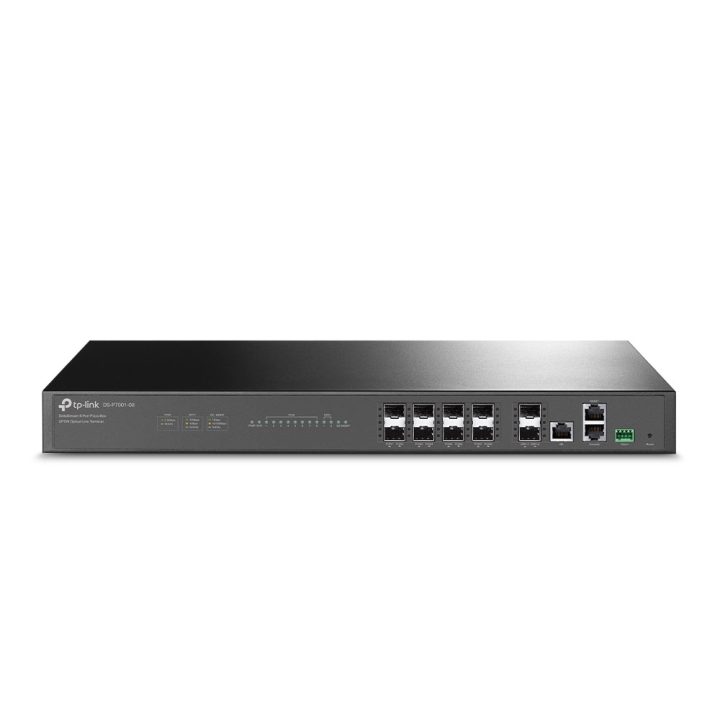

TP-Link DeltaStream DS-P7001-08 Optical Line Terminal

The TP-Link DeltaStream DS-P7001-08 is an Optical Line Terminal designed to manage GPON connections. This device offers a maximum split ratio of 1:128 and supports a logical distance of up to 20,000 m, allowing it to cover wide distribution areas. It incorporates Gigabit Ethernet uplink ports for integration into the main network and features two RJ-45 LAN ports for connecting end-user equipment.

Regarding power supply, it operates with an AC input voltage of 100 to 240 V and a frequency of 50 to 60 Hz, in addition to supporting a DC voltage range of 38.4 to 72 V. Its power consumption is 70 W. The physical dimensions of the unit are 440 mm wide, 44 mm high, and 260 mm deep, facilitating installation in standard telecommunications spaces.

• Maximum GPON split ratio of 1:128
• Maximum GPON logical distance of 20,000 m
• Two RJ-45 LAN ports and Gigabit Ethernet uplink ports
• Power consumption of 70 W
• Dimensions of 440 x 44 x 260 mm
• AC power supply of 100-240 V and DC of 38.4-72 V
