Mikrotik GPeRx4 Ethernet Extender 4xGbE PoE-Out 90W (GPER14i)

This device functions as a network extender with four 10/100/1000 Ethernet ports, allowing the distribution of connectivity and power to end devices. It incorporates three ports with PoE output (Ether2 to Ether4) under the 802.3af/at standards, while power is received via PoE-In 802.3bt or a 2-pin DC input terminal. Its robust design supports operating temperatures between -40 °C and 70 °C, facilitating installation in outdoor environments.

The hardware integrates an 88E6341 switching chip and a 200 MHz CPU, managing a maximum power consumption of 115 W. The PoE output per port varies depending on the input voltage: 0.7 A with 18-30 V or 0.6 A with 30-57 V, reaching a maximum total current of 2.0 A. It features 64 KB of FLASH storage and has CE, EAC, and ROHS certification, in addition to IP68 protection.

• Four Gigabit Ethernet ports with three 802.3af/at PoE outputs
• Power supply via PoE-In 802.3bt or 2-pin terminal

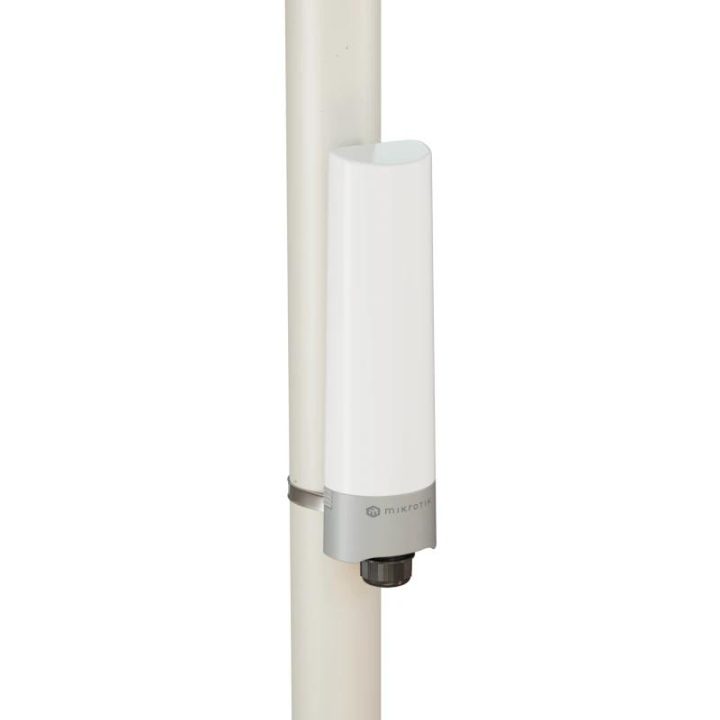

• IP68 protection for outdoor installation
• Operating temperature range from -40 °C to 70 °C
• Maximum power consumption of 115 W
