GIGABYTE Z890 D PLUS Motherboard – Compatible with Intel Core Ultra Processors (Series 2), 12+1+2 Phase VRM, up to 9466 MHz DDR5

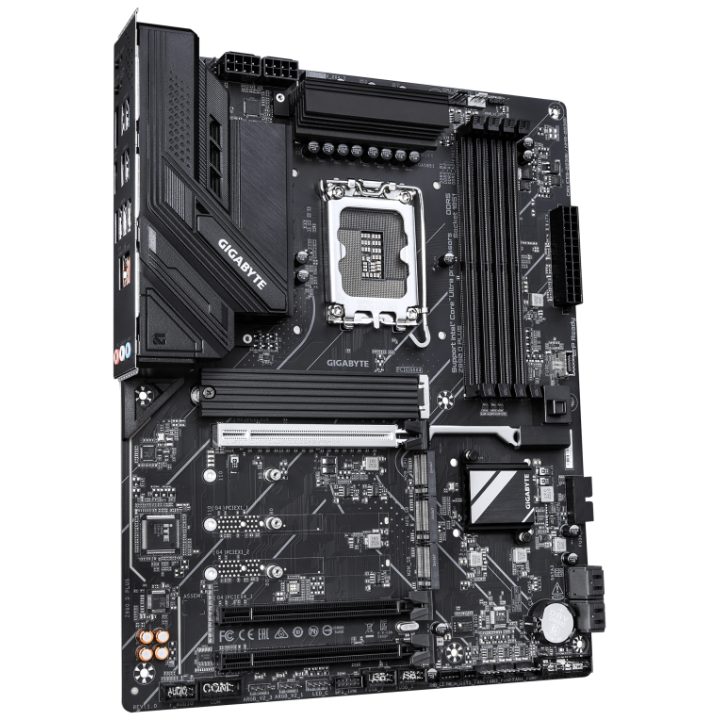

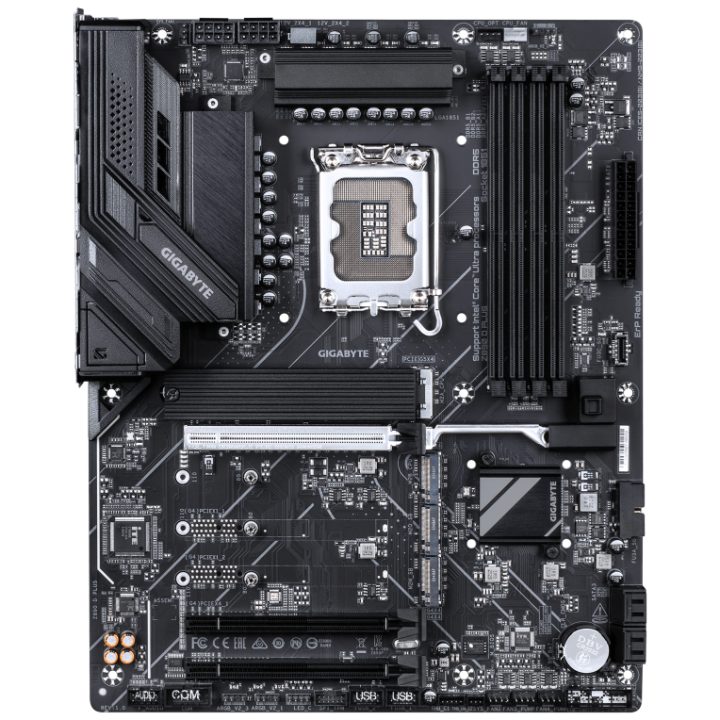

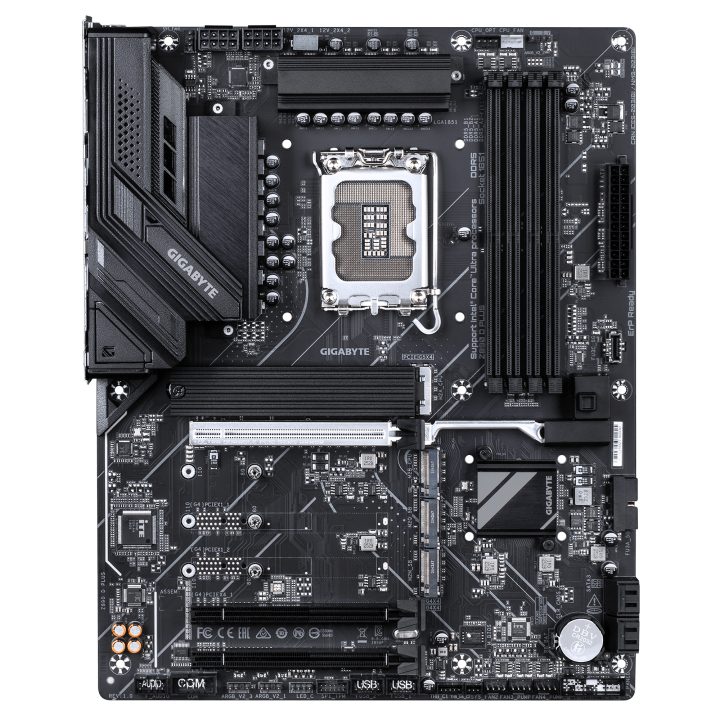

This ATX-format motherboard is designed for systems with Intel Core Ultra Series 2 processors, using the LGA 1851 socket and the Intel Z890 chipset. It features a 12+1+2 phase VRM for power management and supports DDR5 memory in four slots, reaching a maximum capacity of 256 GB and speeds of up to 9466 MHz via overclocking.

Storage is managed through four M.2 slots, including one with a PCIe 5.0 interface and three with PCIe 4.0, in addition to four SATA III connectors. Network connectivity is provided via a 2.5 GbE Ethernet port, with no integrated Wi-Fi. It includes USB 3.2 Gen 2 ports and support for RAID 0, 1, 5, and 10 configurations. Its structure weighs 1.47 kg and has dimensions of 305 mm in width, 244 mm in depth, and 35 mm in height.

• LGA 1851 socket for Intel Core Ultra Series 2
• DDR5 support up to 256 GB and 9466 MHz (OC)
• Four M.2 slots with PCIe 5.0 and 4.0 support
• 2.5 GbE Ethernet network connectivity
• ATX format with 12+1+2 phase VRM
