GIGABYTE B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 Processors, 5+3 Phase VRM, up to 4733 MHz DDR4 (O.C.), 1x M.2 PCIe 4.0 +

This Micro-ATX motherboard is designed for AMD Ryzen 5000 processors via its AM4 socket and AMD B550 chipset. It features a 5+3 phase VRM and allows DDR4 memory overclocking up to 4733 MHz, with a maximum capacity of 128 GB distributed across four slots. Its connectivity includes Wi-Fi 5, a Gigabit Ethernet port, and an HDMI connector for video output.

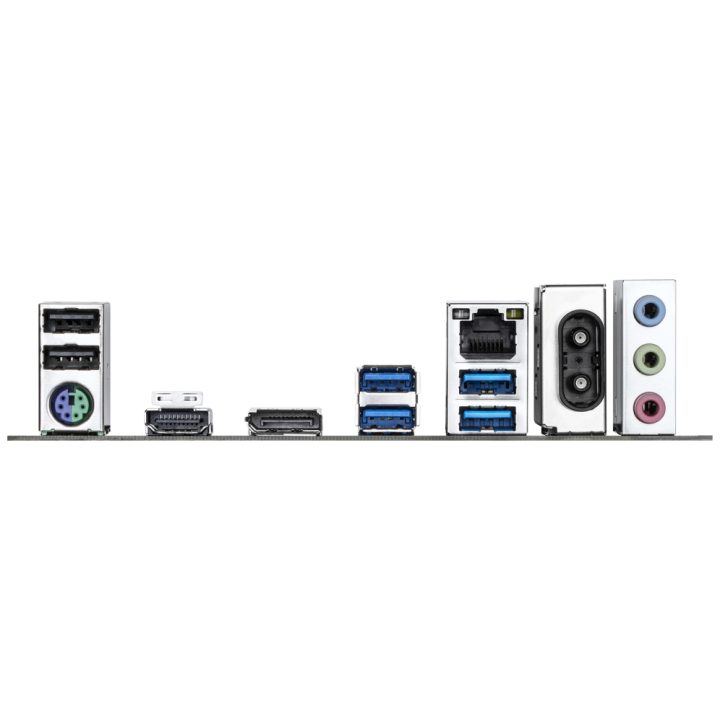

Regarding storage, it has two M.2 slots, one with a PCIe 4.0 interface and another with PCIe 3.0, plus four SATA III connectors compatible with RAID 0, 1, and 10. The rear panel offers USB 3.2 Gen 1 ports. Its dimensions are 244 mm in width and depth, with a height of 35 mm and a weight of 0.98 kg.

• Support for AMD Ryzen 5000 processors on AM4 socket
• DDR4 memory up to 128 GB with overclocking to 4733 MHz
• Wi-Fi 5 wireless connectivity and Gigabit Ethernet network
• Storage with M.2 PCIe 4.0 and PCIe 3.0 slots
• Four SATA III ports with RAID 0, 1, and 10 support
