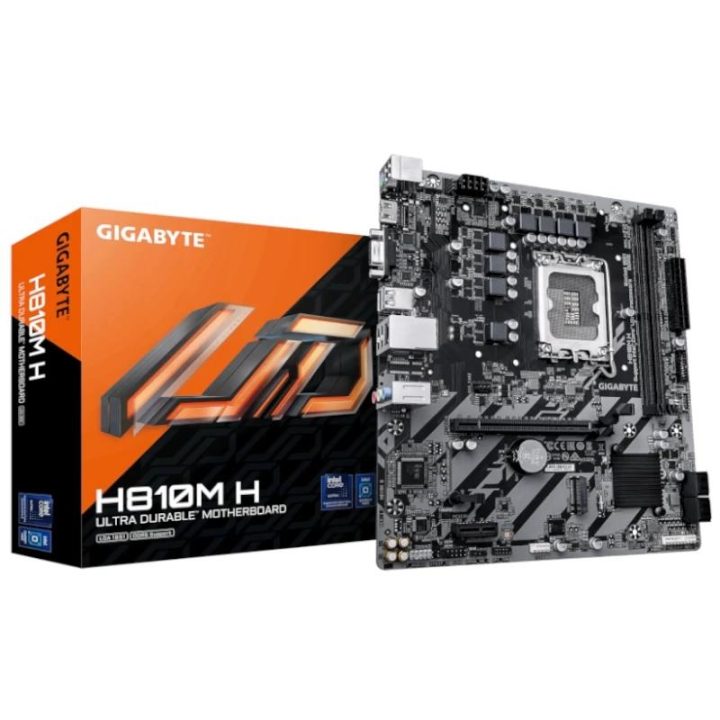

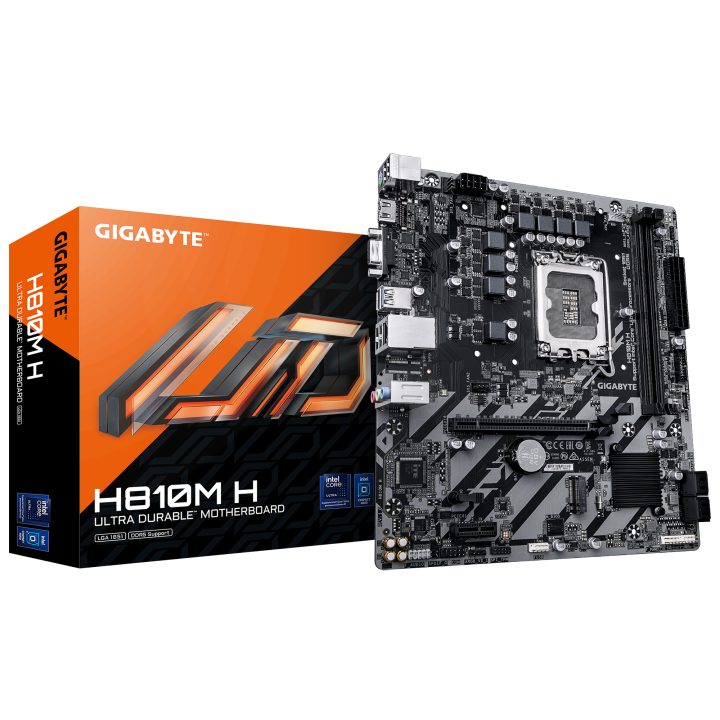

GIGABYTE H810M H Motherboard - Intel Core Ultra Processors (Series 2), 4+1+2 Phase VRM, Up to 6400 MHz DDR5, 1xPCIe 4.0 M.2, 1Gb

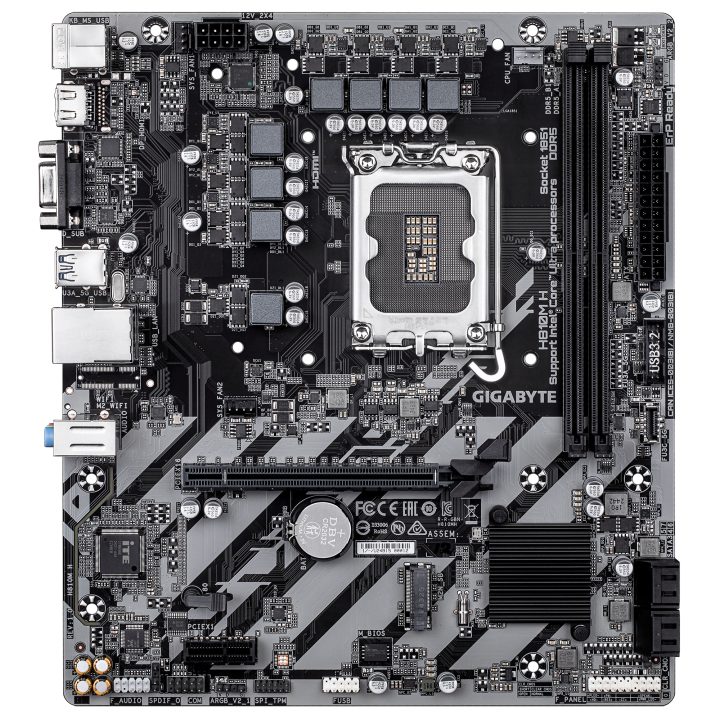

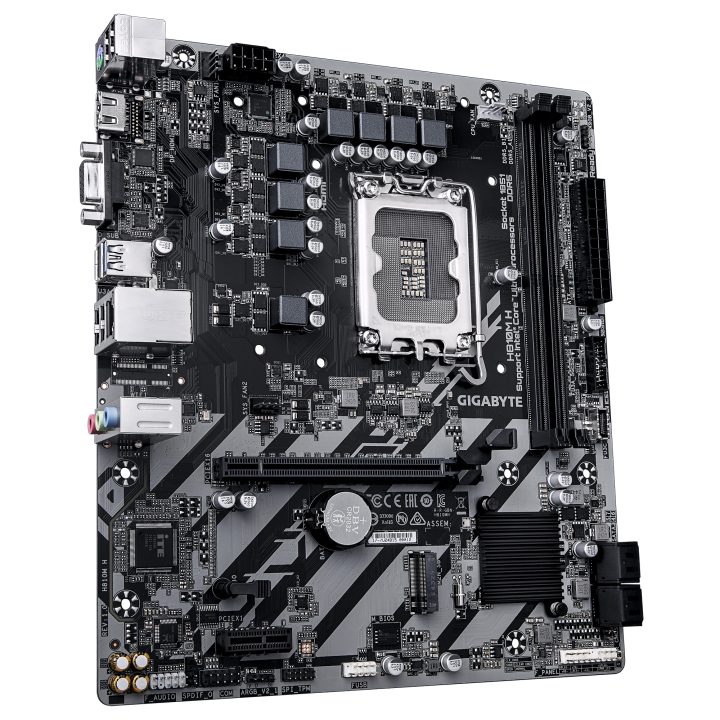

This Micro-ATX motherboard is designed for systems requiring compatibility with Intel Core Ultra Series 2 processors via its LGA 1851 socket. The Intel H810 chipset manages communication between components, allowing the use of DDR5 memory in two slots with a maximum capacity of 128 GB and speeds of up to 6400 MHz. Its design includes a 4+1+2 phase VRM for processor power delivery.

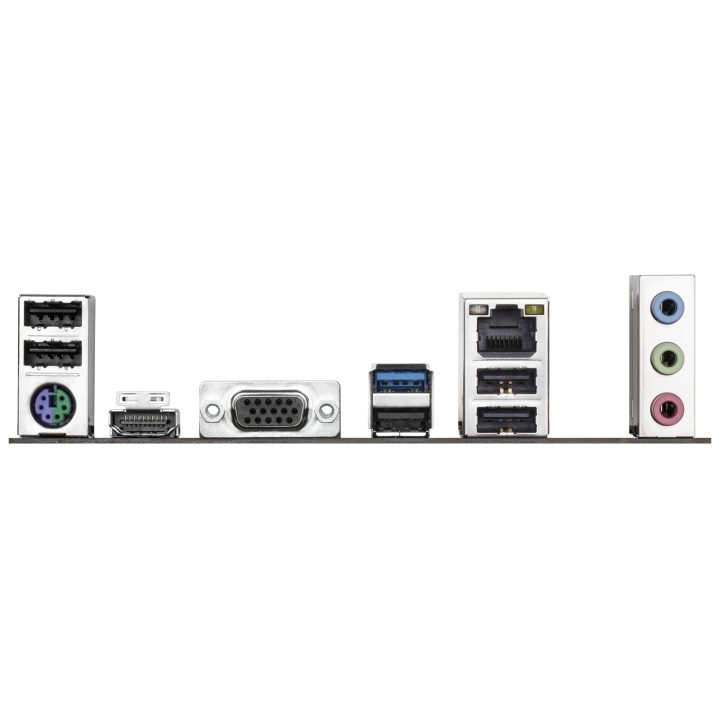

Regarding storage, it features one M.2 connector compatible with PCIe 4.0 and four SATA III ports, with support for RAID 0, 1, 5, and 10 configurations. Network connectivity is handled by an integrated Gigabit Ethernet port, while video output is provided through an HDMI port. The rear panel offers USB 3.2 Gen 1 ports. The device weighs 0.86 kg and has dimensions of 244 mm wide, 215 mm deep, and 35 mm high, with a dark brown finish.

• LGA 1851 socket for Intel Core Ultra Series 2
• Support for DDR5 up to 6400 MHz and 128 GB
• Micro-ATX form factor with Intel H810 chipset
• 1 M.2 PCIe 4.0 slot and 4 SATA III ports
• Gigabit Ethernet and USB 3.2 Gen 1 connectivity
