GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series Processors, 5+2+2 Digital VRM Phases, Up to 8200MHz DDR5 (OC), 1xPCIe 5.

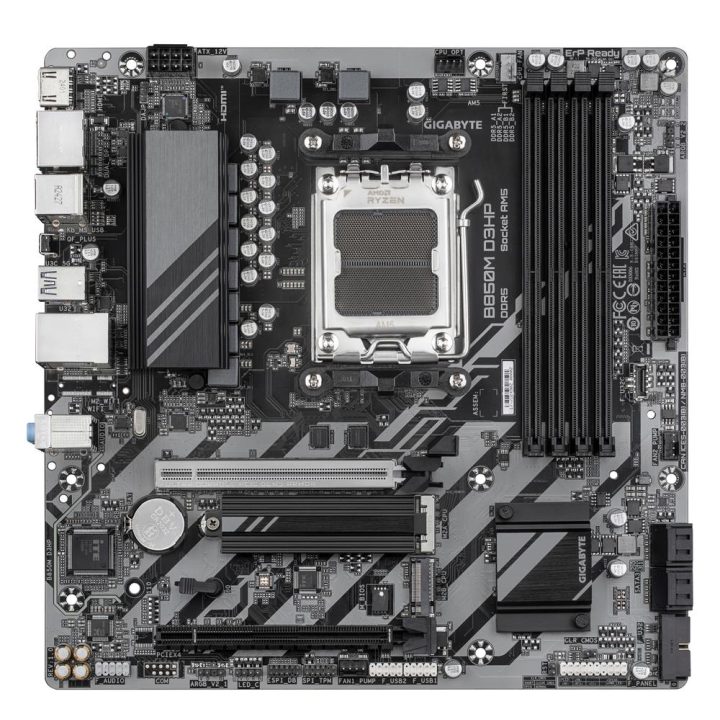

This Micro-ATX motherboard is designed for systems with AMD Ryzen 9000 Series processors via its AM5 socket. It features an AMD B850 chipset and supports DDR5 memory in four slots, reaching a maximum capacity of 256 GB and frequencies of up to 8200 MHz with overclocking. The power delivery system includes 5+2+2 digital VRM phases to manage power for the main components.

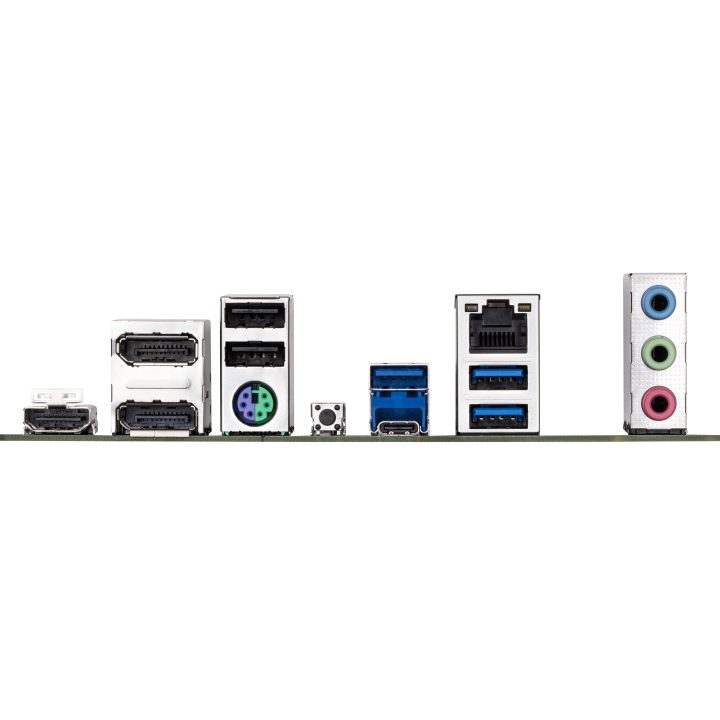

Regarding storage and expansion, it has two M.2 slots, one with a PCIe 5.0 interface and another with PCIe 4.0, plus four SATA III connectors with support for RAID 0, 1, and 10. Network connectivity is provided by Gigabit Ethernet, with no Wi-Fi included. It offers an HDMI port for video output and USB 3.2 Gen 2 ports. Its dimensions are 244 mm in width and depth, with a weight of 1.3 kg.

• Support for AMD Ryzen 9000 Series processors on AM5 socket
• Four DDR5 slots with a maximum capacity of 256 GB
• Power delivery via 5+2+2 digital VRM phases
• M.2 connectivity with one PCIe 5.0 slot and one PCIe 4.0 slot
• Integrated Gigabit Ethernet network without Wi-Fi connection
• Micro-ATX form factor with dimensions of 244 x 244 mm
