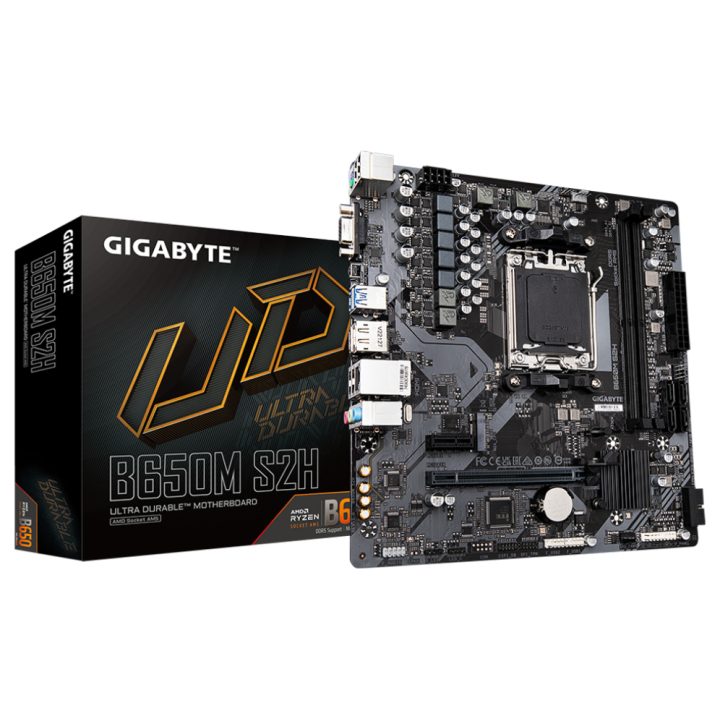

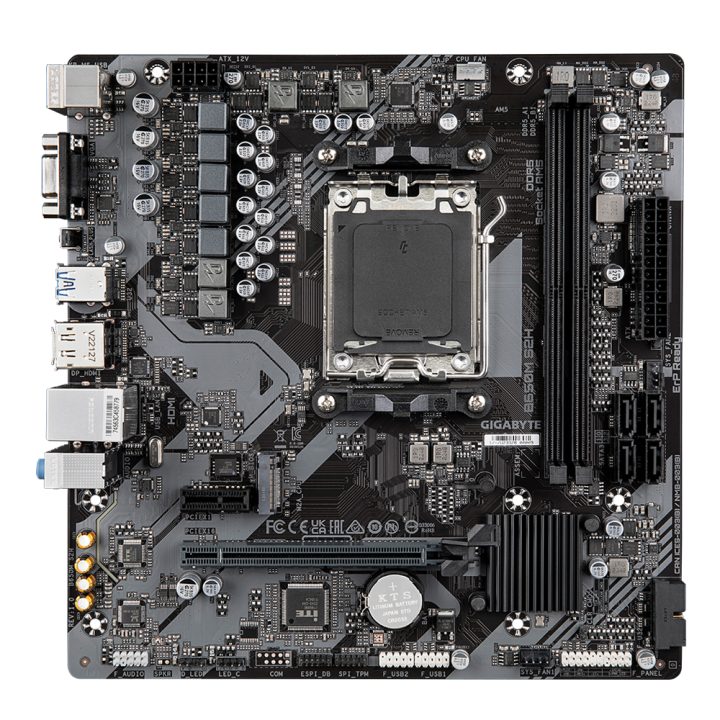

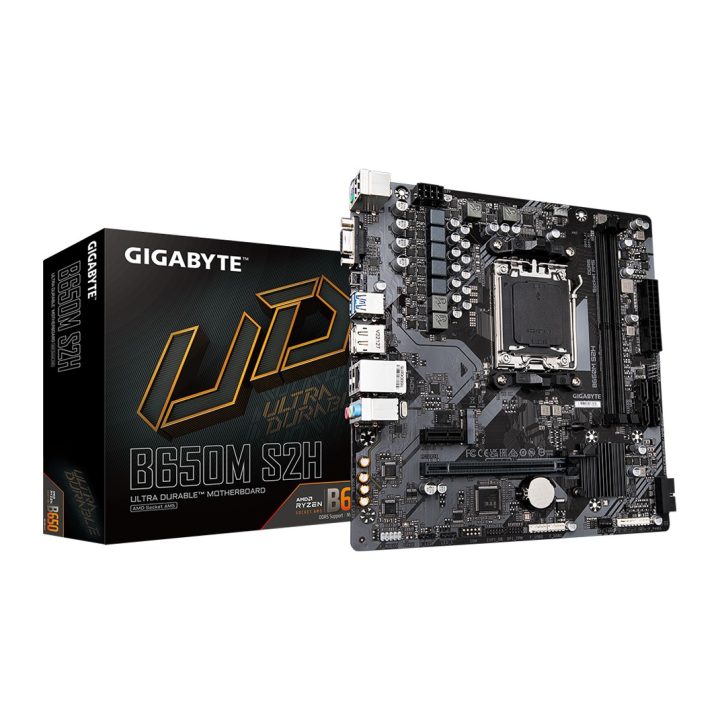

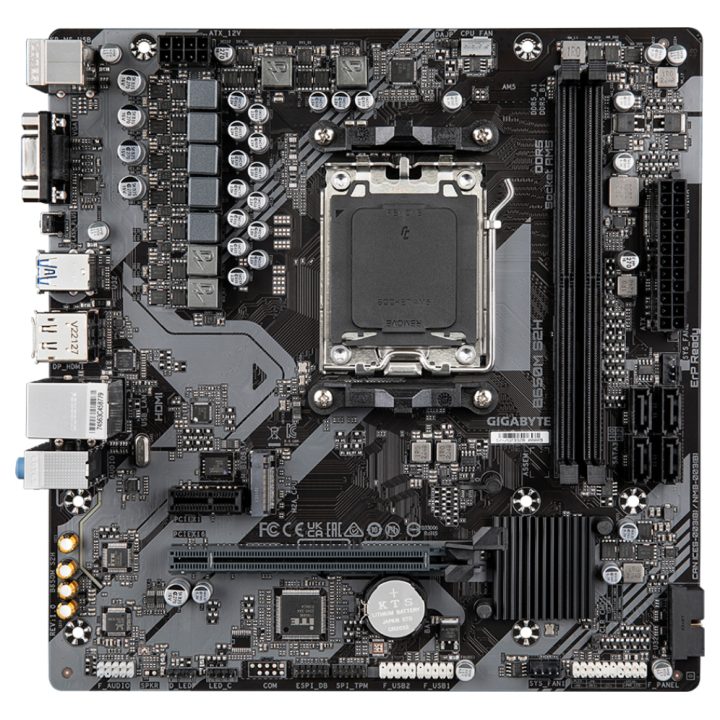

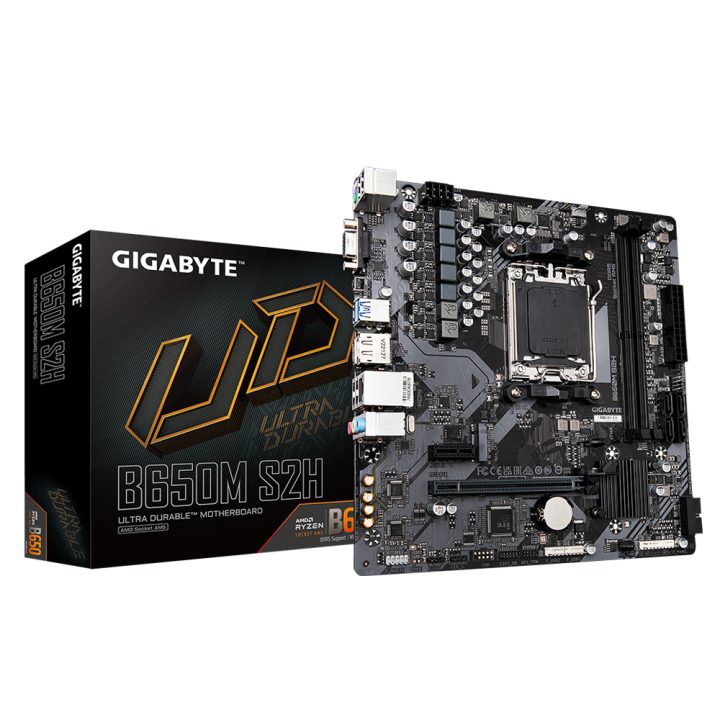

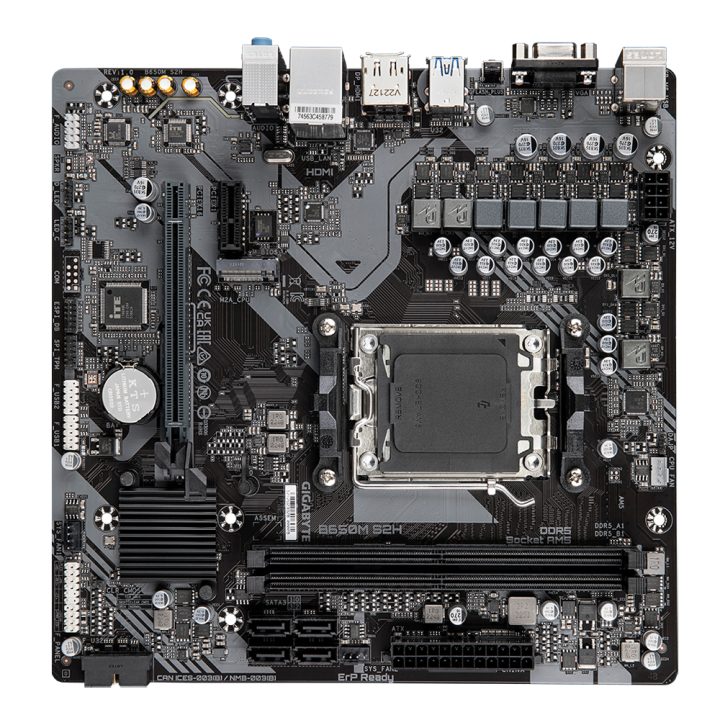

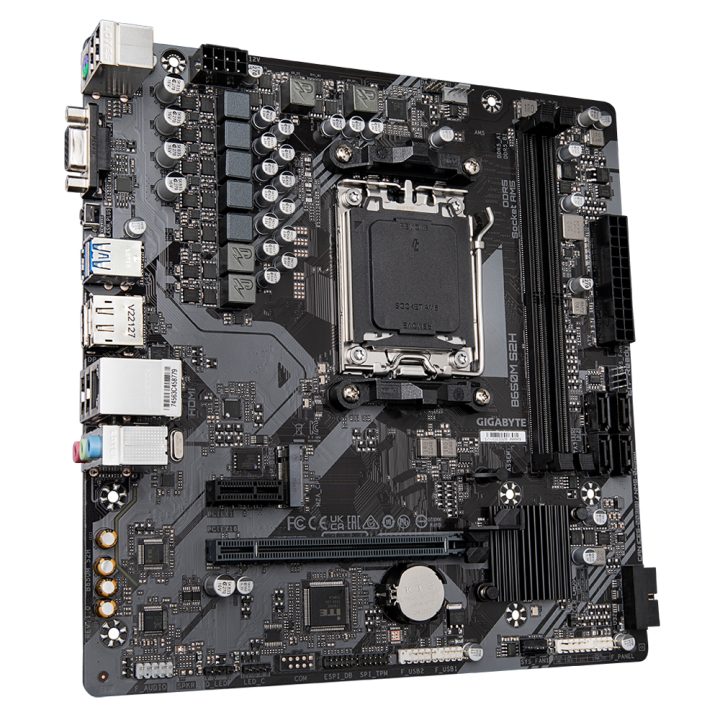

GIGABYTE B650M S2H Motherboard - AMD Ryzen 9000 Series, 5+2+2 Phase VRM, Up to 6400 MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB

The GIGABYTE B650M S2H is a Micro-ATX motherboard designed for AMD Ryzen 9000 series processors via its AM5 socket. It features an AMD B650 chipset and a 5+2+2 phase VRM power system. It supports DDR5 memory in two slots, reaching a maximum capacity of 128 GB and frequencies of up to 6400 MHz via overclocking.

Regarding connectivity and storage, it has one M.2 slot with a PCIe 4.0 interface and four SATA III connectors, supporting RAID 0, 1, and 10 configurations. It includes an HDMI video output and a Gigabit Ethernet network connection, although it does not integrate Wi-Fi. Its dimensions are 230 mm wide by 225 mm deep, with a weight of 0.003 kg and a brown finish.

• AM5 socket compatible with AMD Ryzen 9000 series
• Support for DDR5 memory up to 6400 MHz (OC)
• Micro-ATX format with 5+2+2 phase VRM
• Storage via 1 M.2 PCIe 4.0 slot and 4 SATA III ports
• Gigabit Ethernet network connectivity and HDMI output
