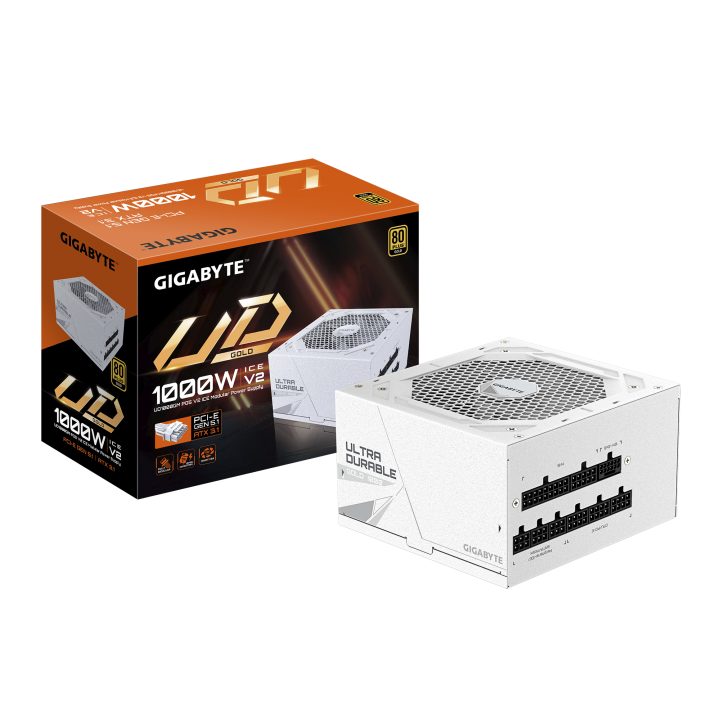

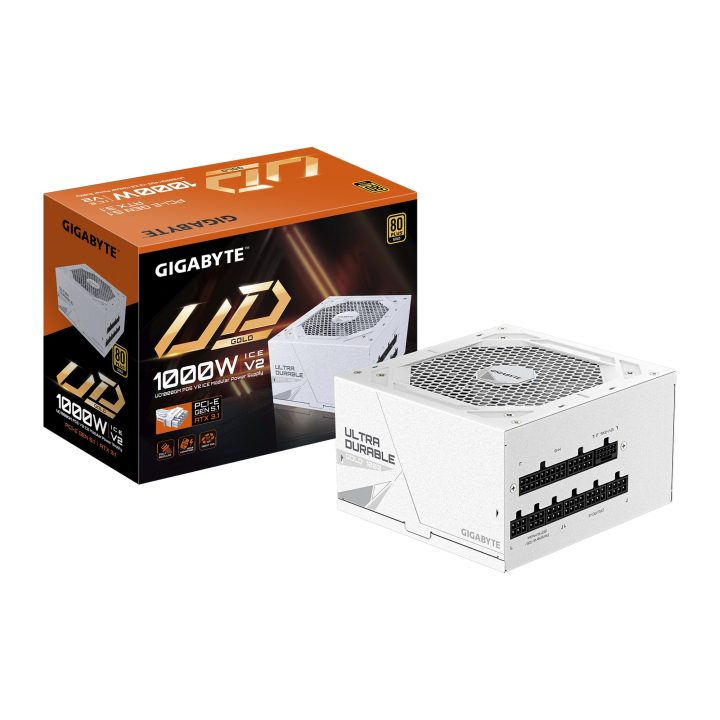

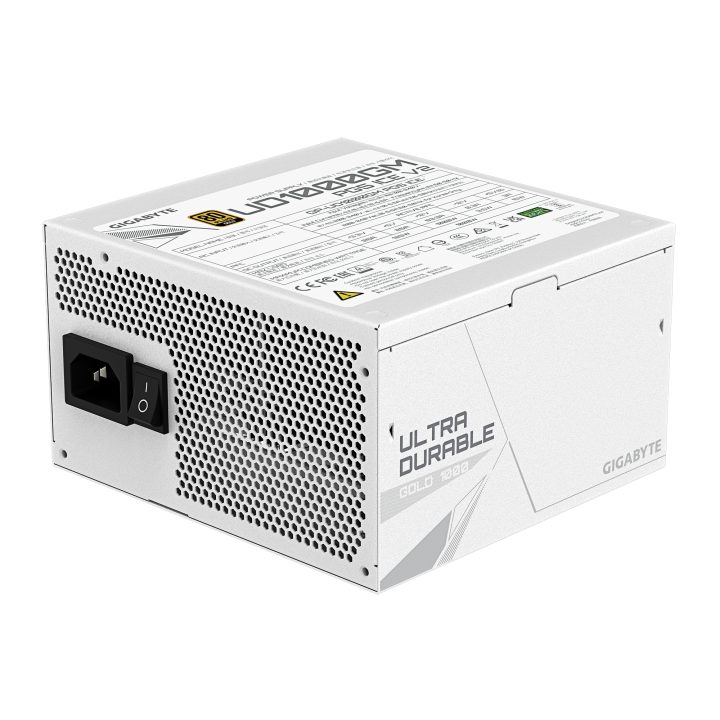

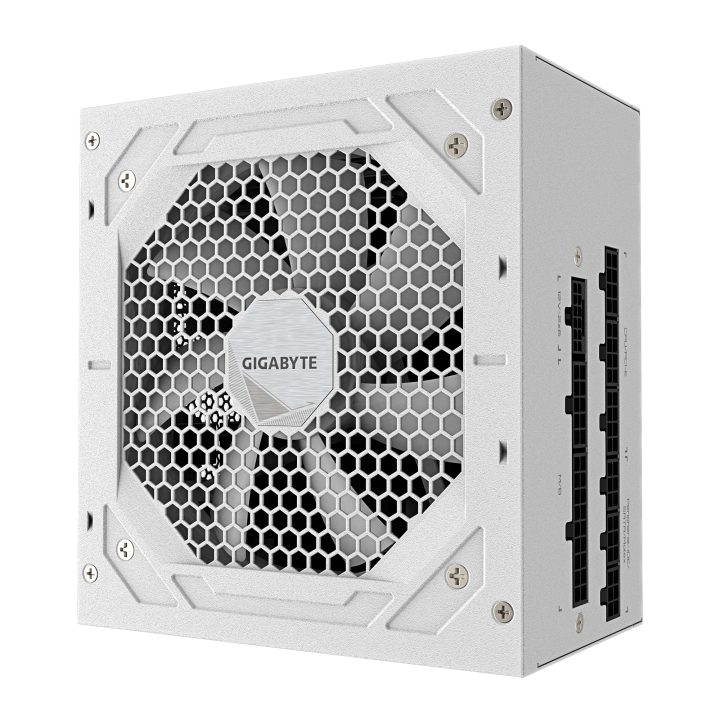

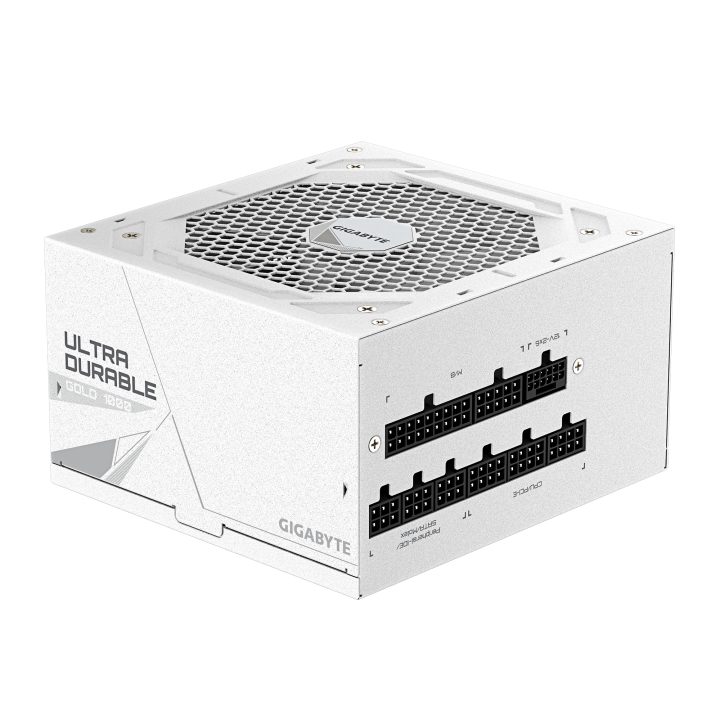

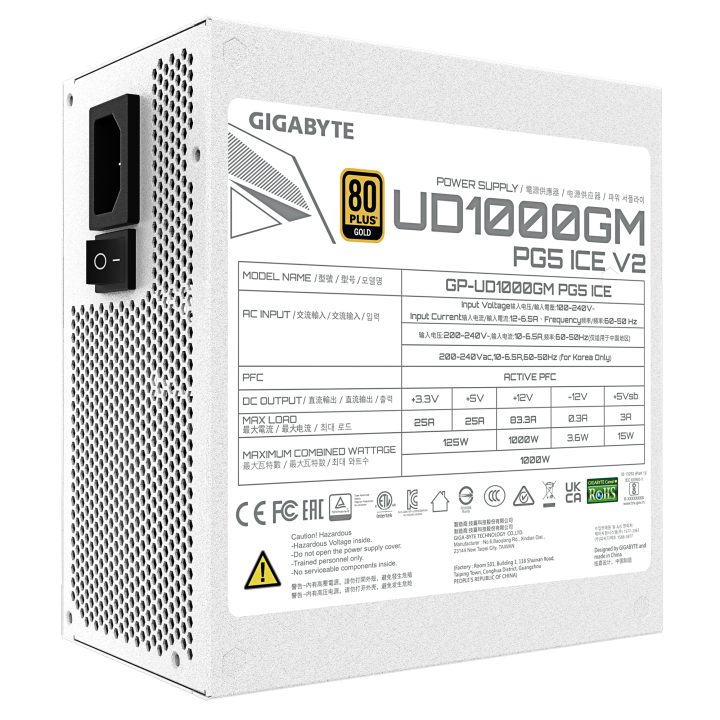

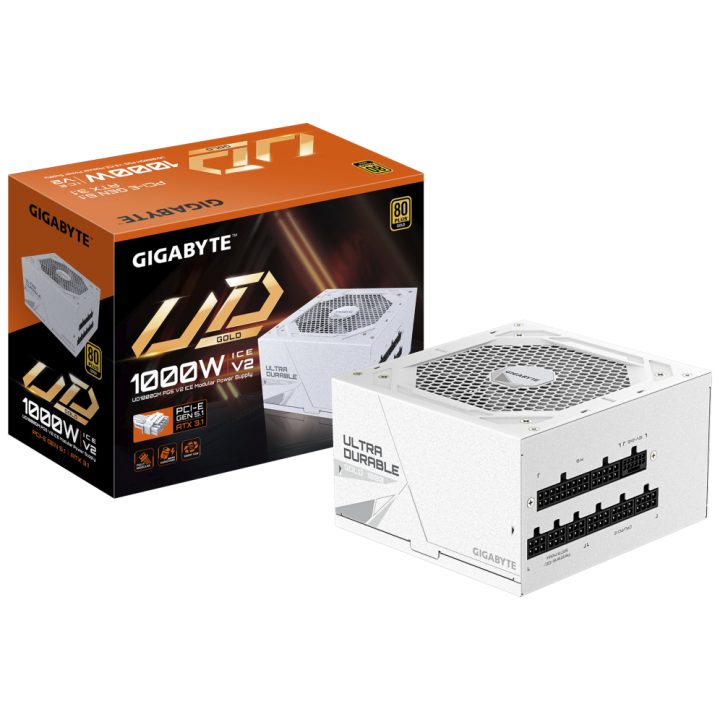

GIGABYTE UD1000GM PG5 V2 ICE Power Supply

The GIGABYTE UD1000GM PG5 V2 ICE is an ATX form factor power supply with a rated power of 1000 W. It features 80 PLUS Gold certification and complies with the ATX 3.1 version, delivering a current of 83.3 A on the +12 V rail. Its cabling system is fully modular, which facilitates cable management inside the computer case.

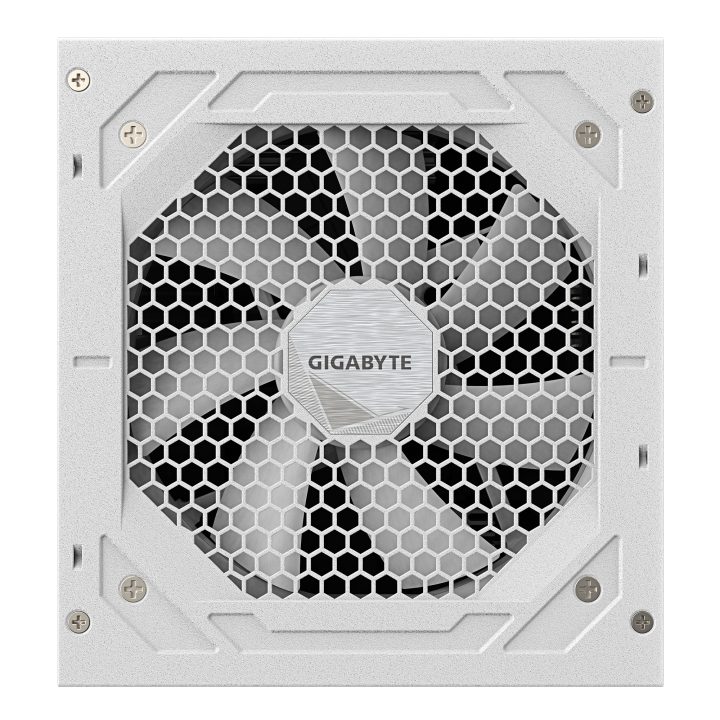

The device incorporates a 120 mm fan and active PFC. In terms of connectivity, it includes 4 PCIe 6+2 pin connectors and 8 SATA connectors. The unit features protections against overcurrent, overvoltage, overvoltage, overheating, short circuit, and undervoltage. Its dimensions are 150 mm wide, 86 mm high, and 140 mm deep, with a weight of 2.48 kg and a white finish.

• 1000 W power with 80 PLUS Gold certification
• Fully modular cabling for a clean installation
• Compatibility with ATX 3.1 version
• Includes 4 PCIe 6+2 pin connectors
• Integrated multiple protection system
