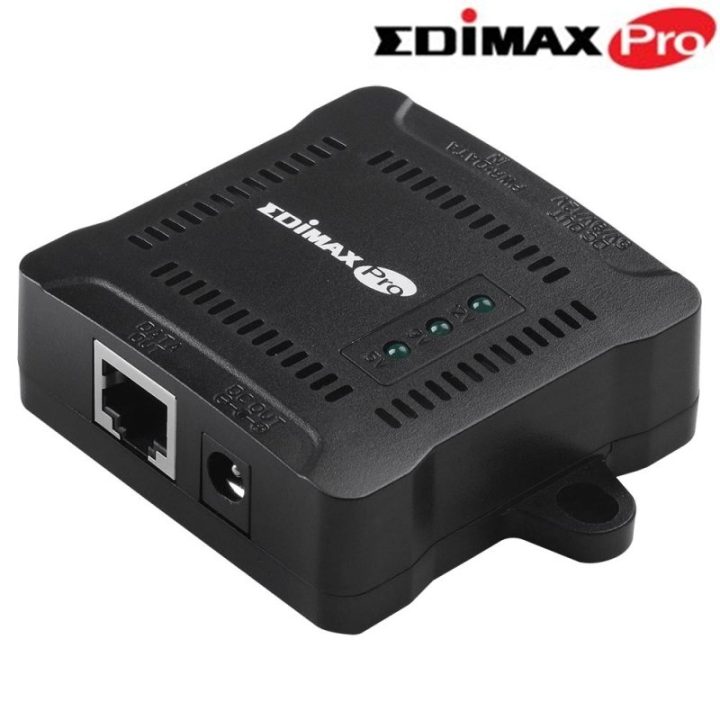

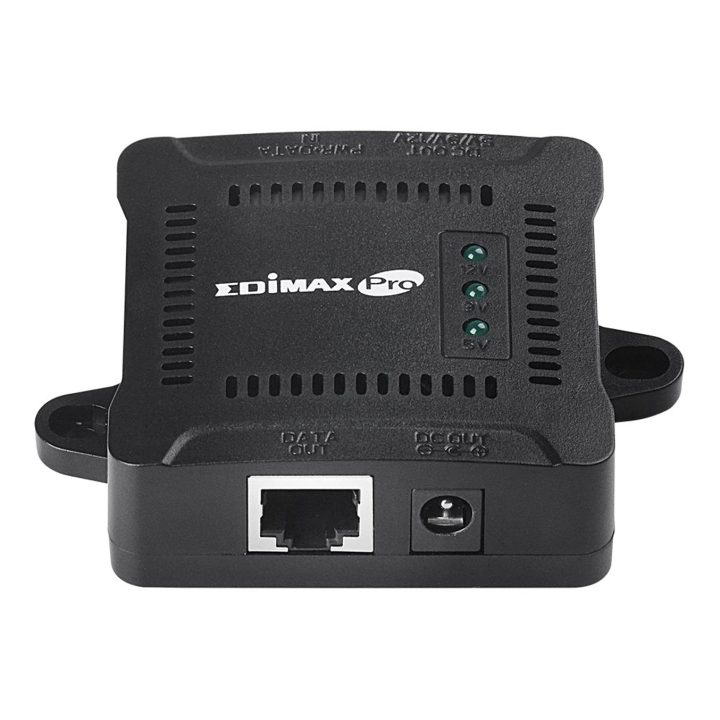

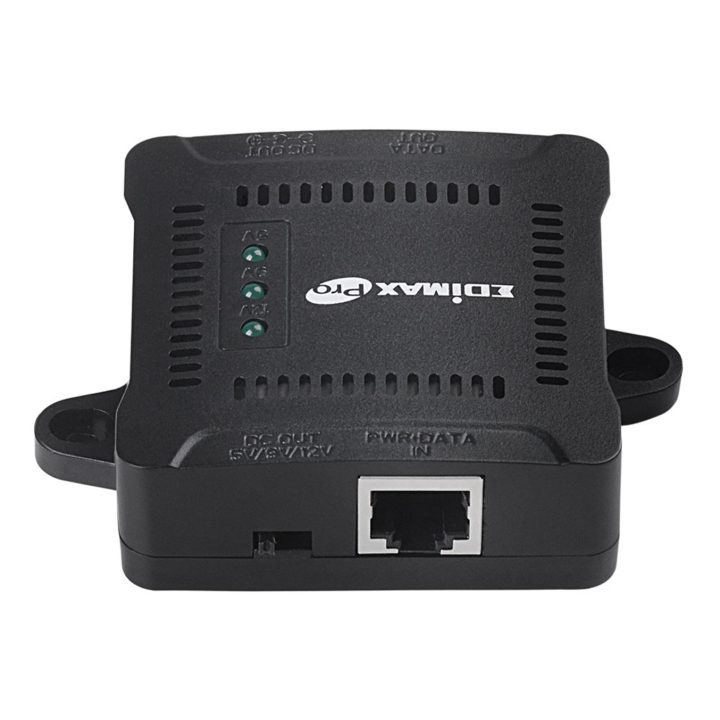

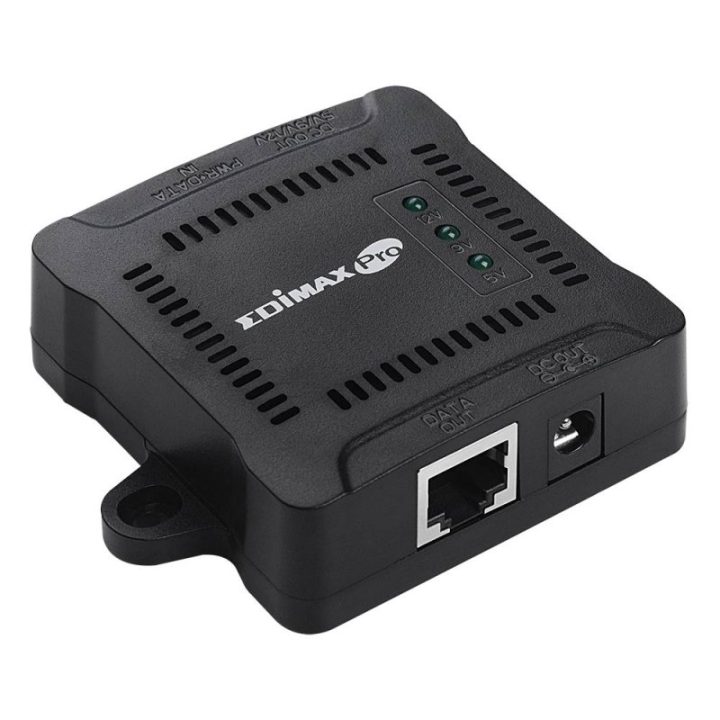

Edimax PRO PoE Splitter GP-101ST 5VDC 9VDC 12VDC

This network splitter allows you to extract electrical power from a PoE-compatible Ethernet cable to supply it to devices that do not natively support this technology. It features a slide switch that lets you select the output voltage between 5V, 9V, or 12V, all with a current of 2A, adapting to the power needs of the connected equipment.

The device has one input port and one output RJ-45 Gigabit port (10/100/1000Base-T), maintaining data connectivity while distributing power. It is compatible with the IEEE 802.3af and 802.3at standards. It includes a Y-cable with DC pin connectors of 5.5 x 2.1 x 9.5 mm and 3.5 x 1.35 x 11 mm, with configurable pin assignment for modes A and B. Its dimensions are 63 × 64 × 23 mm and it weighs 65 g.

• Input and output Gigabit RJ-45 ports
• Selectable DC output between 5V, 9V, or 12V at 2A
• Compatible with IEEE 802.3af and 802.3at standards
• Includes Y-cable with DC pin connectors
• Pin configuration for Mode A and Mode B
