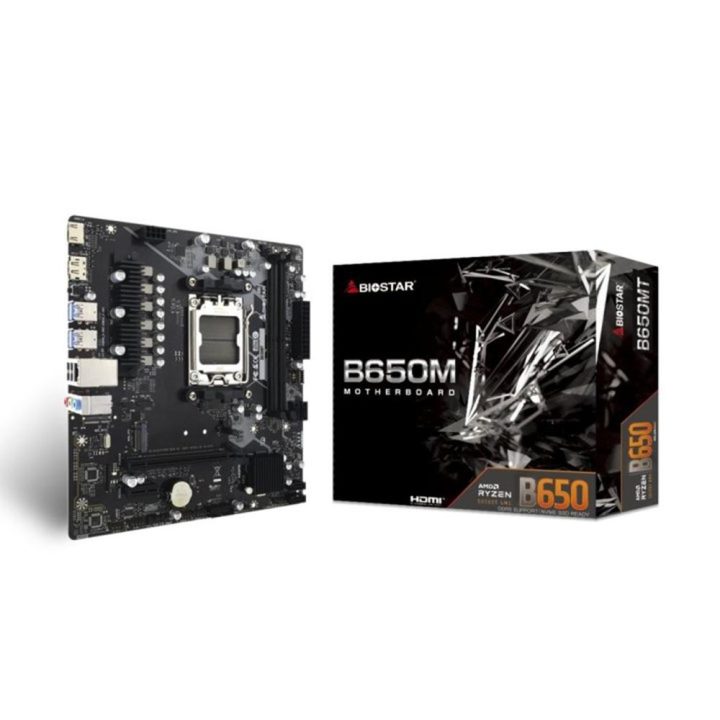

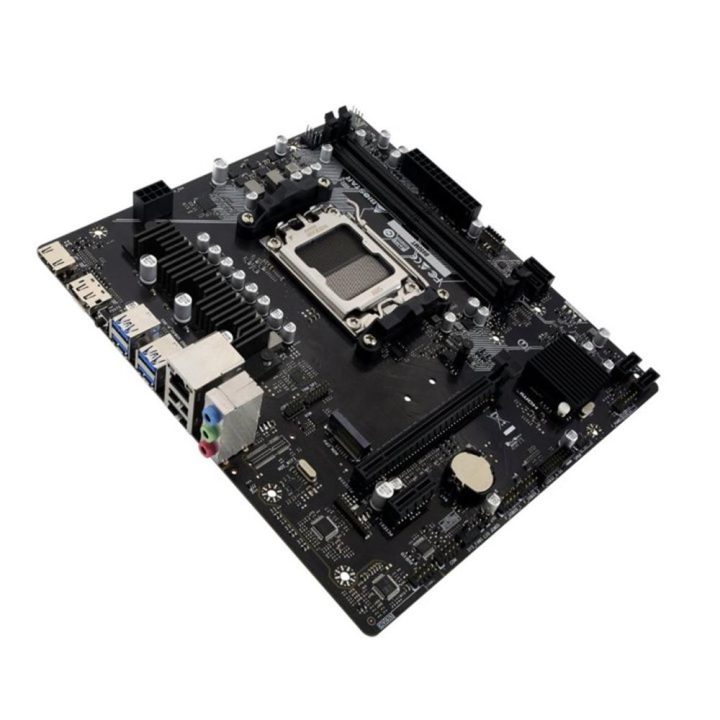

Biostar B650MT DDR5 Micro-ATX AM5 Motherboard

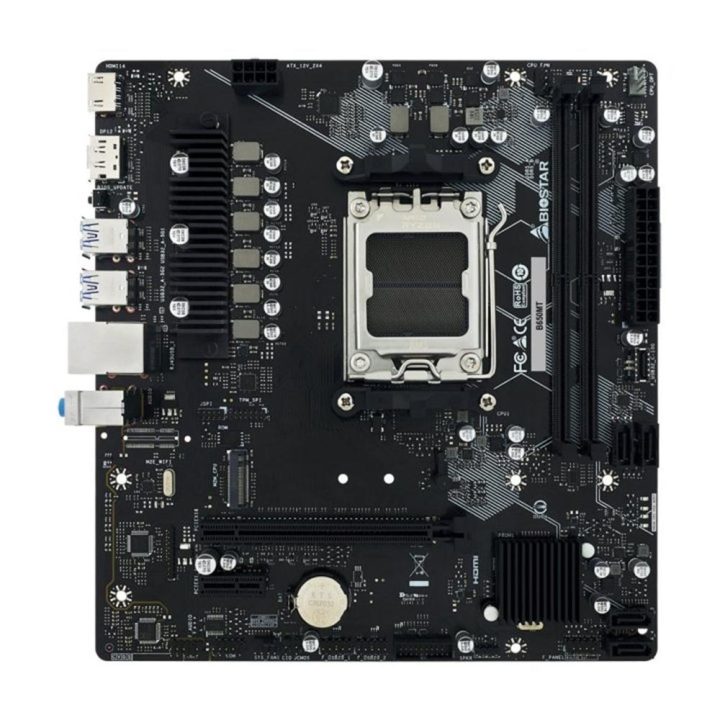

The Biostar B650MT motherboard is a Micro-ATX component designed for AMD processors with the AM5 socket. It features the AMD B650 chipset and offers support for DDR5 memory in a Dual Channel configuration, supporting speeds of up to 6000 MHz and a maximum capacity of 96 GB distributed across two DIMM slots. Its dimensions of 221 mm in width and 235 mm in depth allow for installation in compact cases.

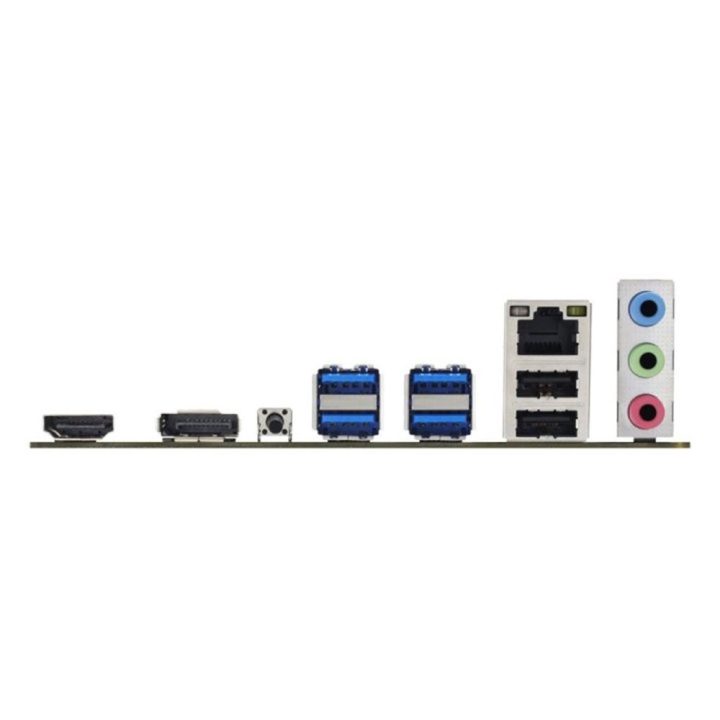

Regarding connectivity and expansion, it includes one PCIe x16 Gen 4.0 slot, one PCIe x1 Gen 3.0 slot, and an M.2 port for storage, in addition to four SATA III connectors. Video output is managed via HDMI 1.4 and DisplayPort 1.2 ports, with a maximum resolution of 4096 x 2160 pixels. It integrates a Realtek RTL8111H Gigabit Ethernet network controller and 7.1-channel audio with the Realtek ALC897 chip. The rear panel includes four USB 3.2 Gen 1 ports and two USB 2.0 ports, while the internal headers add additional USB and fan connectors.

• AMD B650 chipset with AM5 socket for AMD processors
• Support for DDR5 Dual Channel memory up to 96 GB
• Micro-ATX format with dimensions of 221 x 235 mm
• PCIe x16 Gen 4.0 slot and M.2 port for storage
• HDMI 1.4 and DisplayPort 1.2 video outputs
• Gigabit Ethernet network and 7.1-channel audio
