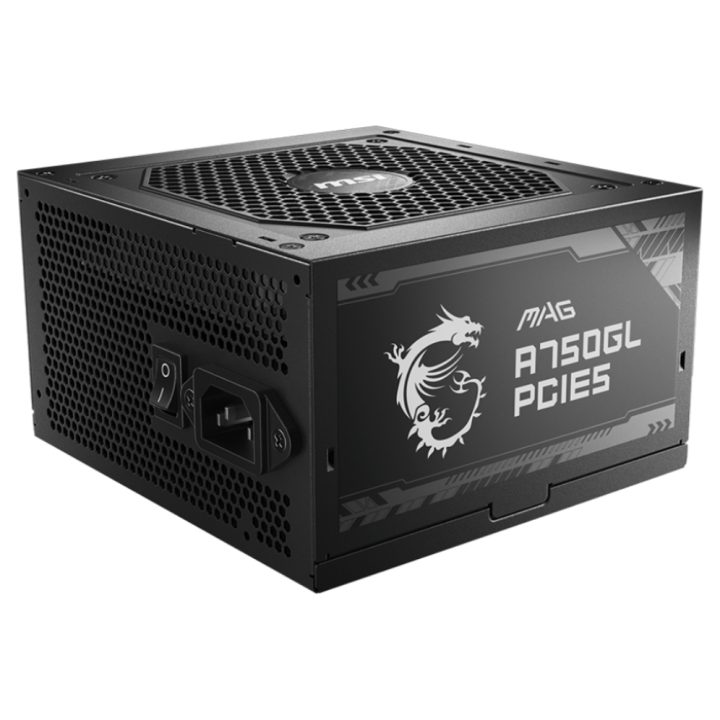

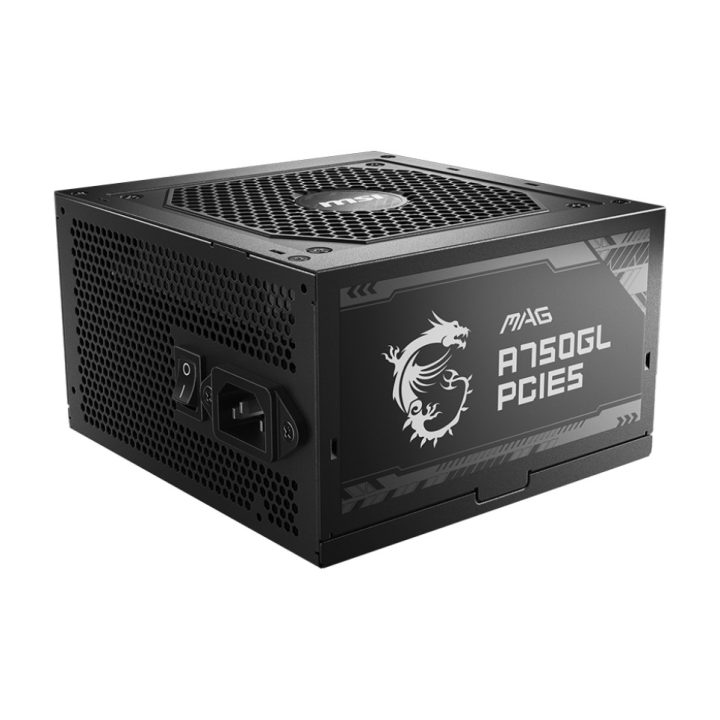

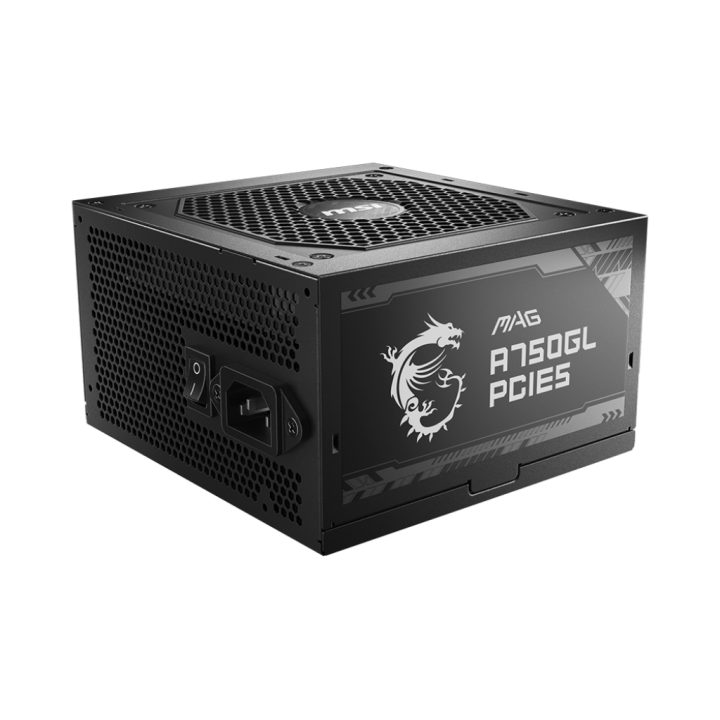

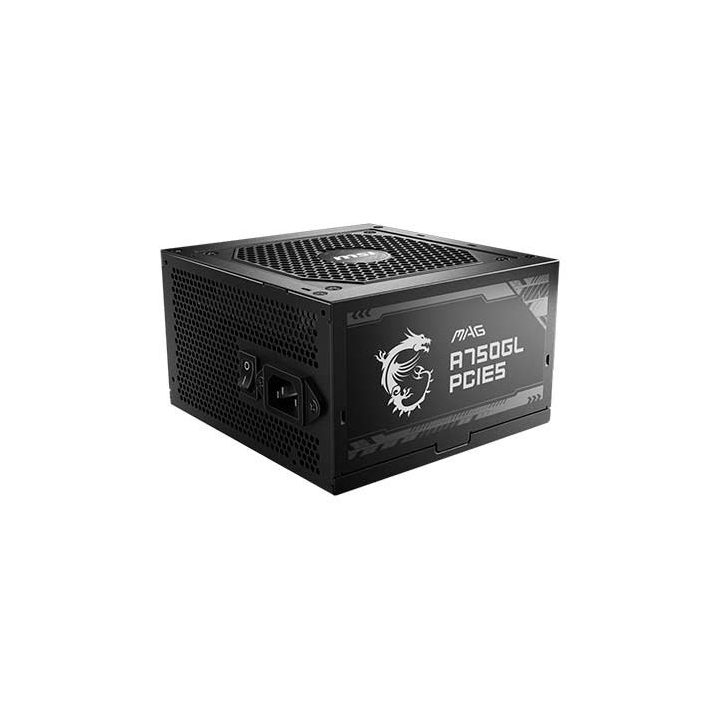

MSI MAG A750GL PCIE5 Power Supply Unit 750 W 20+4 pin ATX ATX Black

The MSI MAG A750GL PCIE5 is a 750 W power supply designed for desktop systems, featuring 80 PLUS Gold certification and ATX 3.1 form factor. Its fully modular cabling allows for efficient cable management inside the case, while its 120 mm fan provides active cooling. The device operates with an input voltage range of 100 to 240 V and a frequency of 47 to 63 Hz.

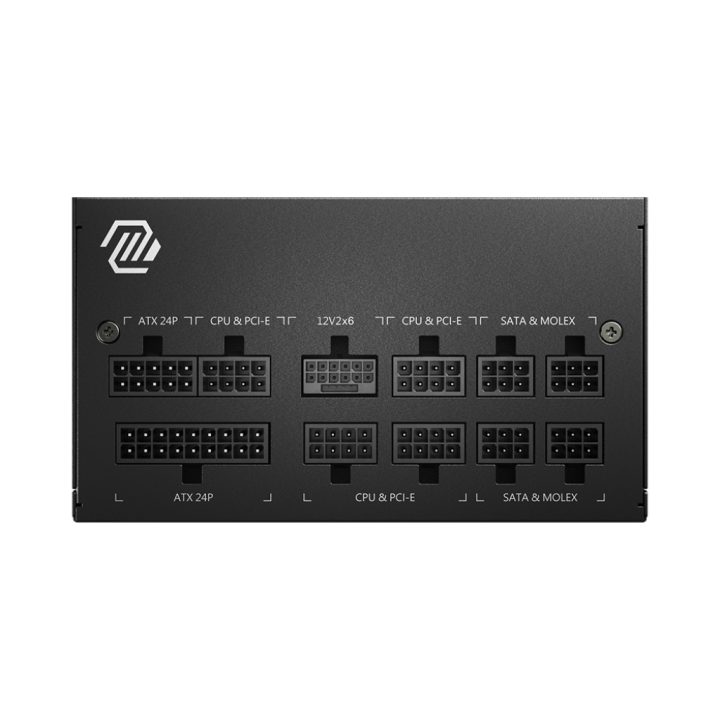

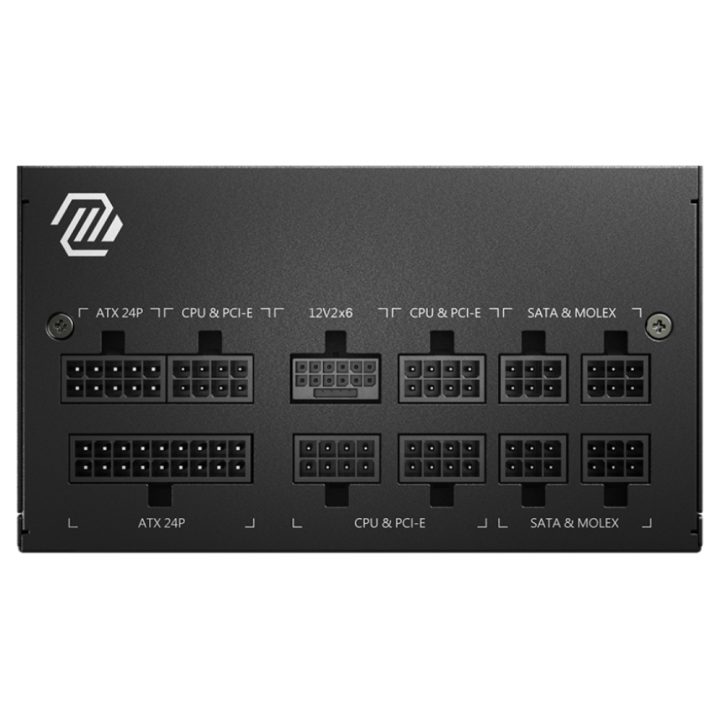

This model includes a 20+4 pin main connector for the motherboard, three 6+2 pin PCIe connectors, and eight SATA connectors. The maximum current on the +12 V rail reaches 62 A, supported by active PFC. The chassis dimensions are 150 mm wide, 86 mm high, and 140 mm deep. It incorporates protections against overcurrent, overvoltage, overvoltage, overheating, and short circuit to ensure system stability.

• 750 W power with 80 PLUS Gold certification
• ATX 3.1 form factor with fully modular cabling
• Three 6+2 pin PCIe connectors and eight SATA

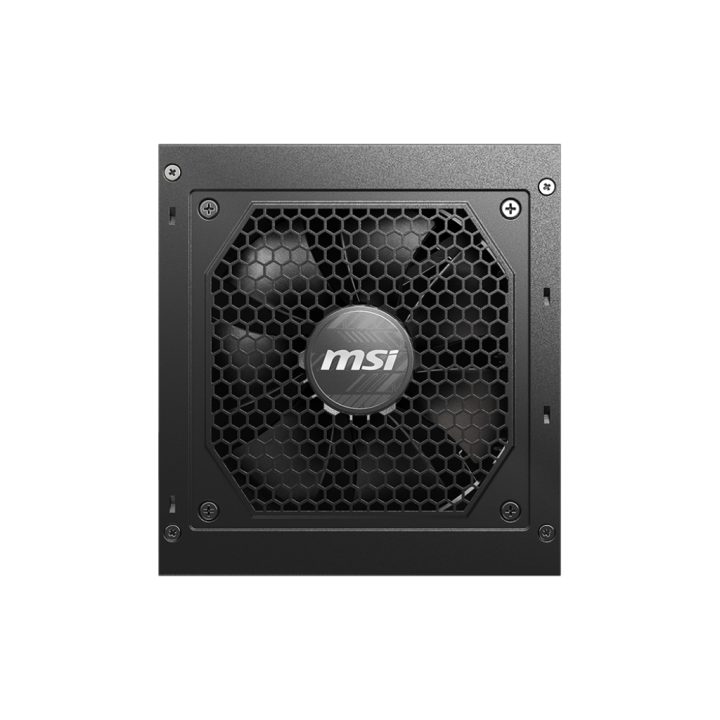

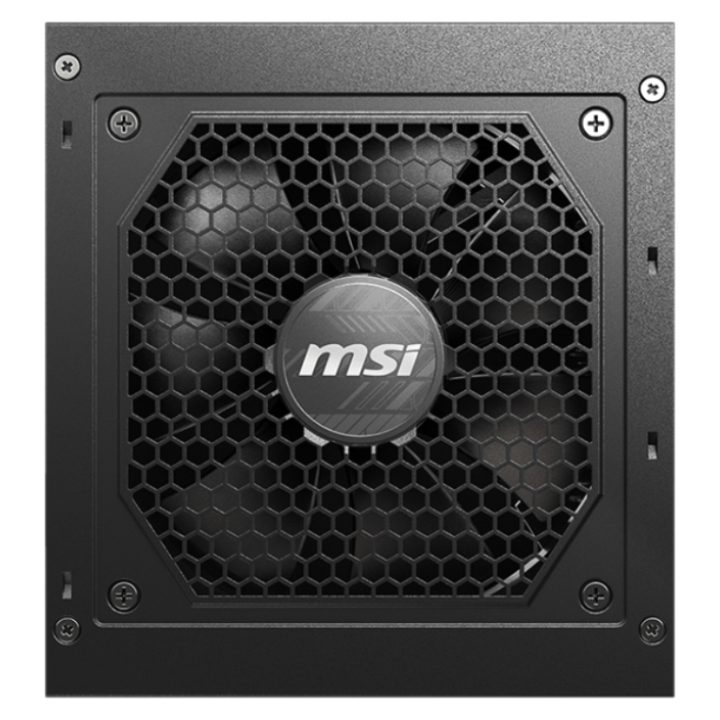

• 120 mm fan with active cooling
• Protections against overload, overvoltage, and short circuit
